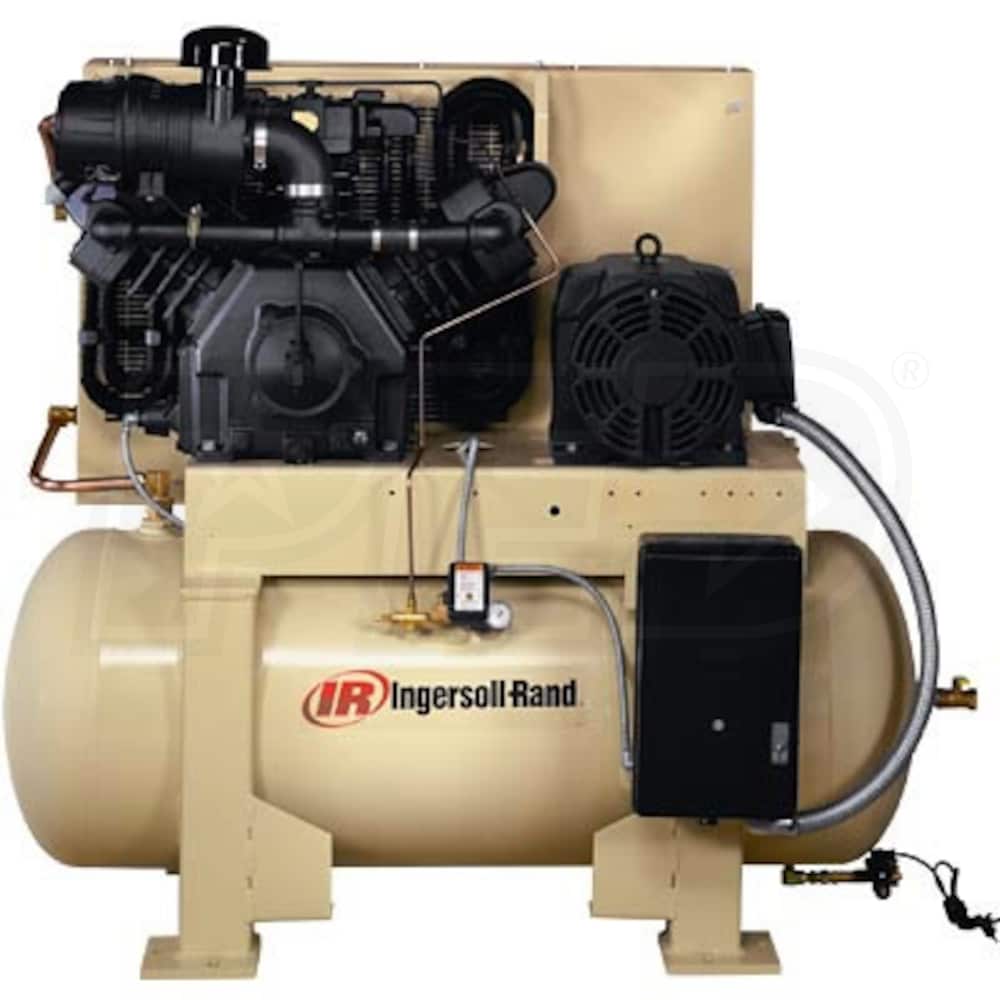

Ingersoll Rand 25-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Fully Packaged

Model:

2000E25-FP

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ingersoll Rand 25-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Fully Packaged
Ingersoll Rand 25-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Fully Packaged
Model: 2000E25-FP
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

82

Tank Size

120

  • Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings
  • Electronic Drain Valve
  • Automatically drains water condensation
  • Helps reduce water vapor in air system
  • Prevents tank from rusting from the inside
  • High Dust Filter System
  • Suitable for shops with high dust areas
  • Low Oil Protection Switch
  • Protects compressor pump from damage
  • Air Cooled Aftercooler
  • Reduces discharge air temperature and condensation
  • E-Series Starter
  • Protects motor from thermal overload or low voltage damage
  • OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Special Order
  • Please allow 8 weeks for delivery
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2000E25-FP
specs product image PID-710
Engine
HP
25
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
82
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Overview
Weight
2050 Pounds
Certification
UL/CSA/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
45 Inches
Product Height
67 Inches
Power Type
Electric
