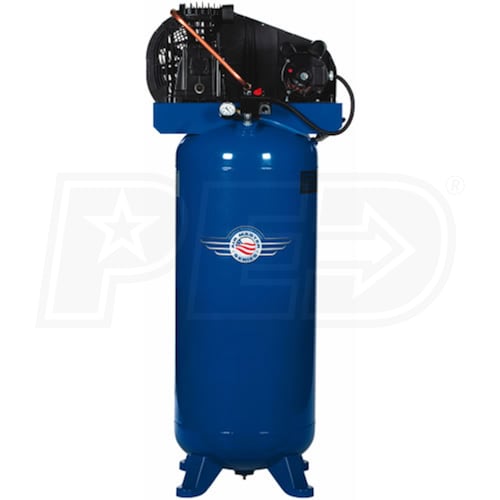

Quincy Air Master 3.5-HP 60-Gallon (Belt Drive) Single Stage Cast-Iron Air Compressor
Model:
Q13160V
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
14.6
Tank Size
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Perfect For Commercial Or Do It Yourself Applications
- Sturdy reliability that lasts and lasts
- Cast Iron Cylinder, Crankshaft, & Valve Plate
- Strong & durable single stage compressor
- Aluminum Head & Special Fin Design
- Help dissipate heat; keeps compressor running cool
- Running cooler lets the unit last longer
- Start-Stop Pressure Switch
- Automatically starts the compressor when system pressure drops
- Develops 14.6 CFM @ 40 PSI; 12.4 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- 100% factory tested at full pressure
- Easy To Maintain
- Shipped with 40-weight lubricant
- Fully enclosed belt guard protects you & the belt
- Easy-access manual drain
- American Pride
- Quincy has been building compressors in the USA for over 90 years
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Q13160V
Engine
HP
3.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Recommended Breaker
30 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.6
CFM Rated @
40 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
261 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
22 Inches
Product Height
68 Inches
Power Type
Electric
