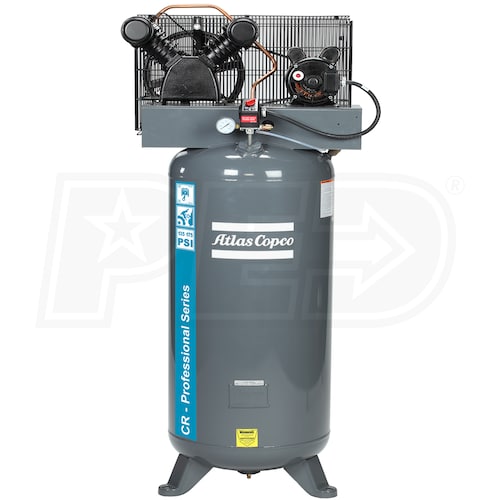

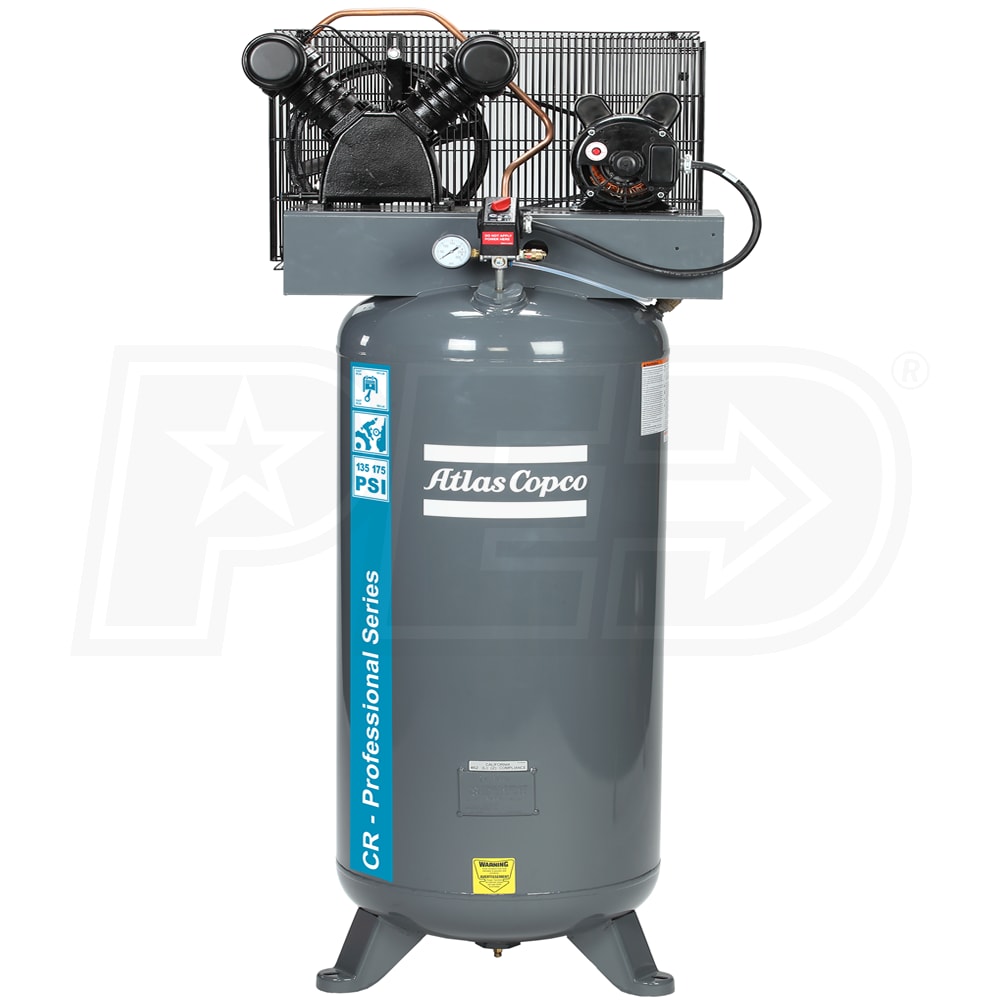

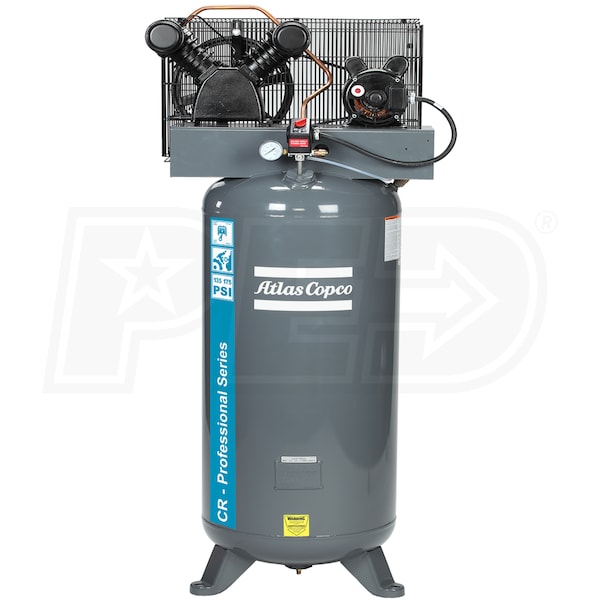

Atlas Copco CR3-SS Contractor 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)

Model:

2020040080

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Atlas Copco CR3-SS Contractor 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Atlas Copco CR3-SS Contractor 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Model: 2020040080
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Single Stage 1-Phase

CFM

9.1

Tank Size

60

  • Newly Designed Single-Stage CR Contractor Series
  • Provides affordable compressed air in a small, lightweight package
  • Perfect for contractors, automotive shops and light manufacturing
  • Splash Lubricated Cast Iron Pump
  • Oil sight gauge simplies readings
  • More durable & longer service life than aluminum pumps
  • Minimizes vibration, improves cooling, extends compressor life
  • Belt Drive w/ Heavy Gauge Wire Belt Guard
  • Provides more power, easy to maintain
  • Fully enclosed belt guard and ASME safety valves
  • Durable ODP Single-Phase Motor
  • Runs cooler to prevent overheating
  • Open drip proof motors tend to be slightly more efficient because windings are cooler
  • Full Cast-Iron Construction
  • Can handle the most demanding conditions
  • Ensures durability and reliability for the most demanding applications
  • 60-Gallon ASME Air Tank w/ Front Mounted Controls
  • Large pressure gauge so you can check tank & tool pressure at a glance
  • Air pressure switch allows air compressor to run at its most efficient capacity with on/off button
  • Standard 2-Year Bumper To Bumper Warranty
  • No start-up kit required
  • Covers defect in materials & workmanship
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2020040080
specs product image PID-105028
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
9.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
140 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
260 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
28 Inches
Product Width
23 Inches
Product Height
67 Inches
Power Type
Electric
