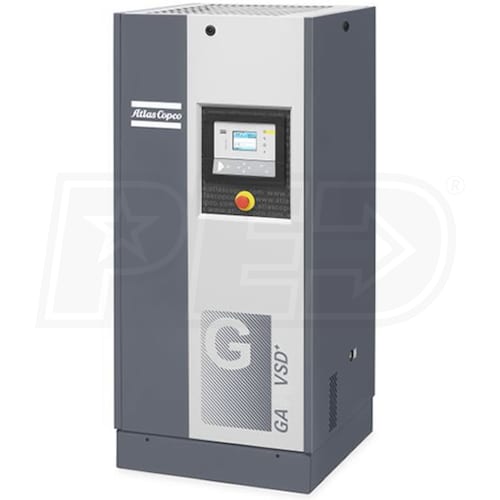

Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor (200V 3-Phase)

Model:

8153038156

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor (200V 3-Phase)
Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor (200V 3-Phase)
Model: 8153038156
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

68.8

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Tropical Thermostat May Be Required If Unit Is Used In The Following States:
  • Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
  • Please Contact Us Directly At 866-437-8002 For Assistance

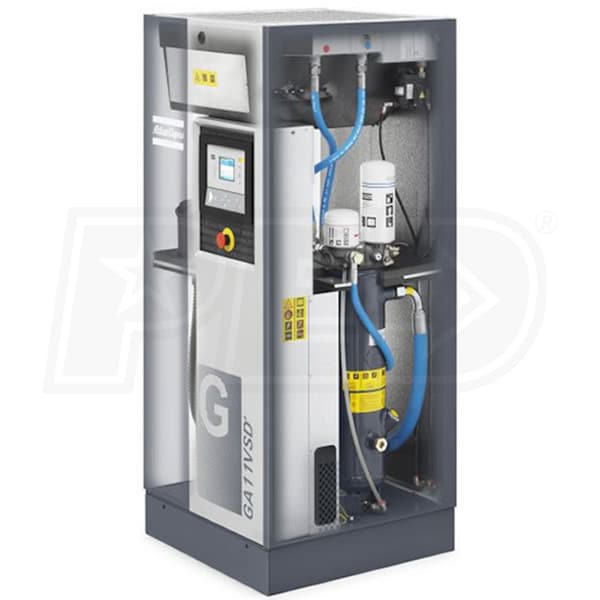

  • Innovative Vertical Design
  • iPM Permanent Magnet technology delivers variable speed savings
  • Up to 96.8% motor efficiency- 50% more efficient than other models
  • Delivers 15.5-69.7 CFM @ 80 PSI; up to 49.8 CFM @ 181 PSI
  • Direct Drive Between Element & Motor
  • No gears or belts to adjust reduces downtime (see Warranty for details)
  • Consistent air delivery from very low to very high demand
  • Innovative Top-Mounted Fan
  • Vents heat from the enclosure; allows space-saving placement against a wall
  • Workspace can be located close to the extremely quiet, 62dBA unit

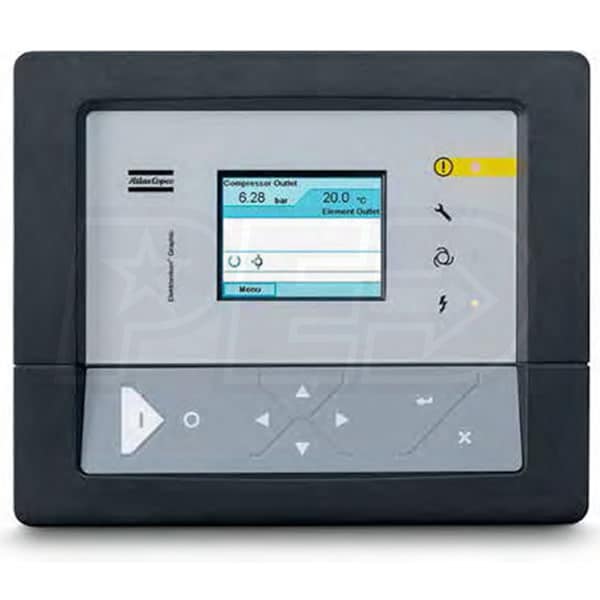

  • Elektronikon Graphic Display Controller
  • Smart algorithms reduce system pressure & energy consumption
  • Manually or automatically create 2 different usage programs to reduce costs
  • Displays for online status, warnings, program, & maintenance schedule
  • Redesigned VSD+ Cubicle
  • 50% smaller footprint enables optimal compressor placement
  • Aftercooler-mounted electronic drain reduces maintenance
  • Averages 50% Energy Savings
  • No wasted idling time; eliminates peak current penalty during startup
  • No-Cost Start-Up For This Unit Is Provided By Atlas
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

8153038156
specs product image PID-15838
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
68.8
CFM Rated @
102 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
692 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers

GA11VSD-175-AP-200-3-60, 8153038156
