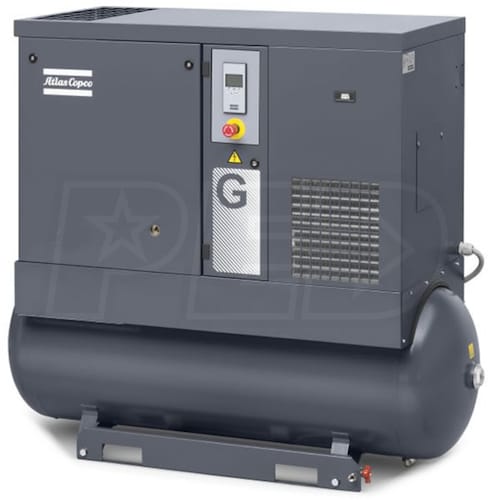

Atlas Copco G11 15-HP 120-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)

Model:

8153290864

Recommended
Write A Review
$14,344.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks

Atlas Copco G11 15-HP 120-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Atlas Copco G11 15-HP 120-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 8153290864
$14,344.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

53.8

Tank Size

120

  • Tropical Thermostat May Be Required If Unit Is Used In The Following States:
  • Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
  • Please Contact Us Directly At 866-437-8002 For Assistance
  • Latest Generation Oil-Injected G Series
  • Ideal for small to medium businesses; quiet 68 dBA performance doesn't require separate compressor space
  • Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
  • Full Featured Package With Built-In Refrigerant Dryer
  • Cools the compressed air & removes moisture, preventing rust damage to piping & tools
  • Advanced BASE Electronic Controller
  • Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
  • Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
  • Robust & Efficient Belt-Driven Rotary Compression Element
  • Increases free air delivery by up to 3% compared to previous models
  • IP55 (TEFC) Motor
  • Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
  • Load / No Load Control
  • Controller automatically switches for high, low, and intermittent air consumption
  • Saves power & improves reliability; delivers 53.8 CFM at 125 PSI; maximum of 125 PSI
  • Versatile
  • Meets ISO 9001, ISO 14001 & ISO 1217 which insures a reliable, trouble-free air compressor
  • 120-gallon ASME air receiver has a 1/2-inch NPT air outlet; integrates easily with your equipment
  • Air-Oil Separator & Inlet Air Filter
  • 2-step separator system reduces oil consumption & protects lubrication quality
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

8153290864
specs product image PID-71239
General Information
Product Category
Air Compressor - Stationary
Engine
HP
15
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
53.8
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1072 Pounds
Certification
NEMA, IEEE, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
77 Inches
Product Width
26 Inches
Product Height
58 Inches
Power Type
Electric
