Atlas Copco G15L 20-HP Tankless FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model:
8153335803
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
82
- Tropical Thermostat May Be Required If Unit Is Used In The Following States:
- Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
- Please Contact Us Directly At 866-437-8002 For Assistance
- Latest Generation 20-HP Tankless Oil-Injected G Series
- Ideal for small to medium businesses
- Quiet performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Larger Drivetrain, More Energy Saving & Higher Air Flow Rate
- Produces 82 CFM @ 125 PSI; Maximum 125 PSI
- 100% continuous duty cycle for reliable operation
- Meets ISO 9001, ISO 14001 & ISO 1217 which ensures a trouble-free air compressor

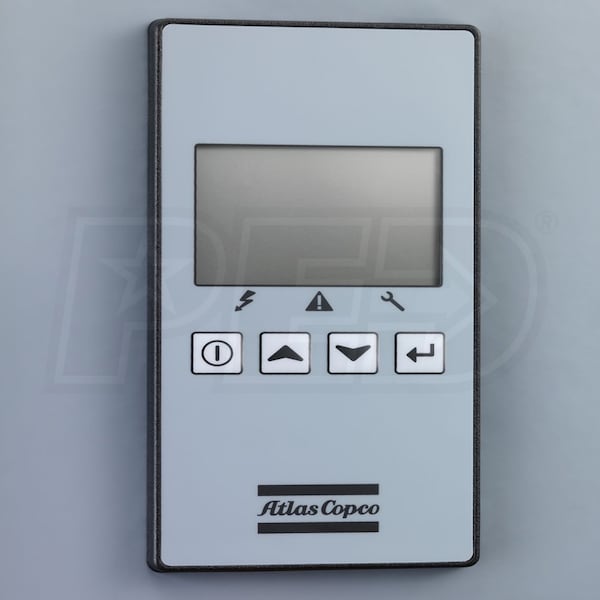

- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature

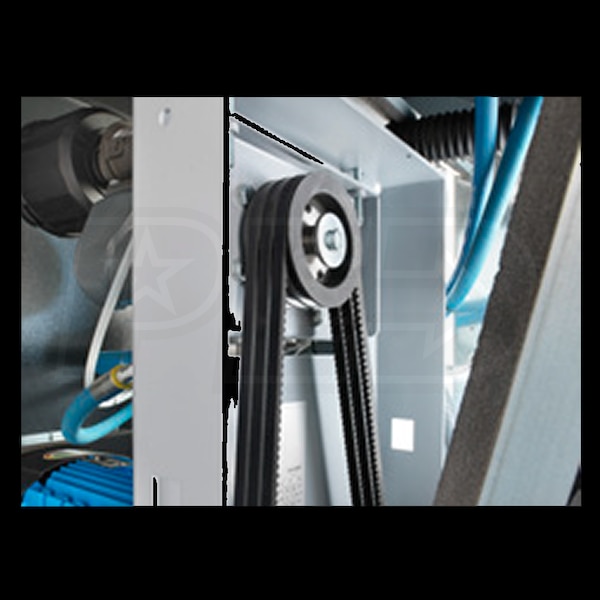

- Robust & Efficient Belt-Driven Rotary Compression Element
- Reduced noise levels and low vibration
- Full sound enclosures which reduce the sound levels
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Saves power to reduce energy cost and improves reliability
- Automatically switches for high, low, and intermittent air consumption
- Full Featured (FF) Package With Built-In Refrigerant Dryer
- In-line air filters delivers improved air quality
- Cools the compressed air and removes moisture, preventing rust damage to piping & tools
- Spin-On Oil Separator & Oil Filter
- Designed to be easily changed and maintained
- 2-step separator system reduces oil consumption & protects lubrication quality
- 1 Year Bumper-to-Bumper
- Plug and play installation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
8153335803
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
82
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Filter
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
818 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
33 Inches
Product Height
48 Inches
Power Type
Electric
