Features
Style
Refrigerated
Air Dryer CFM
35
- Elimates Water & Reduces Humidity In Your Air Lines
- Dry air helps tools & machinery run efficiently & last longer
- Can Be Placed Before Or After The Tank
- Usually placed upstream to dry air in the entire system
- For best results place between the compressor & tank
- Easy To Install
- Needs only 115 volt, single phase power; connects to 1/2" NPT
- Compact Design
- Weighs only 62 pounds & takes up only 15" x 20" x 19"
- 41°F Outlet Pressure Dew Point
- Maximum inlet temperature 130°F; pressure 232 PSIG
- Suited for ambient temperatures from 34°F to 130°F
- Moisture Separator & Automatic Drain Valve
- Timer on the drain for effortless maintenance
- Simple Controls
- Easy to set up and use
- 1 Year Factory Warranty
- Extends to 2 years with purchase & use of 1UF filter at inlet
Specifications
ACCRD-35-1-115
Air Dryer
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
35
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
130
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
130
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
No
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Weight
795 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
15 Inches
Product Width
20 Inches
Product Height
19 Inches
Reviews
C-Aire ACCRD-35-1-115 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
ACCRD-35-1-115
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

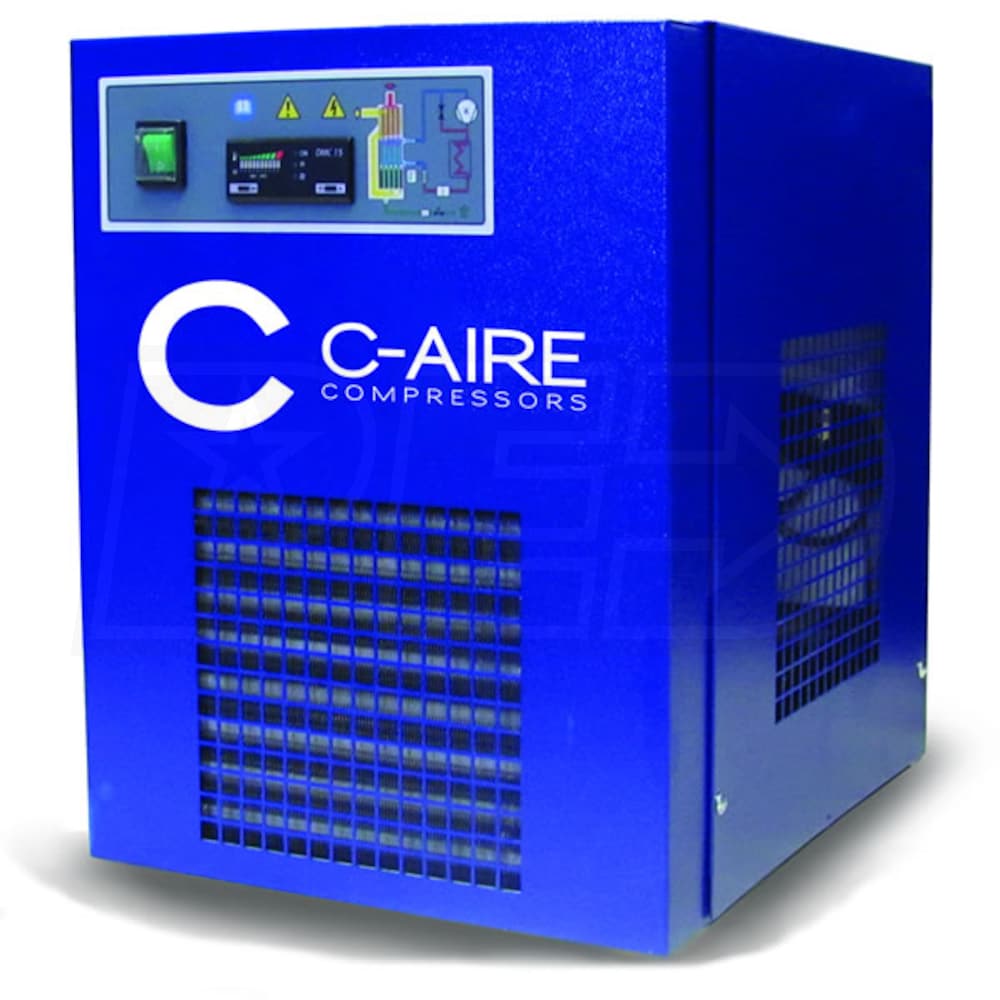

C-Aire Refrigerated Air Dryer (35 CFM)
