California Air Tools SP Ultra Quiet & Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet (No External Controls)

Model:

CAT-10020DSPC

Write A Review
$2,730.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools SP Ultra Quiet & Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet (No External Controls)
California Air Tools SP Ultra Quiet & Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Sound Proof Cabinet (No External Controls)
Model: CAT-10020DSPC
$2,730.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Single Stage 1-Phase

CFM

5.3

Tank Size

8



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

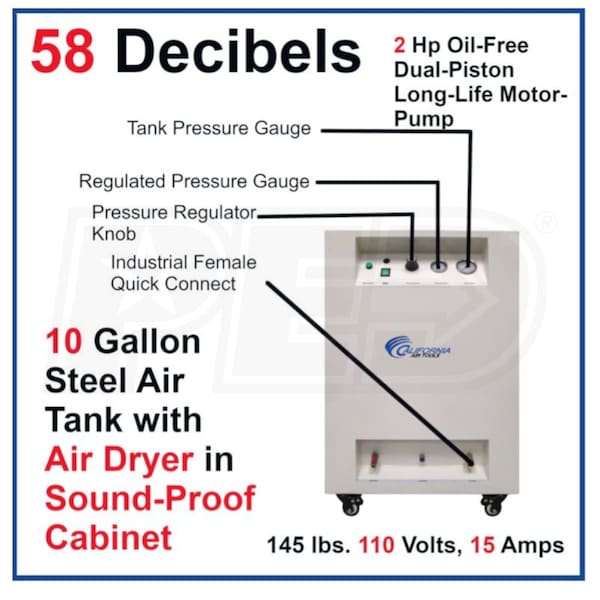

  • 2-HP 10-Gallon Air Compressor In A Sound Proof Cabinet
  • 58 dBA is ideal for indoor use where noise is an issue
  • Powerful 2-HP SP-Series 110V Motor
  • Low 1680 RPM creates less noise & wear; low 14 Amp draw
  • Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 130 PSI maximum
  • Minimum pump life of 3000 hours before service; 30% more life before repair
  • 1/4" air outlet with quick connector for fast tool changes
  • Dual gauges so you can check tank & tool pressure at a glance
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 260 Seconds
  • Recovery time from 100 PSI to 130 PSI - 70 Seconds
  • 10 Gallon Steel Air Tank
  • Kick-on pressure 118 PSI; kick-off pressure 130 PSI
  • Tank, compressor, & cabinet together weigh 221 pounds

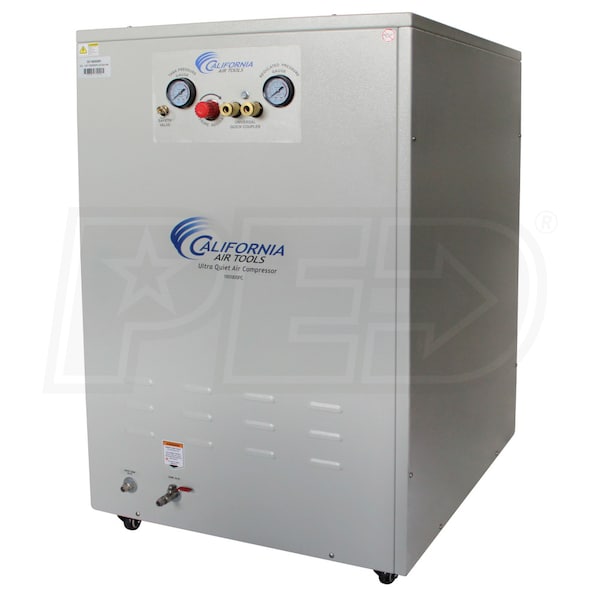

  • Large Steel Cabinet With Caster Wheels
  • Exhaust fans keep compressor cool; air is regulated from inside the cabinet only
  • 2 latching doors provide easy access to the compressor

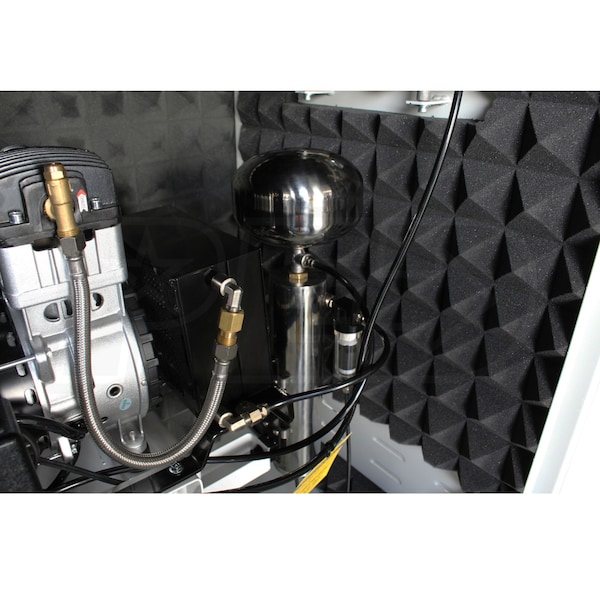

  • Air Dryer With 4000 Hour Activated Alumina Desiccant
  • Aftercooler cools the air, pushes moisture to the air dryer for evaporation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-10020DSPC
specs product image PID-70295
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
130 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
190 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21 Inches
Product Width
26 Inches
Product Height
32 Inches
Power Type
Electric
UPC
743369710295
