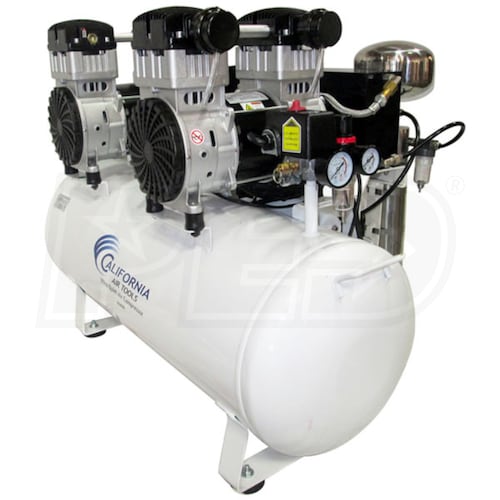

California Air Tools SP Ultra Quiet & Oil-Free 4-HP 20-Gallon Duplex Air Compressor w/ Dryer (220V 1-Phase)
Model:
CAT-20040DC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
10.6
Tank Size
20
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Powerful 4-HP SP-Series 220-Volt 1-Phase Motor
- Low 1680 RPM creates less noise & wear
- 75 dBA is ideal for indoor use where noise is an issue

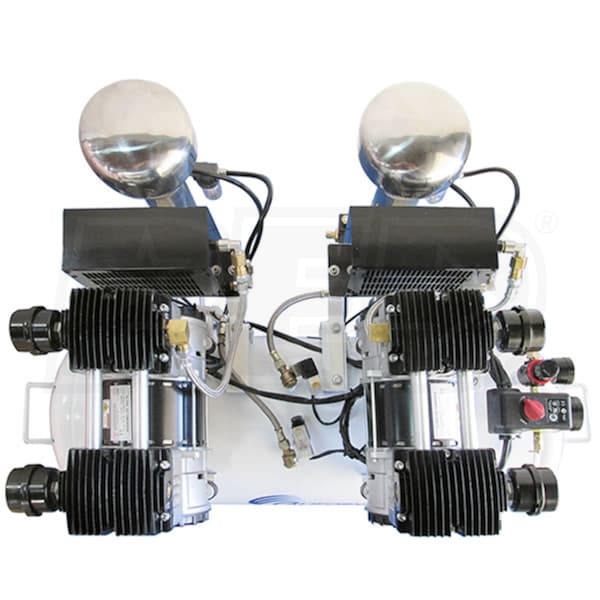

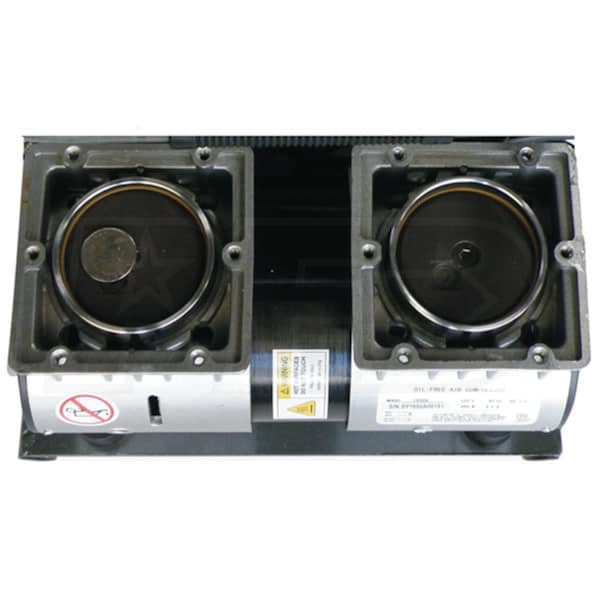

- Oil-Free Dual Piston Pump System
- 12.8 CFM @ 40 PSI; 10.6 CFM @ 90 PSI; 125 PSI maximum
- Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less

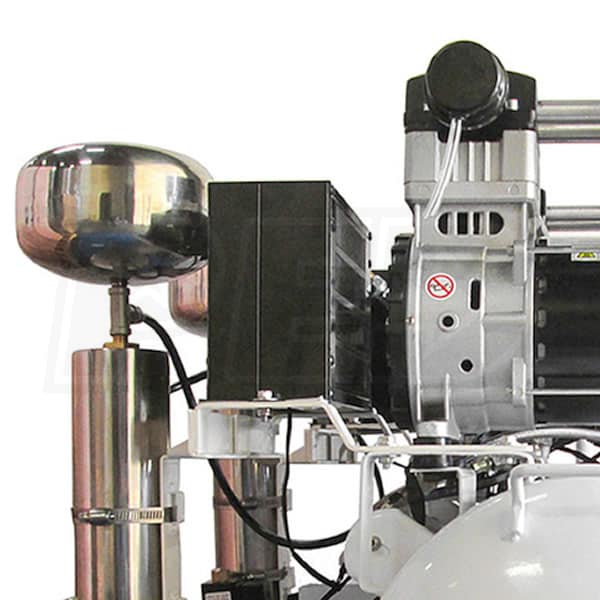

- Aftercooler Condenser
- Heat exchanger cools the discharge air, condensation is pushed to dryer
- Air Dryer With Activated Alumina Desiccant
- Activated Alumina has a 4000 hour service life; protects tools & machinery
- 20 Gallon Steel Air Tank
- Just the right size for shop or garage
- Designed For Increased Duty Cycles & Run Times
- Time to fill tank from empty to full - 150 Seconds
- Recovery time from 95 PSI to 125 PSI - 40 Seconds
- Top Mounted Controls & Condor Pressure Switch
- Dual gauges so you can check tank & tool pressure at a glance
- 1/4" air outlet with quick connector for fast tool changes
- Thermal Overload Protector

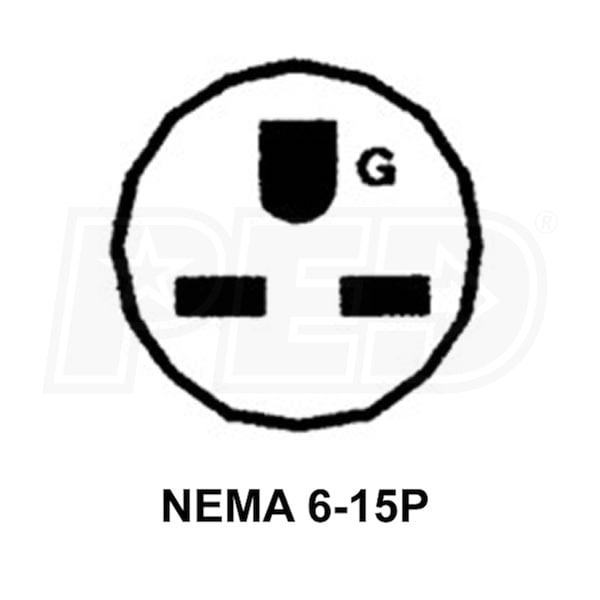

- 14 Amp low amp draw works on NEMA 6-15P outlets
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-20040DC
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
4
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.6
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
175 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
39 Inches
Product Width
25 Inches
Product Height
28 Inches
Power Type
Electric
UPC
743369720058
