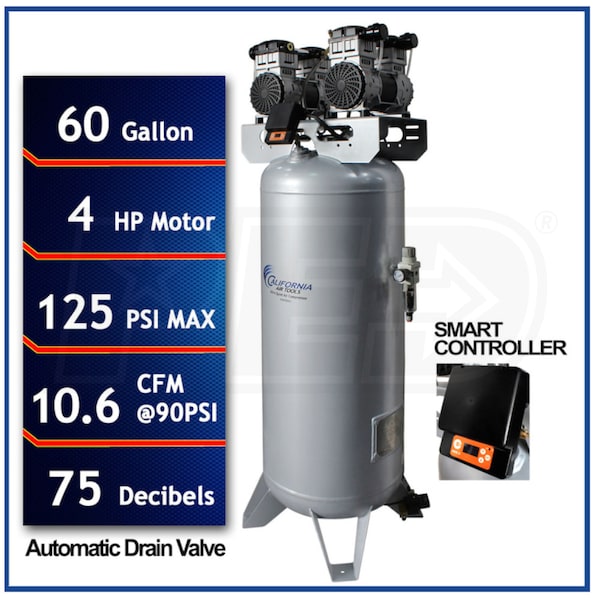

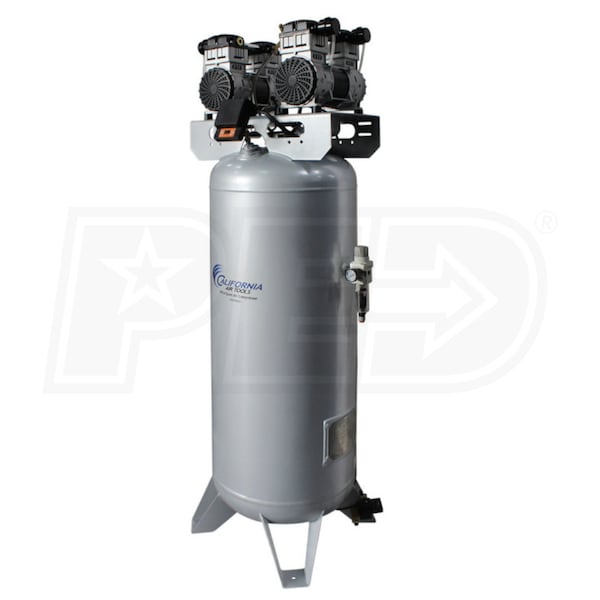

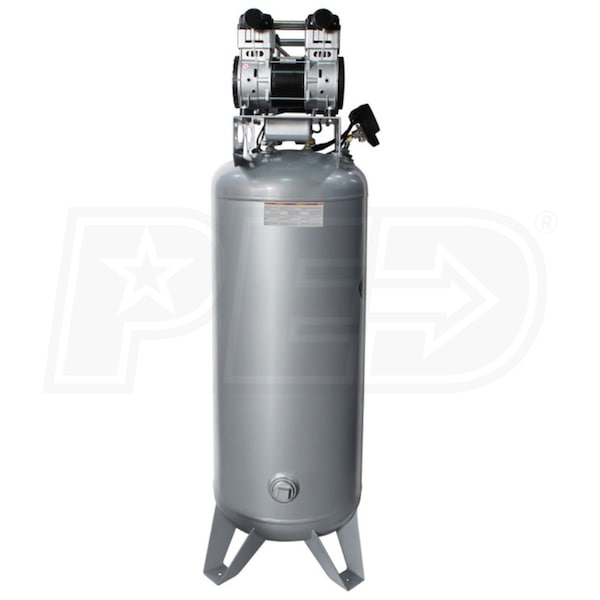

California Air Tools SP Ultra Quiet & Oil-Free 4-HP 60-Gallon Air Compressor w/ Smart Controller & Auto Drain (220V 1-Phase)

Model:

CAT-60040SMAD

Write A Review
$2,250.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools SP Ultra Quiet & Oil-Free 4-HP 60-Gallon Air Compressor w/ Smart Controller & Auto Drain (220V 1-Phase)
California Air Tools SP Ultra Quiet & Oil-Free 4-HP 60-Gallon Air Compressor w/ Smart Controller & Auto Drain (220V 1-Phase)
Model: CAT-60040SMAD
$2,250.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

10.6

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Power, Air Flow and Less Service With At Least 30% Less Noise
  • Designed to be one of the quietest compressors in the industry
  • Ultra-Quiet at 75 decibels; Ideal for indoor use where noise is an issue
  • Powerful Twin 2-HP SP Series Motor (4-HP Total)
  • 5 micron air filter removes dirt, dust, and moisture
  • Easy start valve for less starting amperage and thermal overload protection
  • Operates at 1680 RPM creating less noise & less wear; Includes 4 air filters
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 6:30 Minutes
  • Recovery time from 95 PSI to 125 PSI - 2:00 Minutes; Duty Cycle - 70/30

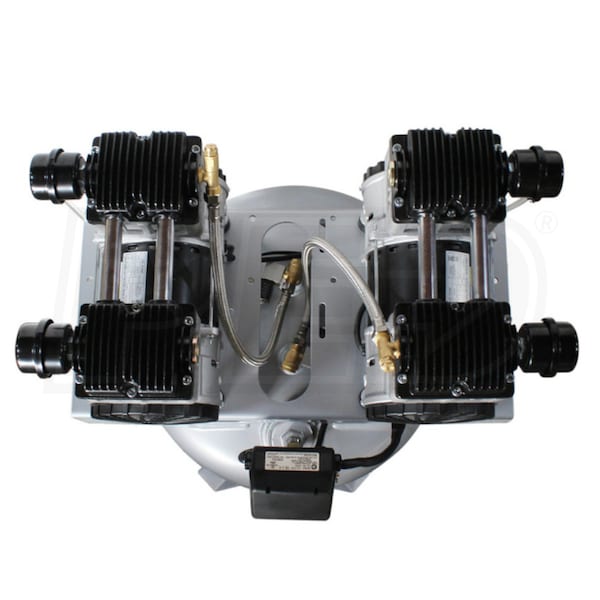

  • Oil-Free Dual Piston Pump
  • Offers less maintenance, cost, and clean air for tools
  • Use in a variety of temperatures (cold starts) and uneven terrains
  • 3000+ hour life cycle before wear; comparable units are 1500 hours or less
  • MDR2i OLED Smart Controller For Remote Monitoring & Control
  • Connect to mobile phones, tablets, notebooks, or computers
  • Can be used as an access point or can be connected to a Wi-Fi network
  • Includes programmable ON/OFF times, pressure ON/OFF level, unloader relay delay
  • AutoDrain time, overcurrent limit, select pressure PSI & total active motor-pump running hours
  • 60 Gallon ASME Steel Air Tank
  • Easy to read large output pressure gauge
  • Regulator maintains constant outlet pressure for tools; 3/8" port
  • Automatic Drain Valve
  • Manual timer sets time for both the frequency and duration
  • Routine draining prevents air contamination and prolongs tool life
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-60040SMAD
specs product image PID-163657
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
4
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.6
CFM Rated @
90 PSI
CFM @ 40 PSI
12.8
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
213 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
21 Inches
Product Width
28.5 Inches
Product Height
66 Inches
Power Type
Electric
UPC
850053943706
