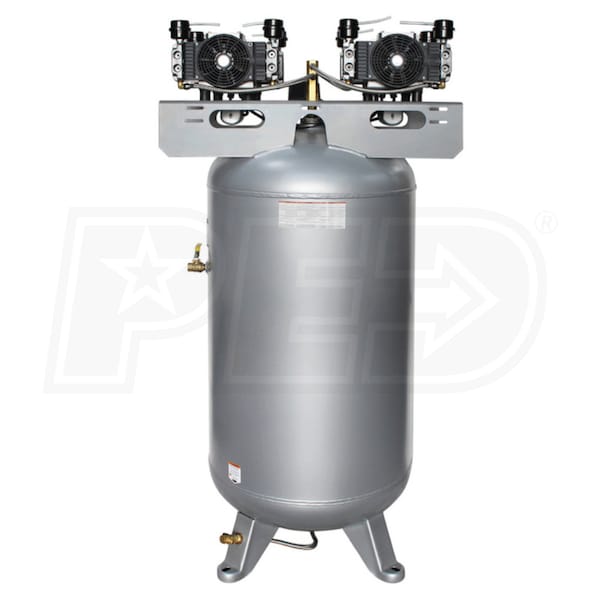

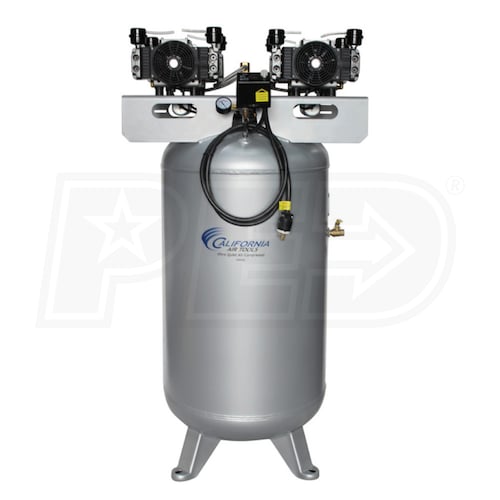

California Air Tools Ultra Quiet & Oil-Free 6-HP 80-Gallon Steel Tank Air Compressor (230V 1-Phase)
Model:
CAT-80060C
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
16.80
Tank Size
80
- Powerful 6-HP Ultra Quiet & Oil-Free Air Compressor

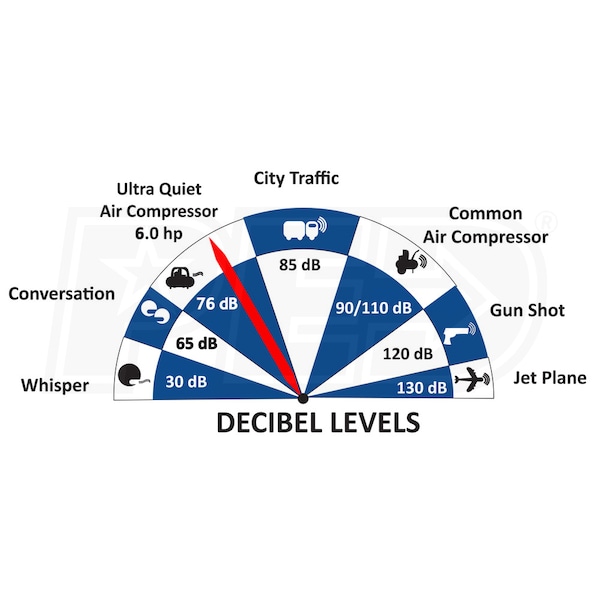

- Designed to be one of the quietest with only 76 decibels
- Ideal commercial business, manufacturing, autobody shops & other general pneumatic
- Twin OLF2800 3-HP 230V 1-Phase Motors (Total 6-HP)
- Comes complete (8) air filters and (8) air in-take tube
- Operates at 1680 RPM creating less noise and less wear

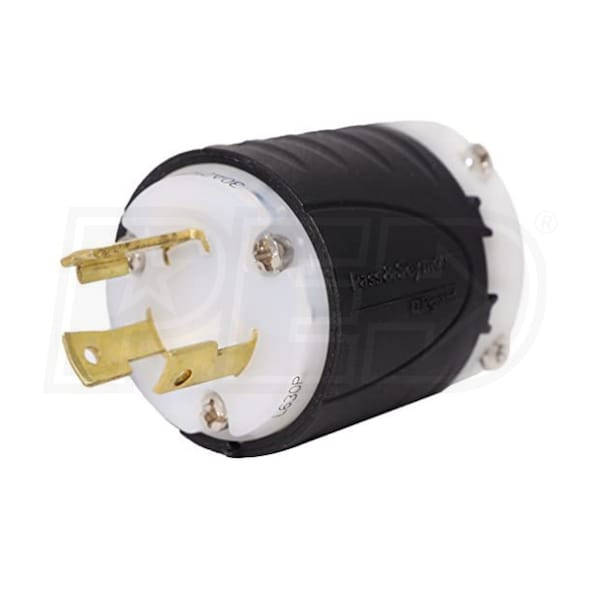

- Plug Type: NEMA L6-30P (Fits NEMA L6-30P outlet / receptacle)
- Oil-Free Single-Stage Pump
- Offers less maintenance, cost, and clean air for tools
- Use in a variety of temperatures (cold starts) and uneven terrains
- 80 Gallon ASME Steel Air Tank
- Time to fill tank from empty to full - 3:56 Minutes
- Recovery time from 92 PSI to 120 PSI - 57 Seconds

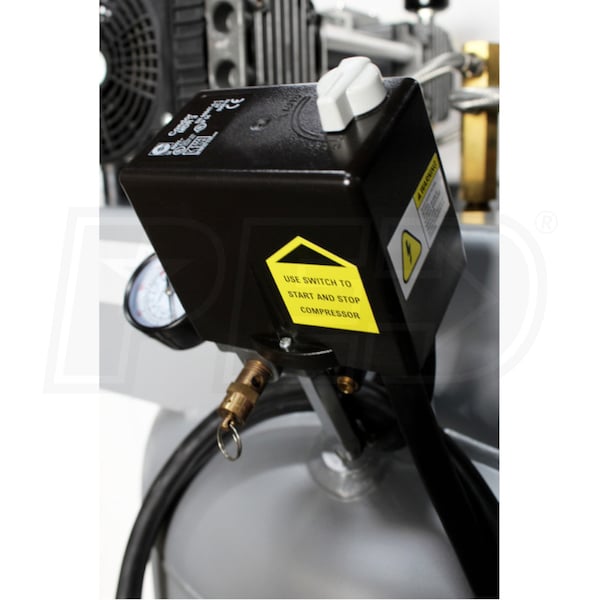

- Condor Pressure Switch
- Protects the motor from overheating
- Regulates air pressure in the compressor
- Thermal Overload Protector
- Protects the motor from overheating
- Manual Tank Drain w/ Strainer Cleanout
- Routine draining prevents air contamination & prolongs tool life
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-80060C
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
30 Amp Breaker
Engine
HP
6
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.80
CFM Rated @
90 PSI
CFM @ 40 PSI
20
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
33 Inches
Product Width
23.5 Inches
Product Height
61.5 Inches
Dimensions
Power Cord Length: 7ft
Power Type
Electric
UPC
850053943416
