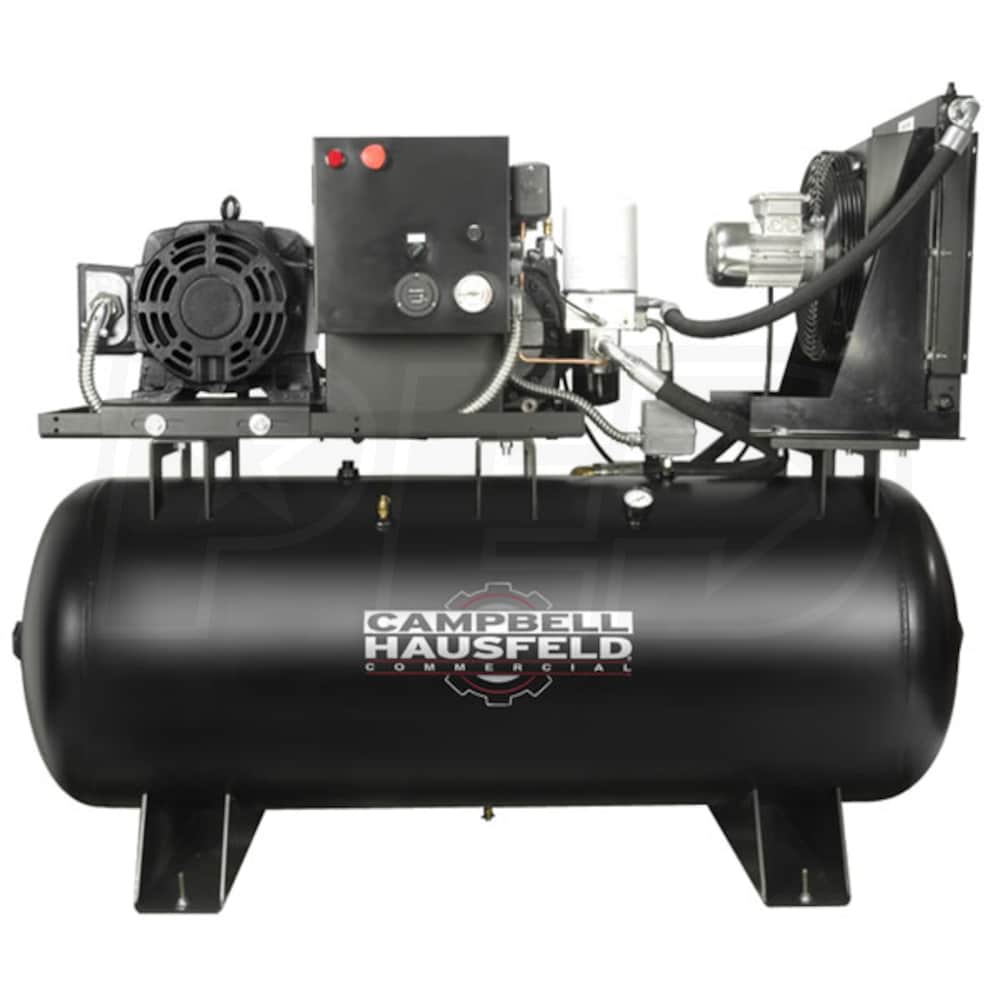

Campbell Hausfeld Commercial 25-HP 120-Gallon Rotary Screw Air Compressor (460V 3-Phase)
Model:
CS2254
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
87
Tank Size
120
- High Performance For Demanding Applications
- Delivers more air power for less money than piston compressors
- 100% duty cycle is ideal for fabrication & small manufacturing
- Rotary technology is quiet, reliable, durable, & economical
- Energy Efficient
- Automatically unloads to idle pressure when system demand is low
- Timed shutdown feature conserves power when not in use
- German Made Airend
- Compact module reduces interconnections
- Eliminates leakage & improves efficiency
- Prewired Control Panel
- Simplifies initial electrical hookup
- Air-Oil Separator & Spin-on Oil Filter
- Easy to access, simple to maintain- no special tools needed
- Low Operating Noise
- Quieter than piston compressors
- 82 dBA allows unit to be positioned closer to the work zone
- 120 Gallon Air Tank
- 150 PSI maximum allows 87 CFM for multiple applications
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
CS2254
Engine
HP
25
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
87
CFM Rated @
175 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
No
Overview
Weight
960 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
24 Inches
Product Height
64 Inches
Power Type
Electric
