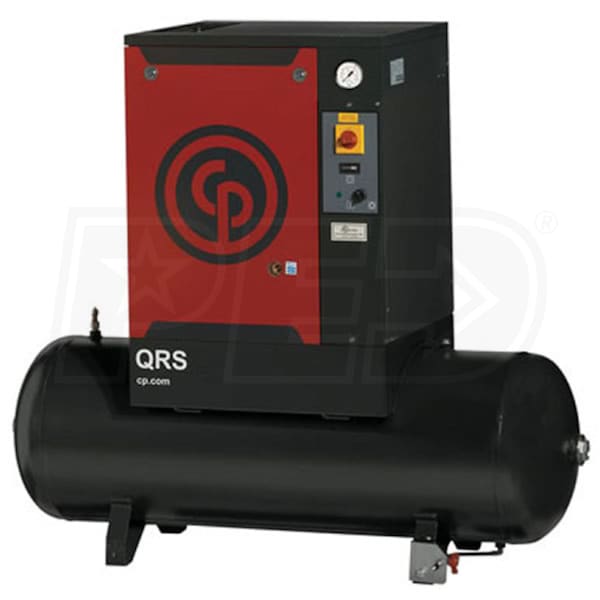

Chicago Pneumatic 10-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase 150PSI)
Model:
QRS10.0HP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
37
Tank Size
120
- The Quiet Compressed Air System (QRS= Quiet Rotary Screw)
- Perfect for light industrial applications where noise is an issue
- 65dBA easily meets the demands of body shops, repair bays, etc.
- Reliable And Versatile
- Continuous operating capability; 37scfm @ 125psi, 33scfm @ 150psi
- Tri-voltage, TEFC motor with across-the-line motor starter
- Rugged belt drive; UL and UL-C approved control panel
- Simple, Low Cost Maintenance
- Rotary Screw technology has no wearing parts
- No valves, bushings, piston rings or rod inserts to service
- Factory filled with QRS-4000 lubricant for 4,000 hrs of operation
- An adjustable V-Belt system drives the compressor
- Space Saving Design
- Takes up less than 12 square feet of your shop or service bay
- Easy And Efficient Operation
- Air discharge pressure gauge; On/Off switch with lockout feature
- Hour meter and high oil temperature shut down light
- Reset button for high oil temperature shutdown and motor overload
- 5 Year Factory Warranty
- Service center fee required for 5 year certification
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
QRS10.0HP
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
37
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
No
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Horizontal
Overview
Weight
845 Pounds
Certification
ASME/CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
73 Inches
Product Width
24 Inches
Product Height
58 Inches
Power Type
Electric
