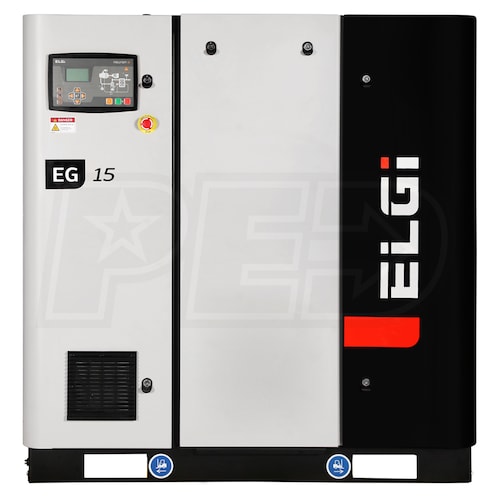

ELGi EG Series 20-HP Tankless Rotary Screw Air Compressor (230/460V 3-Phase)

Model:

EG15-125

Write A Review
$13,955.04
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks

ELGi EG Series 20-HP Tankless Rotary Screw Air Compressor (230/460V 3-Phase)
ELGi EG Series 20-HP Tankless Rotary Screw Air Compressor (230/460V 3-Phase)
Model: EG15-125
$13,955.04
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230/460 Volt AC

Phase

3-Phase

CFM

85

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Industry Leading Premium Rotary Screw Air Compressor (230/460V 3-Phase)
  • Produces higher CFM for auto garages, engineering, packaging and much more
  • Rigid, steel piping, hoses and flanged fittings with o-ring seals help prevent leaks

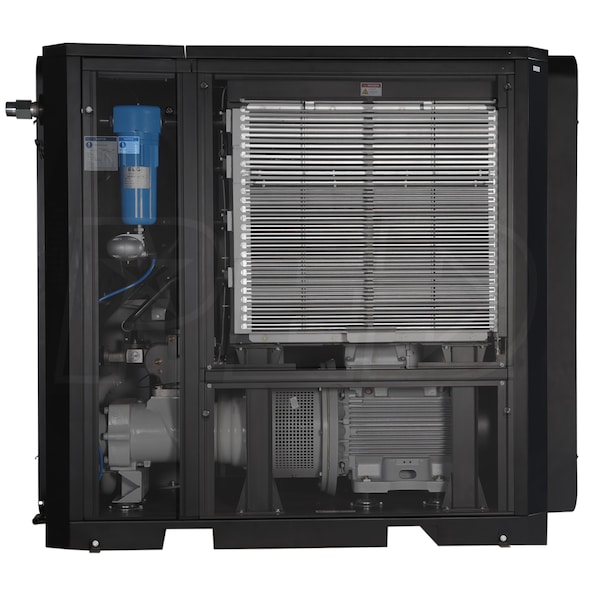

  • Thermo-Zone Layout Design
  • Designed into 4 zones for sensitive components to run cooler
  • Twin cooling fans for maximum cooling capacity and efficiency
  • 2-piece, oversized, air cooled oil cooler and after cooler for high ambient applications

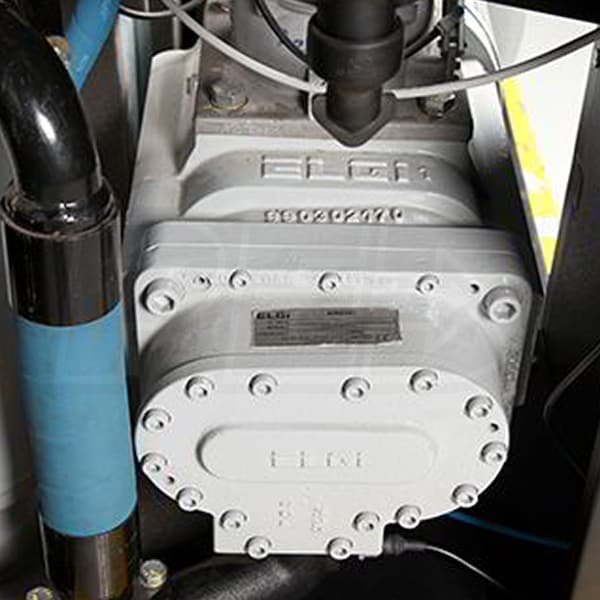

  • Exclusive Slow Speed Air End
  • Most efficient, modern and robust in the industry

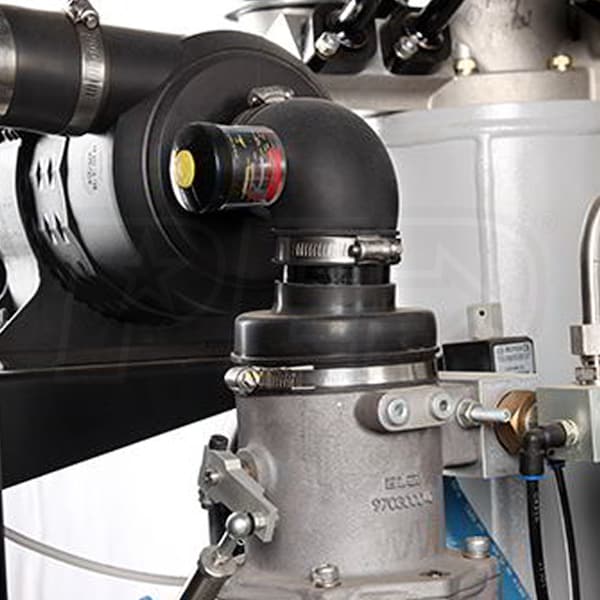

  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life

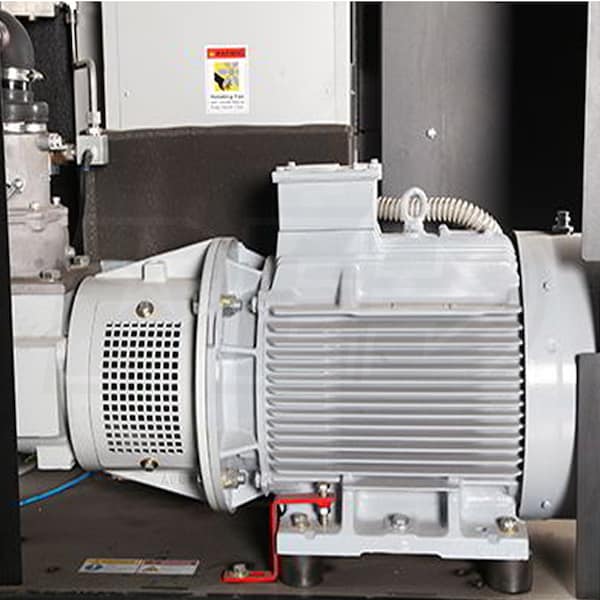

  • High-Efficiency Direct-Drive TEFC Motor
  • Units electrical voltage default is 460 volt
  • Slow running speeds places less stress on components to reduce wear & tear
  • Improves energy efficiency, reduces maintenance costs and saves you money
  • 3 Stage Oil Separation System < 1PPM
  • High capacity spin on 10 micron oil filter element
  • Factory fill with 8,000-hour life premium synthetic lubricant
  • ELGi's unique Oil Separation By Impact and Centrifugal action efficiently separates oil & air
  • State Of The Art Neuron II Controller
  • Diagnoses all systems and serves as your watchdog
  • Provides early warning for trouble areas and routine maintenance
  • Regulates start delays between the compressor and dryer to optimize the air quality while reducing energy costs
  • 1-Year "Bumper-To-Bumper" Warranty
  • Industry first Lifetime Air End Warranty
  • 5-year parts & labor warranty on the motor, coolers and reservoir
  • Requires an authorized start up by an ELGI distributor to validate the warranty
  • 48-Hours Parts Availability and Loaner Machines If The Unit Is Not Repaired In 48-Hours
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

EG15-125
specs product image PID-105391
General Information
Product Category
Air Compressor - Stationary
Engine
HP
20
Motor
Voltage
230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
56.9 (230V) / 28.5 (460V)
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
85
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
132 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1416 Pounds
Certification
CE, ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
58 Inches
Product Depth
28 Inches
Product Height
58 Inches
Power Type
Electric
