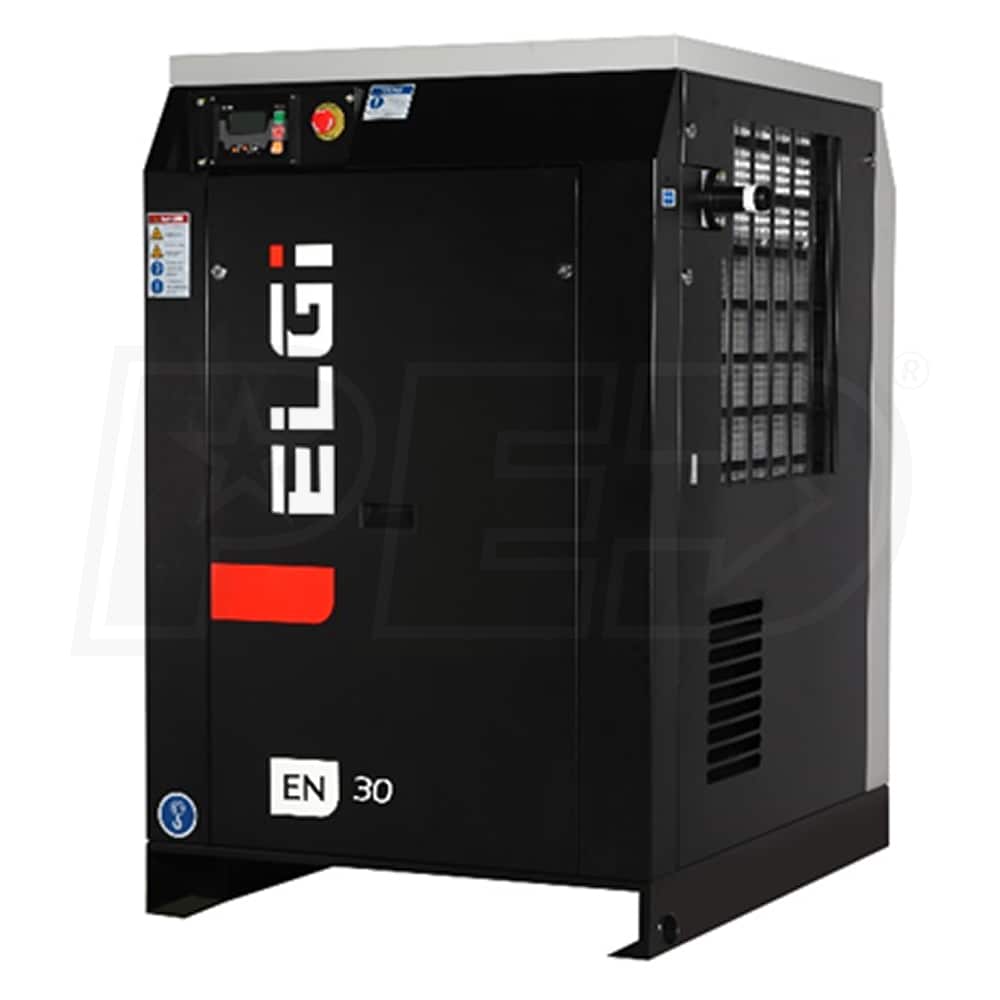

ELGi EN Series 40-HP Tankless Rotary Screw Air Compressor (208V 3-Phase)
Model:
EN30-125-208
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
138
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Best In Class Rotary Screw Air Compressor (208V 3-Phase)
- Built for food processing, paper, automotive, small machining & fabrication workshops

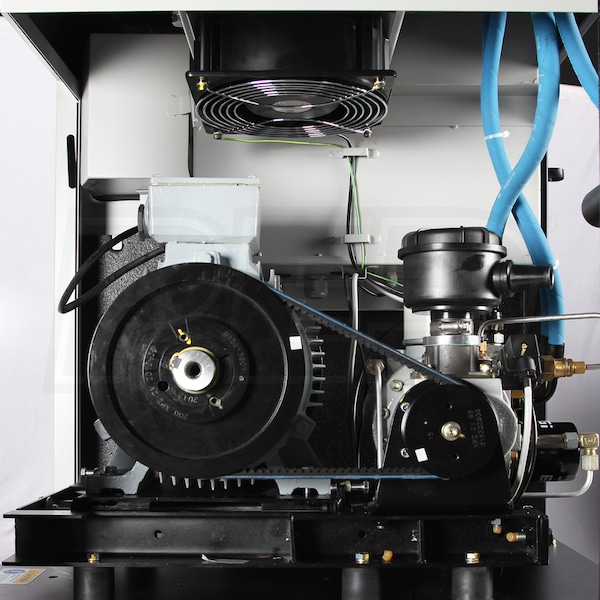

- Thermo-Zone Layout Design
- Designed into 4 zones for sensitive components to run cooler
- Twin cooling fans for maximum cooling capacity and efficiency
- 2-piece, oversized, air cooled oil cooler and after cooler for high ambient applications

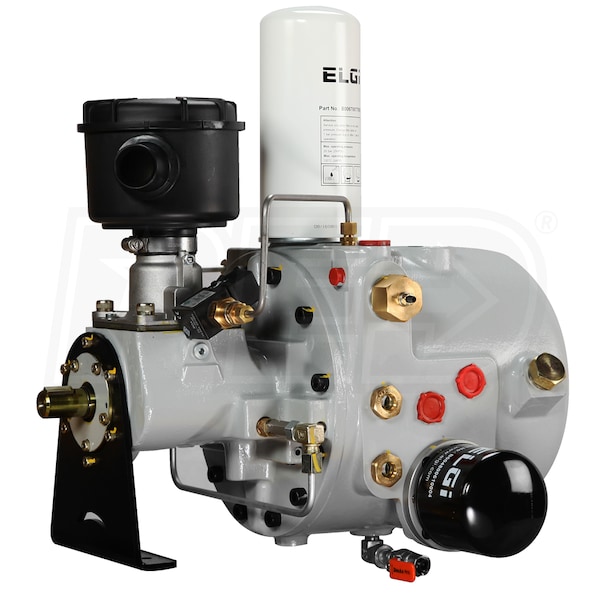

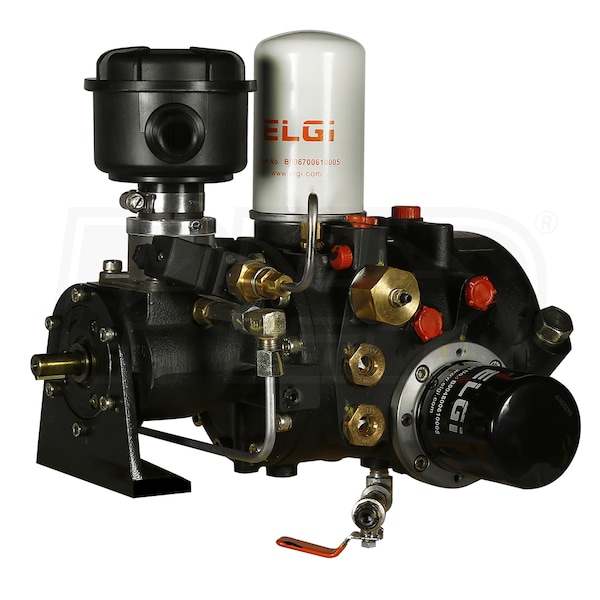

- Exclusive ELGi Air End
- 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life
- Integrated air intake valve, solenoid, safety, minimum pressure, thermostatic, oil drain & blow down valves

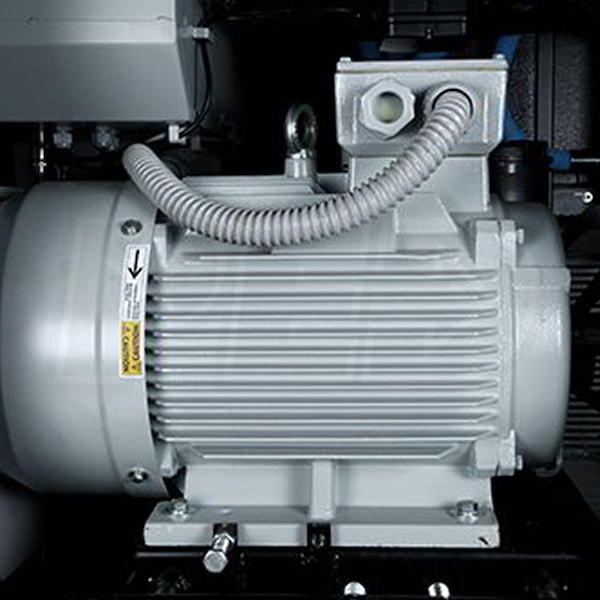

- High-Efficiency Premium Belt-Drive TEFC Motor
- Units electrical voltage is 208 volt 3-phase
- Complete with Class F insulation, reserve power & tensioning adjustments
- All electrical components are UL/cUL certified to withstand severe conditions
- Zero Leaks
- Encapsulated design features internal ports and O-ring sealed flanges for leak-free performance
- Heavy-Duty Full Enclosure w/ Best-In-Class Sounds Levels
- Allows for installation closer to point-of-use
- Complete with powder-coated panels with 3 service doors
- State Of The Art Neuron Controller
- Easy-to-use service indications, fault alarms, hour master indicators and safety shut-downs help ensure maximum uptime

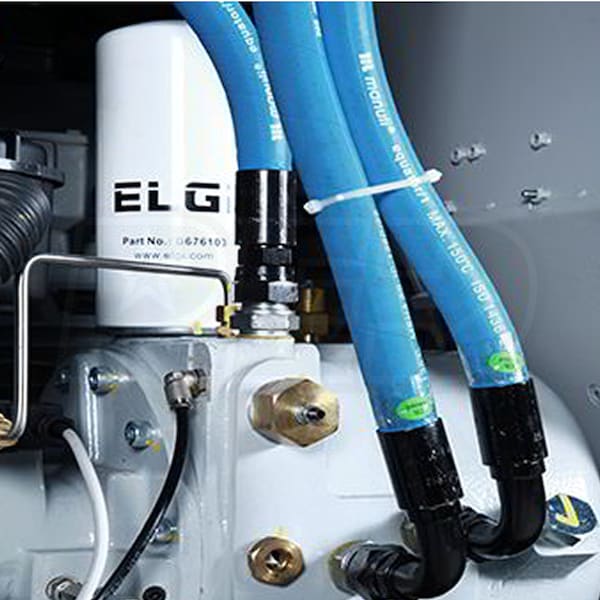

- 3 Stage Oil Separation System < 3PPM
- High capacity spin on 10 micron oil filter element
- Factory fill with 8,000-hour life premium synthetic lubricant
- ELGi's unique Oil Separation By Impact and Deceleration action efficiently separates oil & air
- 1-Year "Bumper-To-Bumper" Warranty
- Backed by 6-year Air End Warranty
- 5-year parts & labor warranty on the motor, coolers, and reservoir
- 48-Hours Parts Availability and Loaner Machines If Unit Is Not Repaired In 48-Hours
- ***Note For 200V Applications - Requires Buck-Boost Transformer
- Please contact us for ordering information
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
EN30-125-208
General Information
Product Category
Air Compressor - Stationary
Engine
HP
40
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
102.4 (208V)
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
138
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
128 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1534 Pounds
Certification
UL/cUL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
46 Inches
Product Depth
37 Inches
Product Height
63 Inches
Power Type
Electric
Additional Model Numbers
EN30-125-200, EN30-125-208
