EMAX 7.5-HP 2-Stage Bare 3-Cylinder Replacement Air Compressor Pump (32 CFM Displacement @ 0 PSI)
Model:
APP3Y0732TR3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Solid Cast Iron Two-Stage 3-Cylinder Piston Pump
- Rated at up to 60,000 hours* (Based on B-10 Bearing Life Rating)
- All solid cast-iron - cylinders, crankcase, 14.5" flywheel, crankshaft & valve plates
- 32 CFM Displacement @ 0 PSI & 26 CFM @ 100 PSI
- Splash lubricated pumps maximize life and energy savings
- Designed large with low RPM for long life and quiet operation
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Designed for maximum performance and durability
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up and extends pump life
- Industrial Grade Ball Bearings
- For maximum performance and extended pump life
- High Quality & Reliable Features
- Oversized site glass and large steel automotive type filters
- Built-in head unloaders designed for continuous run applications
- Twin B-Section Belt Drive; Ensures better belt gripage & longer belt life
- Specifications:
- Maximum PSI of 175
- Bolt Pattern: 10-1/4" x 5-3/8"
- Includes break-in oil - Holds 2 quarts of oil
- 1-Year Standard Limited Manufacturer Warranty
- Extends to 5-years with purchase of Maintenance Kit Model: EFKIT008WB
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
APP3Y0732TR3
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
32
CFM Rated @
0 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
180 Pounds
Consumer Warranty
1 Year
Product Length
15 Inches
Product Width
22 Inches
Product Height
18 Inches
UPC
810070052300
Reviews
EMAX APP3Y0732TR3 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Air Line Filter
Air line filters extend the life of your compressor and improve the quality of ...
Manuals
APP3Y0732TR3
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

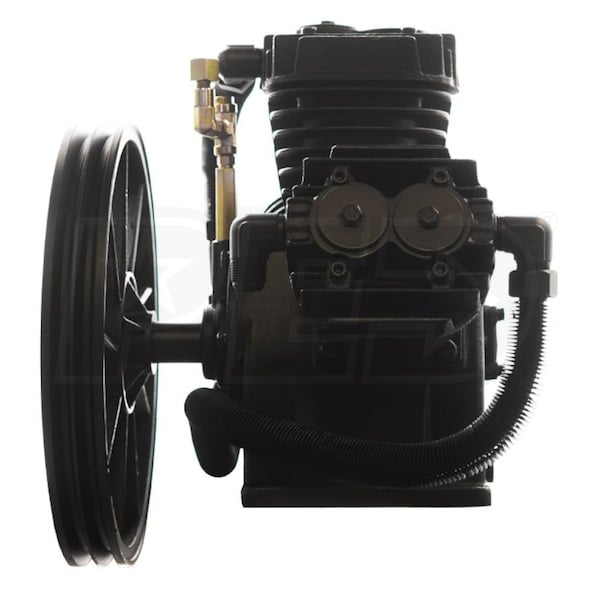

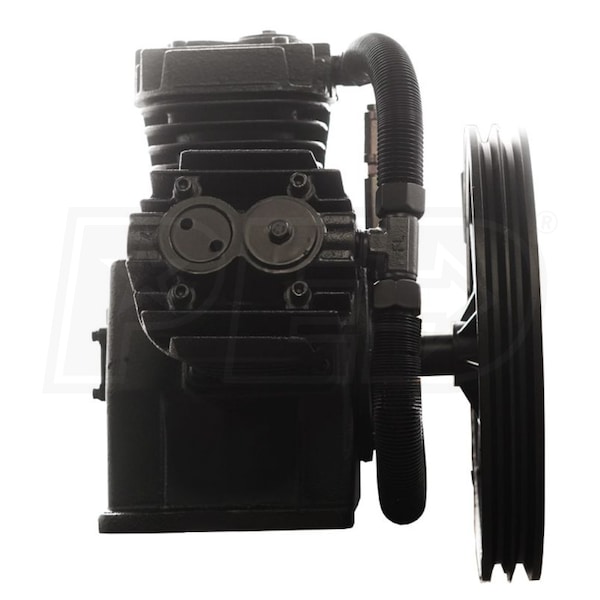

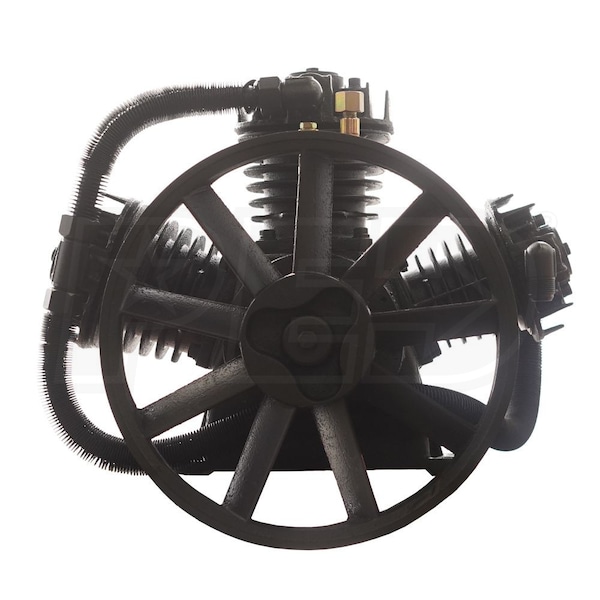

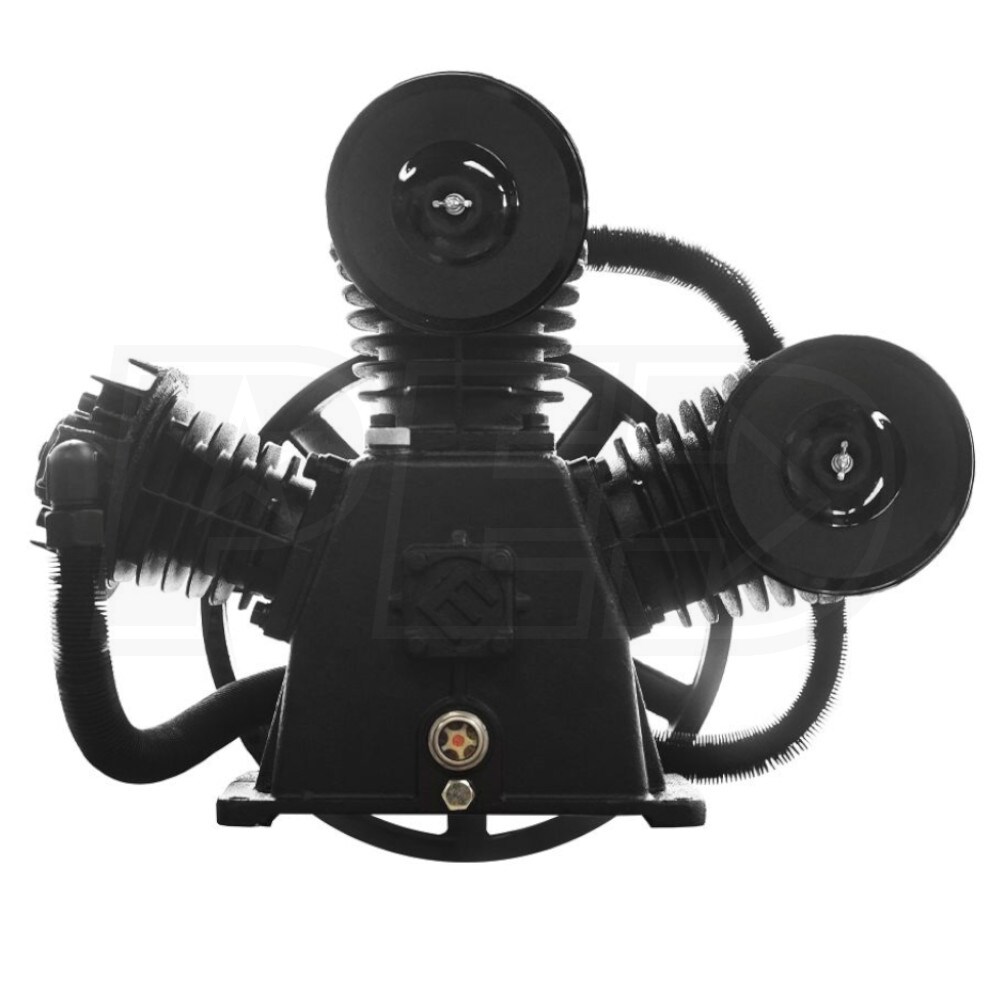

EMAX 7.5-HP 2-Stage Bare 3-Cylinder Replacement Air Compressor Pump (32 CFM Displacement @ 0 PSI)
