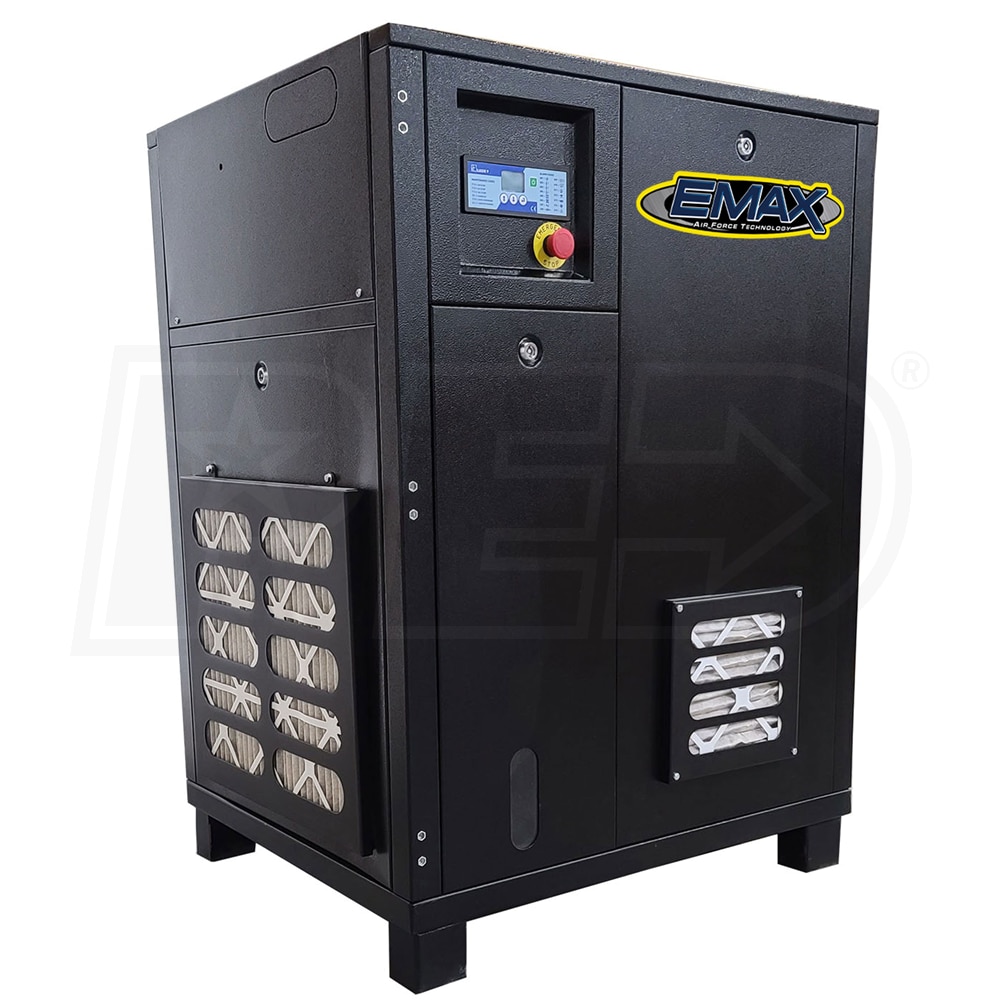

EMAX 15-HP Industrial Tankless Rotary Screw Air Compressor (208V 3-Phase)

Model:

ERI0150003-208

Write A Review
$7,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

EMAX 15-HP Industrial Tankless Rotary Screw Air Compressor (208V 3-Phase)
EMAX 15-HP Industrial Tankless Rotary Screw Air Compressor (208V 3-Phase)
Model: ERI0150003-208
$7,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

56.85

Tank Size

0

  • EMAX New Generation Industrial Rotary Screw System
  • Offers superior performance and quiet operation
  • Built to exacting standards, to provide years of reliable service
  • TEFC Premium V-Belt Drive Motor
  • NEMA standard low rpm 4 pole 1750 rpm
  • High-efficiency Mann filters spin on for easy servicing
  • Wye-Delta Soft Start Motor
  • Reduces start load by 30% and provides reduces energy demand on start-up
  • Precision Engineered Rotary Air End
  • 100% duty cycle with up to 60,000 hours run life cycle.
  • High flow aluminum Air/Oil radiator cooler with low rpm high flow cooling fan
  • Heavy-Duty Soundproof Cabinet
  • Solid steel with powder coated finish prevents rust
  • Easy to remove insulated doors for fast servicing of the compressor
  • Designed to be used with stationary air receiver (Not Included)
  • PLC Logik 9 Smart Controller
  • Gives you the visual ability to set pressures, alarms and schedules
  • Includes temperature display, master monitoring, hour meter and auto start if power is lost
  • VMC High Flow Inlet Poppet Valve
  • Provides longer life due to lower friction
  • Delivers higher compressor air flow and efficiency
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and motor with purchase extended warranty service kit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SKIT003WB Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERI0150003-208
specs product image PID-109371
General Information
Product Category
Air Compressor - Stationary
Engine
HP
15
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
56.85
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
546 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
30 Inches
Product Height
49 Inches
Power Type
Electric
