Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
45
Tank Size
0
- Rotary Screw Air System
- 208/230V 1-Phase motor drives 1750 RPM motor
- Drive-Tek
- Reduces energy demand up to 33%
- Standard Wye-Delta Soft Start Motor
- Provides reduced energy demand and amp draw on start up

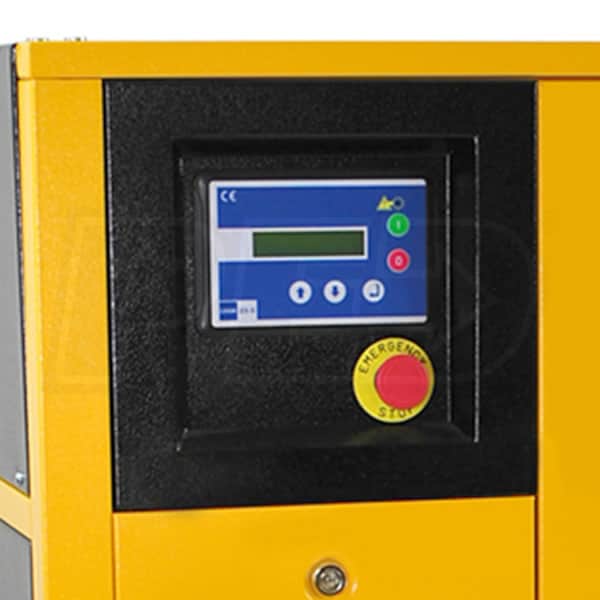

- PLC Controller - Advanced Maintenance Intelligence Monitor
- Maintenance, temperature, oil level, filtration and hours
- Remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- Designed For Use With Stationary Air Receiver (Not Included)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERS0100001
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
45
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
930 Pounds
Certification
UL
Consumer Warranty
10 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
Reviews
(1)
EMAX ERS0100001 Reviews & Ratings
How-To Articles
How to Pick The Perfect Rotary Screw Compressor
You work hard and expect the same from your tools and equipment.When it comes t...
How To Quickly Improve Your Gas Mileage
You don't have to be a rocket scientist to figure out properly inflated tires w...
Rotary Screw Air Compressor Selector
You can't just walk into a store and find the rotary screw air compressor you n...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

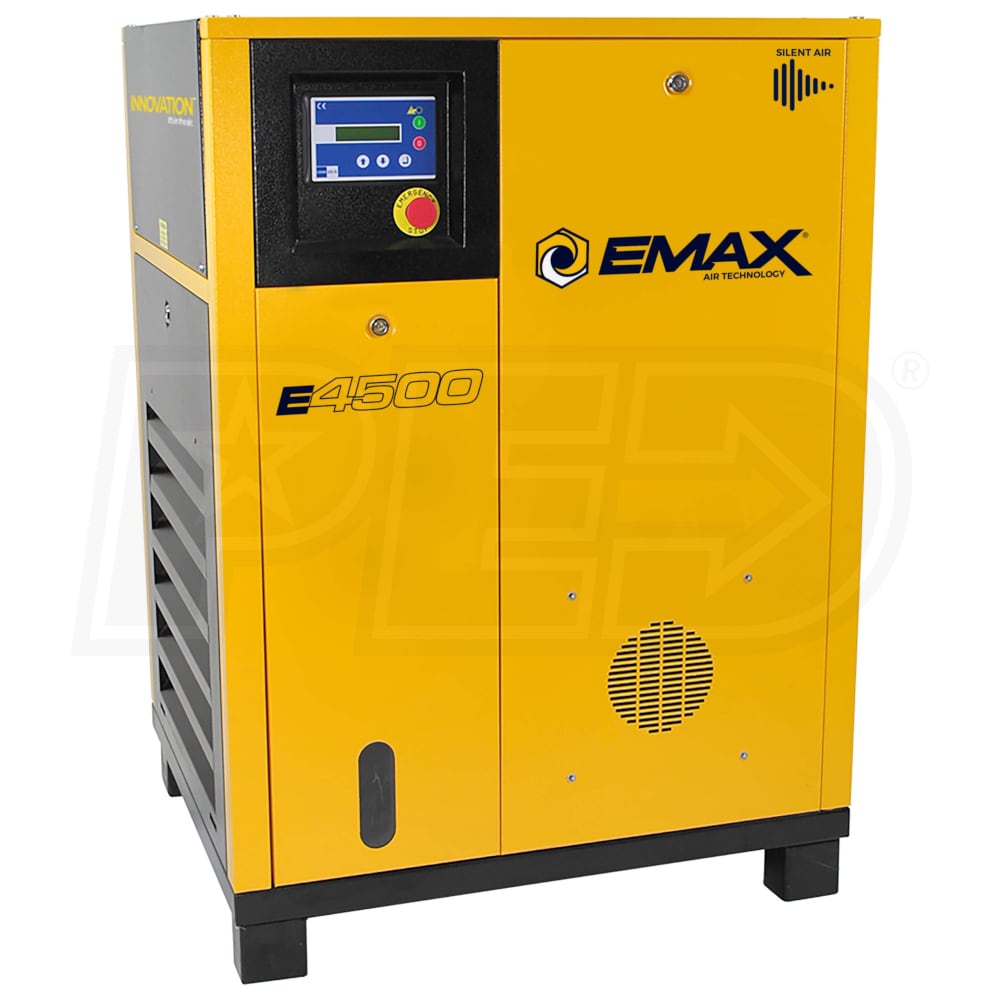

EMAX 10-HP Tankless Rotary Screw Air Compressor (208/230V 1-Phase)
