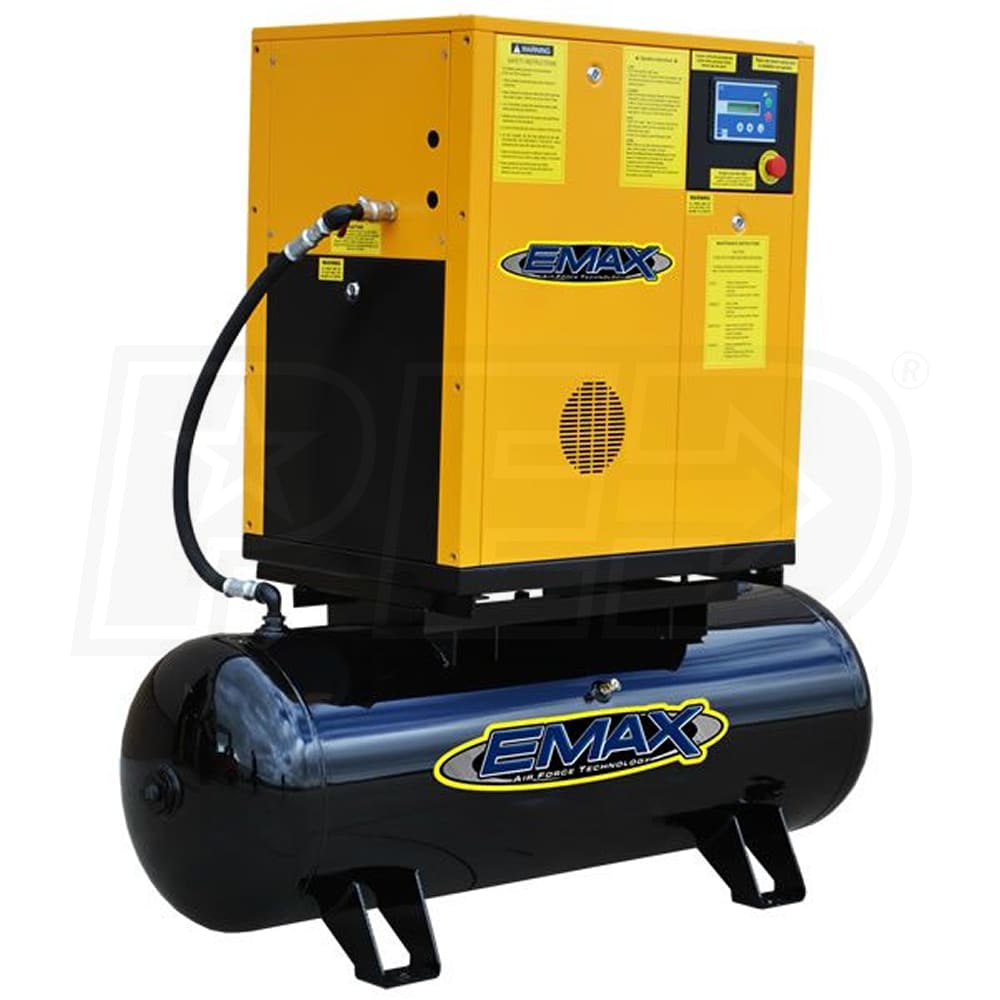

EMAX 10-HP 120-Gallon Rotary Screw Air Compressor (208/230V 1-Phase)
Model:
ERS0101201
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
45
Tank Size
120
- Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Ultra-Quiet Rotary Screw Operation
- Delivers enhanced reliability with ultimate energy efficiency
- Continuous 100% duty cycle operates at normal conversation level
- Drive-Tek
- Reduces energy demand up to 33% for huge savings
- Highest quality components with professional workmanship
- Standard Y-Delta Soft Start Motor
- Runs at 1750 RPM for less wear and tear
- Reduces energy demand and amp draw on startup
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- German built with 10-year warranty & 70,000 running hours
- Advanced Programmable Logistic Controller
- Easy to use remote with timed start/stop and low oil shutdown
- Monitors maintenance, temperature, oil level, filtration, hours and much more
- Heavy-Duty Sound Attenuated Cabinet
- Offers lower decibel rating with easy access to critical components
- 120-gallon ASME air tank receiver with timed automatic drain valve
- Spin-Tek
- Unique tool-less oil filters & air/oil separators
- Genuine Mann filters reduce air end contamination & harmful elements
- Best Warranty In The Industry
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- 10-year limited warranty on rotary air end & 5-year limited motor warranty with purchase of Maintenance Service Kit - all other components are 5-years, including PLC
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERS0101201
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
45
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1195 Pounds
Certification
UL, CSA, ASME, CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
80 Inches
Product Width
48 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013688
