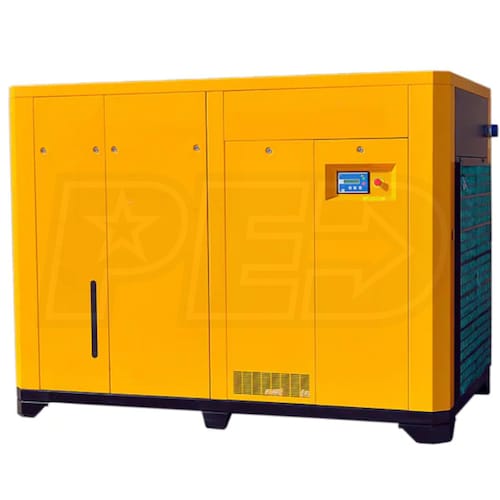

EMAX 75-HP Variable Speed Tankless Rotary Screw Air Compressor (460V 3-Phase)
Model:
ERV0750003-460V
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
353.2
Tank Size
0
- This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Drive-Tek
- Variable Speed Drive reduces energy demand up to 33%
- Standard Y-Delta Soft Start Motor
- Reduced energy demand & amp draw on start up
- PLC Controller- Advanced Maintenance Intelligence Monitor
- Monitors maintenance, temperature, oil level, filtration & hours
- Allows convenient remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove or install- saving time & money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Rated up to 353.2 CFM at 100 PSI (145 PSI maximum)
- Heavy-Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw unit
- Rated at 78 dBA; 2" NPT air outlet
- Designed For Use With Stationary Air Receiver (Not Included)
- Air receivers can be purchased separately to meet your specific needs
- 1 Year Limited Standard Factory Warranty
- 10 years on air-end pump and motor with purchase extended warranty service kit
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT019 Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERV0750003-460V
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
75
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
353.2
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
2220 Pounds
Certification
UL/CSA/ETL/ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
51 Inches
Product Height
65 Inches
Power Type
Electric
UPC
815002010588
