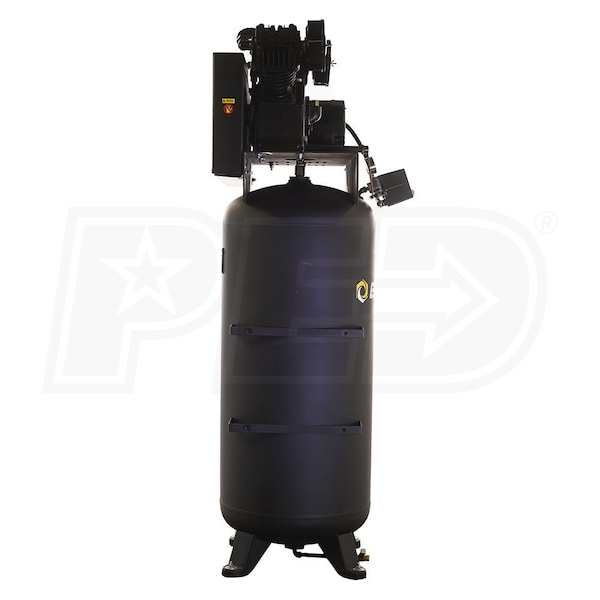

EMAX Industrial 5-HP 60-Gallon Single-Stage Air Compressor w/Isolator Pads - Splash Lubricated Pump (230V 1-Phase)

Model:

ESL05V060V1

Write A Review
$2,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX Industrial 5-HP 60-Gallon Single-Stage Air Compressor w/Isolator Pads - Splash Lubricated Pump (230V 1-Phase)
EMAX Industrial 5-HP 60-Gallon Single-Stage Air Compressor w/Isolator Pads - Splash Lubricated Pump (230V 1-Phase)
Model: ESL05V060V1
$2,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Single Stage 1-Phase

CFM

19

Tank Size

60

  • EMAX 250 Series Industrial Air Compressor
  • *Optional Silent Air System - Silencers Sold Separately*
  • Strong and durable single stage compressor that last
  • Perfect for larger projects, spray painting, HVLP spray gun and nail guns
  • Solid Cast Iron Pressure Lubricated Pump
  • Reliable construction; Rated up to 50,000 hours
  • Splash lubrication keeps pump running smoother and quieter
  • Twin cylinder, removable disc industrial valves & 2 solid steel rods
  • 5-HP Industrial Grade Motor
  • 1740 RPM runs quieter and cooler; last longer
  • Open drip-proof prevents liquid and solids from entering
  • Condor Pressure Switch & Automatic Start/Stop
  • Protects the motor from overheating
  • Regulates air pressure in the compressor
  • 60 Gallon ASME Air Tank
  • Includes isolation pads to lessen vibration and noise
  • Easy-access manual drain simplifies routine maintenance
  • 13-Gauge Steel Belt Guard
  • Durable enclosed prevents accidental injuries
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ESL05V060V1
specs product image PID-154239
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
550 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
38 Inches
Product Width
36 Inches
Product Height
69 Inches
Power Type
Electric
UPC
810070051990
