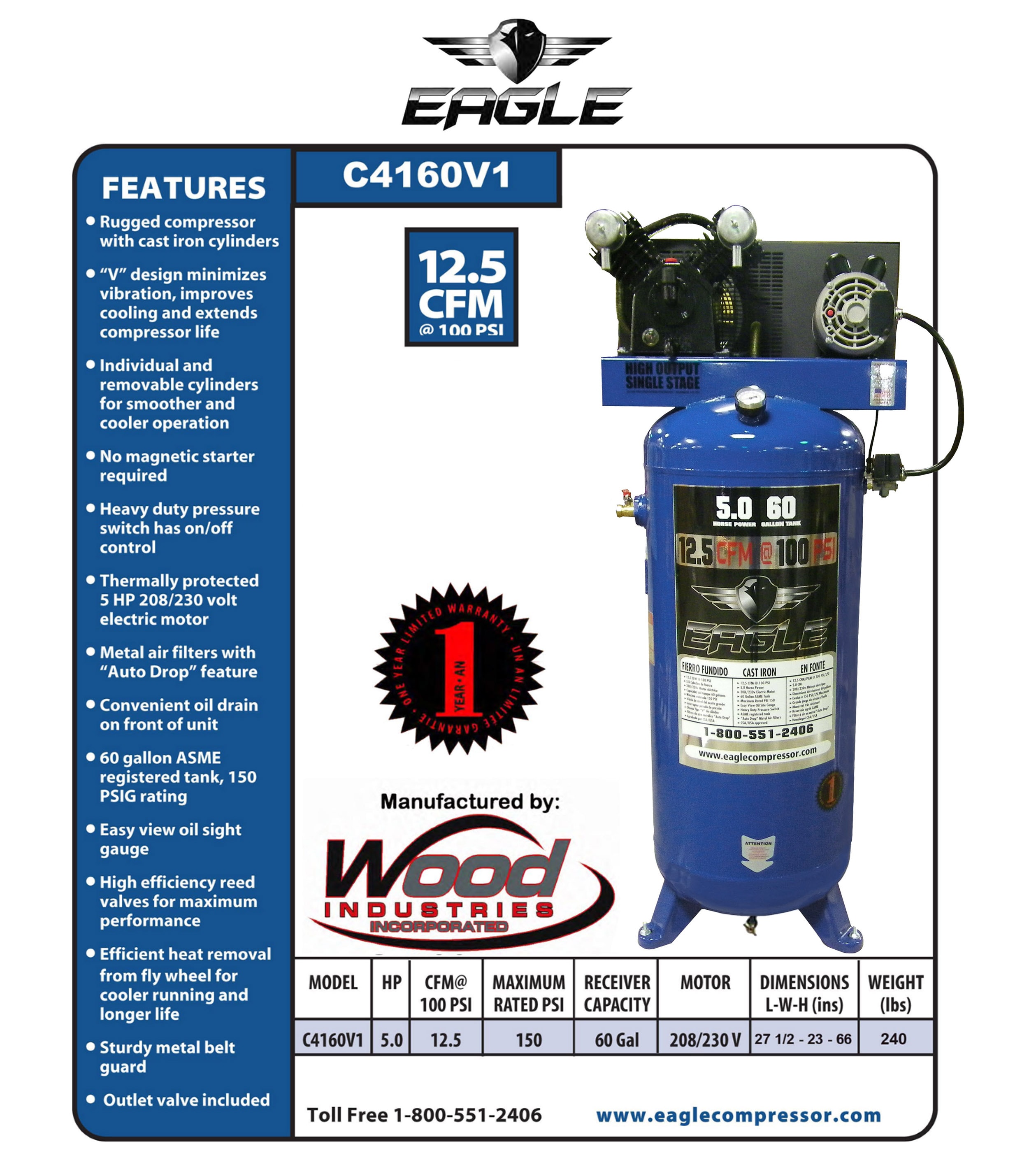

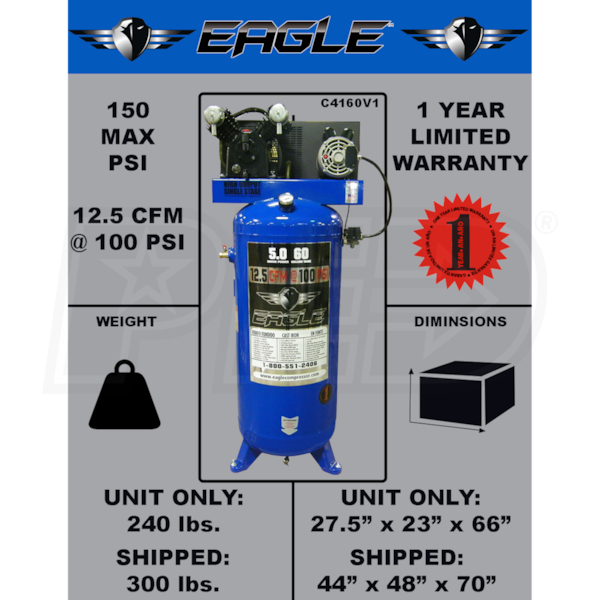

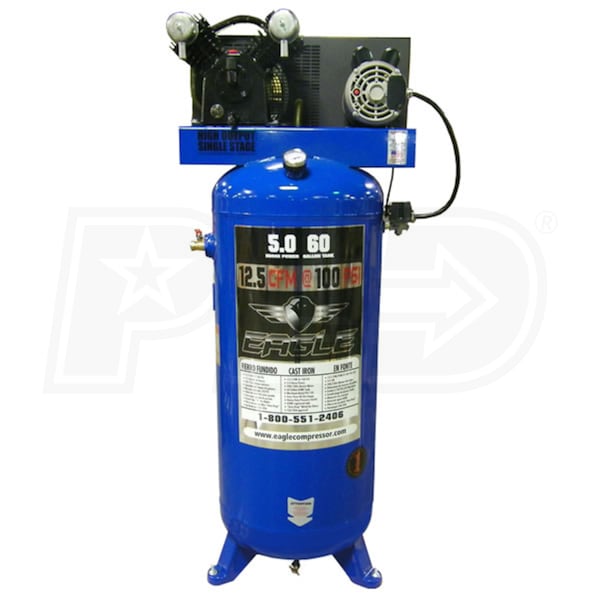

Eagle 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model:
C4160V1
+
Share This Product
Similar Products
$1,099.00
$1,179.99
$1,389.00
$1,064.00
$1,199.00
$1,039.00
$1,329.00
$999.00
$1,369.00
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: EA-SKE001-X
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$139.00
Factory-Direct
Optional Accessories
5
Model: 21999-0177
$109.80
In-Stock
$66.99
In-Stock
Model: DXCM024-0344
$200.99
Factory-Direct
Model: EGA-110
$122.00
Factory-Direct
Model: EA1/2X50-B
$56.00
Factory-Direct
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
12.5
Tank Size
60

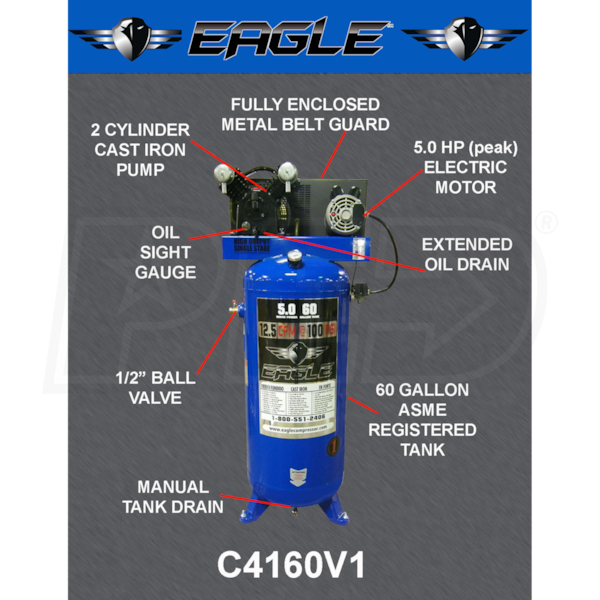

- Rugged Cast Iron Cylinders
- Built to work hard and last a long time
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders
- For smoother & cooler operation
- Heavy Duty Pressure Switch
- With convenient on/off control
- No magnetic starter required
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- 208/230V Single Phase Motor
- Thermally protected
- 60 Gallon ASME Tank
- 150 PSIG rating
- Convenient oil drain on front of unit
- Easy view oil sight gauge
- 1 Year Factory Warranty
- Extends to 2 years with Maintenance Kit added at time of purchase
- Receipts are required for all warranty service
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
C4160V1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
240 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
27.5 Inches
Product Width
23 Inches
Product Height
66 Inches
Power Type
Electric
UPC
777589000188
Reviews
(15)
Eagle C4160V1 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.33
(15 Ratings)
92% recommend this product
5
(8)
(8)4(4)
(4)3(3)
(3)2(0)
(0)1(0)
(0)
This reliable unit from the folks at Eagle features rugged cast iron cylinder sleeves and a "V" design to minimizes vibration, improve cooling, and extend the life of the compressor.
The single phase, 208-230V motor supplies enough power for the small shop or serious hobbyist. This compressor was built to work hard and last a long time. The cast iron pump also was designed with removable cylinders for smoother operation and easy maintenance.
A nice touch is the convenient oil drain on the front of the unit and an easily-viewed oil sight glass. An extended warranty to 2-years with the purchase of a maintenance kit at the time of purchase is offered to protect your investment even longer.
The single phase, 208-230V motor supplies enough power for the small shop or serious hobbyist. This compressor was built to work hard and last a long time. The cast iron pump also was designed with removable cylinders for smoother operation and easy maintenance.
A nice touch is the convenient oil drain on the front of the unit and an easily-viewed oil sight glass. An extended warranty to 2-years with the purchase of a maintenance kit at the time of purchase is offered to protect your investment even longer.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Good Quality
By Cortnee C.
Pennsylvania
Purchased 07/23/2024 |
Review Posted 08/14/2024
This is a good quality compressor for the application we are using it for. We are very happy with the product.
Cortnee C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price
Good For Hobby User But Not Heavy Use
By J D
Pennsylvania
Review Posted 09/04/2022
I am a professional maintenance technician. Installed this unit to operate pneumatics in a car wash. It had 3 issues in the first month. The plastic air line that feeds to the pressure switch leaked so I had to repair and install a new brass ferrule. The drive pulley on the motor vibrated loose and shredded the belt. Had to realign pulley and replace belt. It shakes the belt cover pretty bad which is just an annoyance. You cannot just place this on the concrete without bolting down. The vibrations will cause it to walk on you. You should put it on pads and bolt down anyway but figured I'd mention that just in case you were thinking of not bolting it down.
J D Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
4/5
Pros:
Price, Light Weight
Cons:
Low Quality, Unreliable
Everything Was Great Right Out Of The Package
By Jorge V.
Texas
Review Posted 05/04/2022
Delivery was excellent, and no damages or scratches I finally got it plugged in and working. I had to wait for an electrician to run the plug and for the automatic drain valve to arrive so I could install everything. The compressor is quieter than most, and it performs excellent for now time will tell. I'll try to give an update a year from now.
Jorge V. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Easy To Use, Price, Id Buy It Again, Easy To Store
Cons:
Bad Instructions
Great Product
By Keith S.
Sparta, Wisconsin
Purchased 11/27/2021 |
Review Posted 01/21/2022
Great product would recommend it anyone.
Keith S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Reliable, High Quality
So Far So Good
By Edward C.
State Road, North Carolina
Purchased 11/02/2020 |
Review Posted 01/06/2021
Good so far. As with any equipment, time will tell.
Edward C. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Quiet, Easy To Use, Id Buy It Again
Looks Very Good. Time Will Tell How Good It Is.
By Edward C.
State Road, North Carolina
Purchased 11/02/2020 |
Review Posted 11/24/2020
So far so good. Just installed and works fine. Quieter than expected. Time will tell.
Edward C. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Price, Quiet, Easy To Use
Good Value
By Richard C.
Waynesville, North Carolina
Purchased 07/18/2020 |
Review Posted 08/21/2020
It’s definitely a step above what I was using. If you plan on doing a lot of autobody work you may want to step up a size, however for the home weekend mechanic and occasional paint and body it is just fine. I put mine outside in a covered shed because I thought it would be loud in the shop but it’s actually pretty quiet. No problems so far on a 30 amp circuit with 10 gauge stranded wire. I did have to add some oil to the pump that had leaked out. It shipped quickly though and I am satisfied with both the product and service I received.
Richard C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Quiet
Nice Unit
By Jeff G.
Blackshear, Georgia
Purchased 04/30/2019 |
Review Posted 06/30/2019
Nice compressor. It gets the job done a fairly quiet.
Jeff G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Quiet
So Far It’s Been A Great Compressor
By Kyle J.
Richardton, North Dakota
Purchased 03/18/2019 |
Review Posted 04/12/2019
Replace all the cheap China brass with USA, make sure to get an air dryer also and other than that it works great.
Kyle J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
3/5
5/5
4/5
Pros:
Easy To Use, Durable, Quiet, Fast
Cons:
Low Quality, Packaging
Good Deal So Far
By Dennis M.
Manchester, Georgia
Purchased 01/24/2018 |
Review Posted 02/18/2018
It is everything I thought it would be.
Dennis M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Easy To Use, High Quality, I'd Buy It Again
Cons:
Not sure if could call it quite
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
What are the duty cycle and pump bearing life rated at?
Josh
from Wisconsin
February 23, 2020
