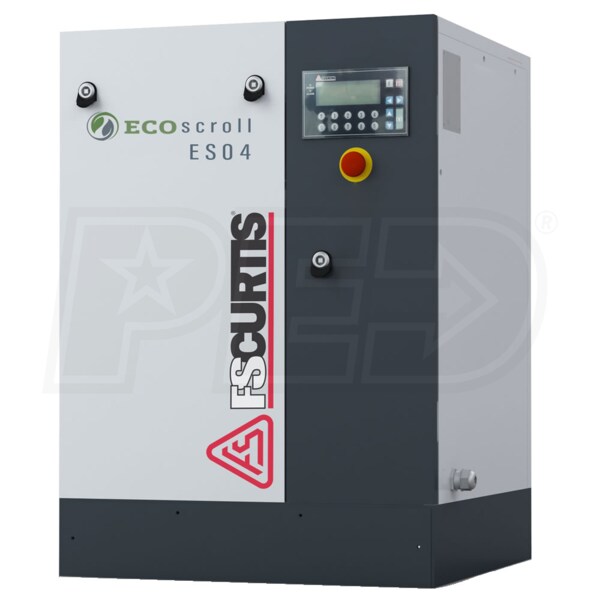

FS-Curtis ES04 ECO Scroll 5-HP Tankless Oil-Free Air Compressor (460V 3-Phase)
Model:
FES04AXX4QXXX
+
Share This Product
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
14.5
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ISO 8573-1 CLASS 0 Certified Compressor (Not For Medical Use)
- Energy efficient, easy to operate and maintain, quiet and compact
- Provides 100% oil-free air for critical applications: electronics, pharmaceutical, hospitals, dental, food & beverage, etc.
- Smart User-Friendly Controller
- Simple and easy to operate, informative menus allows user to program maintenance alerts for consumables
- Real-time status monitoring of pressure & temperature; multiple protections with warning & shutdown alarms
- Whisper Quiet
- 57 dBA noise level with ultra low vibration is about as loud as a conversation at work; saves installation space
- Powerful & Energy Efficient
- Highly efficient TEFC IE3 motor is designed for 100% duty cycle with stop/start control
- Exclusive ECO-Series Scroll Airend
- Delivers 14.5 CFM at 116 PSI; lower carbon footprint is environmentally friendly
- Fewer moving parts result in higher reliability; not as sensitive to intermittent operation or short-cycling as rotary units
- Centrifugal Cooling Fan
- Keeps heat exchange efficient and quiet
- Ecologically Conscious
- Lower carbon footprint, promotes energy conservation by avoiding the use of oil
- 2 Year Factory Warranty
- Protects your investment with the use of genuine FS-Curtis maintenance materials
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FES04AXX4QXXX
Engine
HP
5
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
57
Amp Draw
6.5
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.5
CFM Rated @
116 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
116 PSI
Pump Type
Scroll Compressor
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
331 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
25.25 Inches
Product Width
33.6 Inches
Product Height
35.25 Inches
