FS-Curtis NxB-11 15-HP 80-Gallon Rotary Screw Air Compressor Ultra Pack w/ Dryer (460V 3-Phase 150PSI)

Model:

FNB11B8UTKXXX

Write A Review
$15,352.76
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

FS-Curtis NxB-11 15-HP 80-Gallon Rotary Screw Air Compressor Ultra Pack w/ Dryer (460V 3-Phase 150PSI)
FS-Curtis NxB-11 15-HP 80-Gallon Rotary Screw Air Compressor Ultra Pack w/ Dryer (460V 3-Phase 150PSI)
Model: FNB11B8UTKXXX
$15,352.76
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

58

Tank Size

80

  • Premium Efficiency 11kW TEFC Motor
  • Produces 15HP on a 460 volt, 3-phase circuit
  • Full voltage motor starter meets 100% continuous duty demands
  • eCool Technology
  • Exclusive technology provides protection from heat
  • Reduces thermal stress, increasing motor & electrical life up to 50%
  • Increases service life for bearings, hoses, & seals up to 30-50%
  • Designed For Quiet Operation
  • Smooth & quiet integration of centrifugal blower & drive motors
  • Extra-thick insulation reduces noise
  • Spin-On Air / Oil Separator
  • 1 to 3 PPM oil carryover produces higher quality air; saves money
  • Easy access for quick maintenance
  • iCommand Controller
  • Intuitive & easy to use; precisely delivers compressed air to usage
  • Ultra Pack Prefilter & Integrated Refrigerated Dryer
  • Saves floor space while producing cooler, dryer air

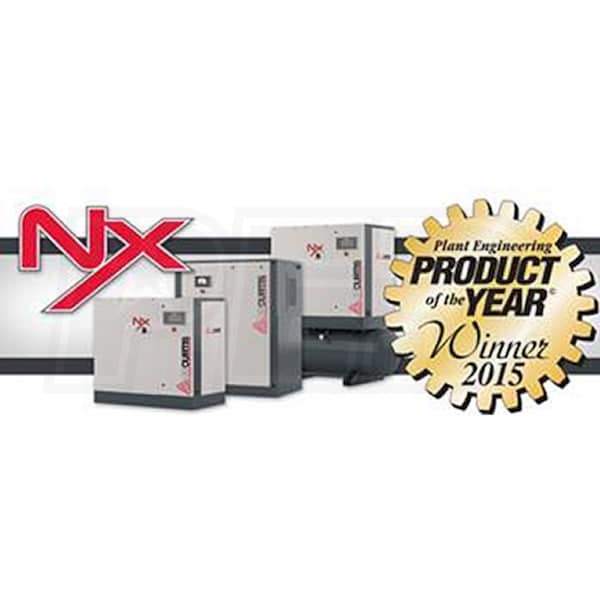

  • Award Winning Rotary Screw Dependability
  • Space-saving design delivers pulsation-free air
  • 1 year Factory Warranty extends with registration & FS-Curtis kit
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FNB11B8UTKXXX
specs product image PID-50450
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
58
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
No
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
936 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
61 Inches
Product Width
26 Inches
Product Height
67 Inches
Power Type
Electric
Additional Model Numbers

FNB11B8U4KXXX, FNB11B8UTKXXX
