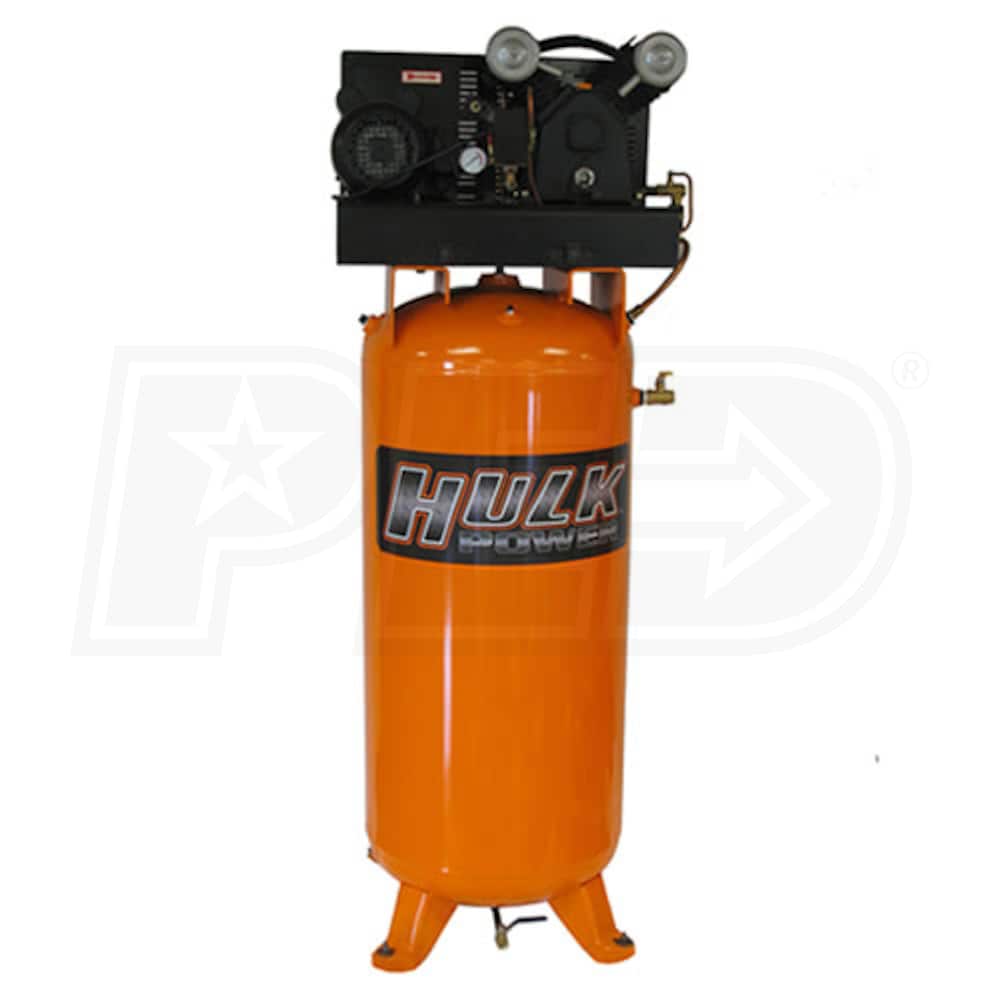

HULK 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)

Model:

HP03V060S1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
HULK 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
HULK 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model: HP03V060S1
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

11.2

Tank Size

60

  • Solid Cast Iron Pump
  • Designed for extended life
  • Heavy Duty 3-HP Induction Motor
  • Designed for maximum performance and efficiency
  • 60-Gallon Air Receiver
  • Provides more air for longer run times on air tools
  • OSHA Approved Belt Guard
  • Heavy duty steel design provides safety and piece of mind
  • Spread Voltage Motor
  • Operates on 208V or 230V
  • Easy Access Drain Valve
  • Makes it simple to keep moisture out of the pump and tank
  • Oil-Level Site Glass
  • Easily check the oil level at a glance
  • Low RPM Pump
  • Up to 90% slower & up to 70% quieter than other brands
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

HP03V060S1
specs product image PID-3793
Engine
HP
3
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Overview
Weight
400 Pounds
Consumer Warranty
3 Years
Commercial Warranty
2 Years
Product Length
30 Inches
Product Width
22 Inches
Product Height
71 Inches
Power Type
Electric
UPC
815002010045
