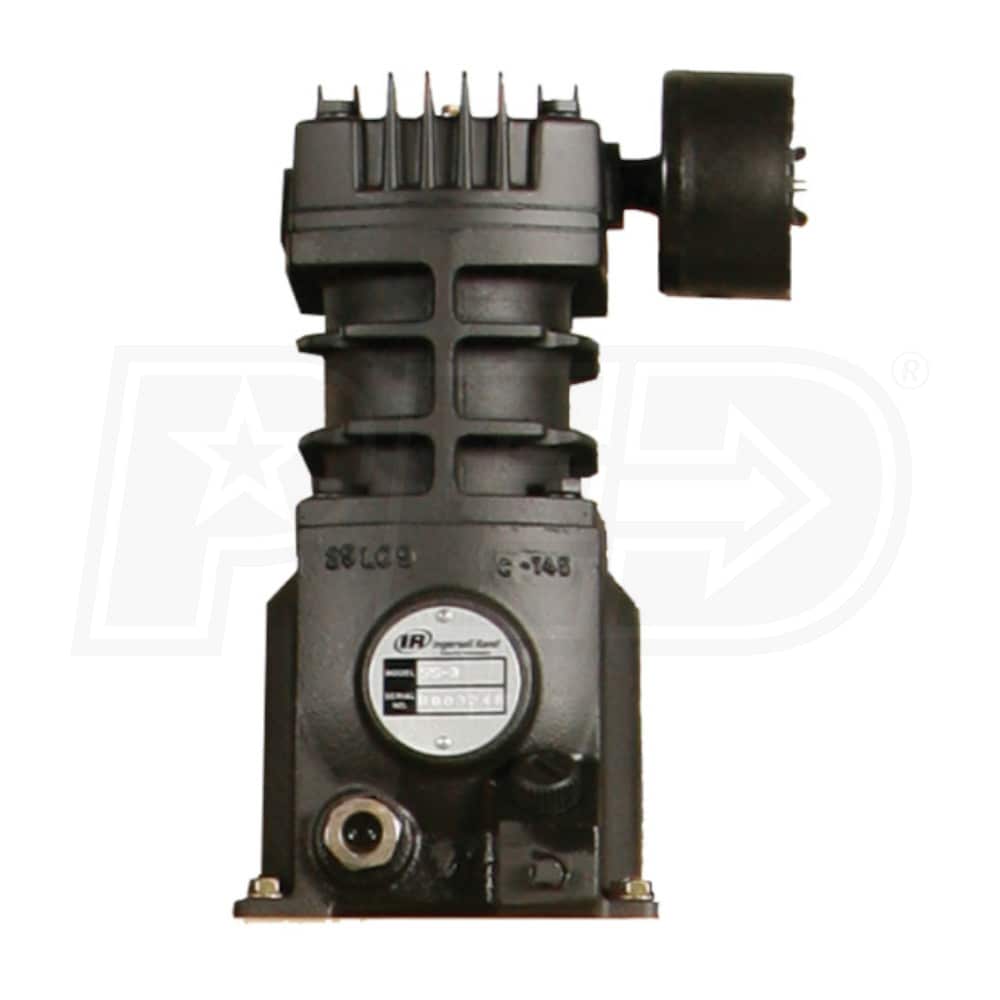

Ingersoll Rand 5-HP Single-Stage Bare In-line Twin Air Compressor Pump for IR SS4 & SS5 Compressors (15.5 CFM @ 135 PSI)
Model:
18002386
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 5-HP Ingersoll Rand SS4 & SS5 OEM Replacement Pump
- Continuous-duty operation provides maximum performance
- Cast iron construction and precision-engineered quality components
- Durable 2 Cylinder Cast Iron Pump
- Produces 18.1 CFM @ 90 PSI; 15.5 CFM @ 135 PSI
- Single-stage splash lubricated belt-driven pump; 135 PSI max
- 1000 Maximum RPM
- Delivers high performance; 500 minimum RPM
- 104 deg.F maximum operating temperature
- Rugged Cast Iron Flywheel
- Balanced to keep vibration to a minimum and smoothes out delivery of power
- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 33.8 oz. capacity oil reservoir (Pump oil not included)
- Specifications:
- Bore: 3.5" & 3.5"
- Stroke: 2.5"
- Sheave OD: 14.8"
- Sheave PD: 14.5"
- Inlet size: 3/4" NPT
- Discharge size: 1/2" NPT (Gas-3/8")
- Belt Type / Quantity: 1/A (Gas-BX)
- Compatibility:
- Only fits Ingersoll Rand SS4 & SS5 compressor
- 1-Year Limited Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
18002386
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.5
CFM Rated @
135 PSI
CFM @ 90 PSI
18.1
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
106 Pounds
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
14 Inches
Product Height
21 Inches
UPC
678384023863
