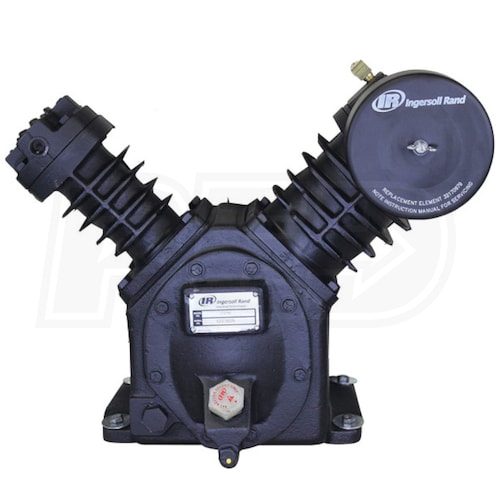

Ingersoll Rand 5/7.5-HP Two-Stage Bare Electric V-Twin Air Compressor Pump for IR 2475 Compressor (16.8/24 CFM @ 175 PSI
Model:
18002402
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 5 / 7.5-HP Ingersoll Rand 2475 Electric OEM Replacement Pump
- Provides maximum performance and efficiency
- Two-stage splash lubricated belt-driven pump; 175 PSI max
- Cast iron construction and precision-engineered quality components
- Durable 2 Cylinder Cast Iron Pump
- 5HP - 17.1 CFM @ 125 PSI; 16.8 CFM @ 175 PSI
- 7.5HP - 24.2 CFM @ 125 PSI; 24 CFM @ 175 PSI
- Easy to repair removable cylinders with 360 degree radial fins to eliminate hot spots
- Separately cast individually bolted, V-type configuration & precision honed for low oil carryover
- 1040 (5 HP) & 1500 (7.5 HP) Maximum RPM
- Delivers high performance; 575 minimum RPM
- 100 deg.F maximum operating temperature
- Rugged Cast Iron Flywheel
- Balanced to keep vibration to a minimum
- Fan type flywheel forces a "cyclone" air blast to provide cooling cylinders and intercooler
- Continuous-Duty Operation
- Precision-balanced overhung crankshaft runs smoothly and quietly
- Oversized cast-iron balanced belt wheel and industrial-grade bearings
- Durable canister inlet filter, one-piece connecting rod, and reliable stainless steel valves
- Finned copper intercooler lowers operating temperature, extends pump life & improves efficiency
- Specifications:
- Bore: 4" & 2.5"
- Stroke: 2.75"
- Sheave OD: 13.75"
- Sheave PD: 13.5"
- Inlet size: 1" NPT
- Discharge size: 0.5" NPT
- Belt Type / Quantity: A/1
- 41 oz. capacity oil reservoir (Pump oil not included)
- Compatibility:
- Only fits Ingersoll Rand 2475 electric-driven reciprocating compressors
- 1-Year Limited Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
18002402
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16.8-24
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
189 Pounds
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
28 Inches
Product Height
27 Inches
UPC
678384024020
