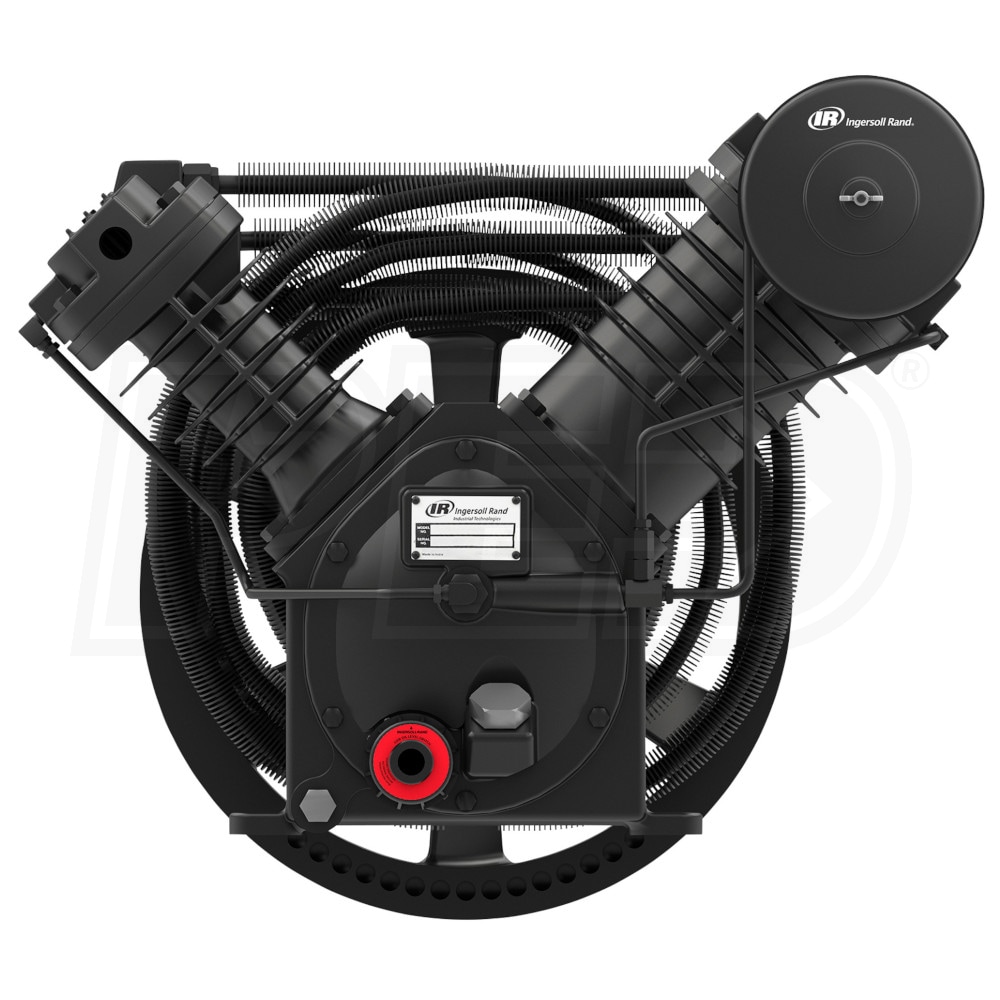

Ingersoll Rand 10-HP Two-Stage Bare V-Twin Air Compressor Pump for IR 2545 CSC Compressor w/ Low Oil Level Switch (35 CFM @ 175 PSI)

Model:

18002428

Write A Review
$2,799.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Ingersoll Rand 10-HP Two-Stage Bare V-Twin Air Compressor Pump for IR 2545 CSC Compressor w/ Low Oil Level Switch (35 CFM @ 175 PSI)
Ingersoll Rand 10-HP Two-Stage Bare V-Twin Air Compressor Pump for IR 2545 CSC Compressor w/ Low Oil Level Switch (35 CFM @ 175 PSI)
Model: 18002428
$2,799.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The CSC (constant speed control) is the Premium version with a low oil level switch and unloads through the valves.  This version can also run on the AS&S version (auto start and stop) by setting the pilot valve accordingly.
  • 10-HP Ingersoll Rand 2545 CSC Electric OEM Replacement Pump
  • Provides maximum performance, efficiency & low oil switch
  • Two-stage splash lubricated belt-driven pump; 175 PSI max
  • Cast iron construction and precision-engineered quality components
  • Durable 2 Cylinder Cast Iron Pump
  • Produces 35.2 CFM @ 125 PSI; 35 CFM @ 175 PSI
  • Easy to repair removable cylinders with 360 degree radial fins to eliminate hot spots
  • Separately cast individually bolted, V-type configuration & precision honed for low oil carryover
  • 1040 Maximum RPM
  • Delivers high performance; 612 minimum RPM
  • 115 deg.F maximum operating temperature
  • Rugged Cast Iron Flywheel
  • Balanced to keep vibration to a minimum
  • Fan type flywheel forces a "cyclone" air blast to provide cooling cylinders and intercooler
  • Low Oil Level Switch
  • Provides constant protection from running at low oil condition
  • Continuous-Duty Operation
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Oversized cast-iron balanced belt wheel and industrial-grade bearings
  • Durable canister inlet filter, one-piece connecting rod, and reliable stainless steel valves
  • Finned copper intercooler lowers operating temperature, extends pump life & improves efficiency
  • Specifications:
  • Bore: 5" & 2.75"
  • Stroke: 3.5"
  • Sheave OD: 18"
  • Sheave PD: 17.6"
  • Inlet size: 1.25" NPT
  • Discharge size: 0.75" NPT
  • Belt Type / Quantity: B/1
  • 73 oz. capacity oil reservoir & oil sight glass (Pump oil not included)
  • Compatibility:
  • Only fits Ingersoll Rand 2545 CSC electric-driven reciprocating compressors w/ low oil level switch
  • 1-Year Limited Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

18002428
specs product image PID-153398
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Overview
Product Category
Air Compressor Parts
Weight
270 Pounds
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
27 Inches
Product Height
21 Inches
UPC
678384024280
