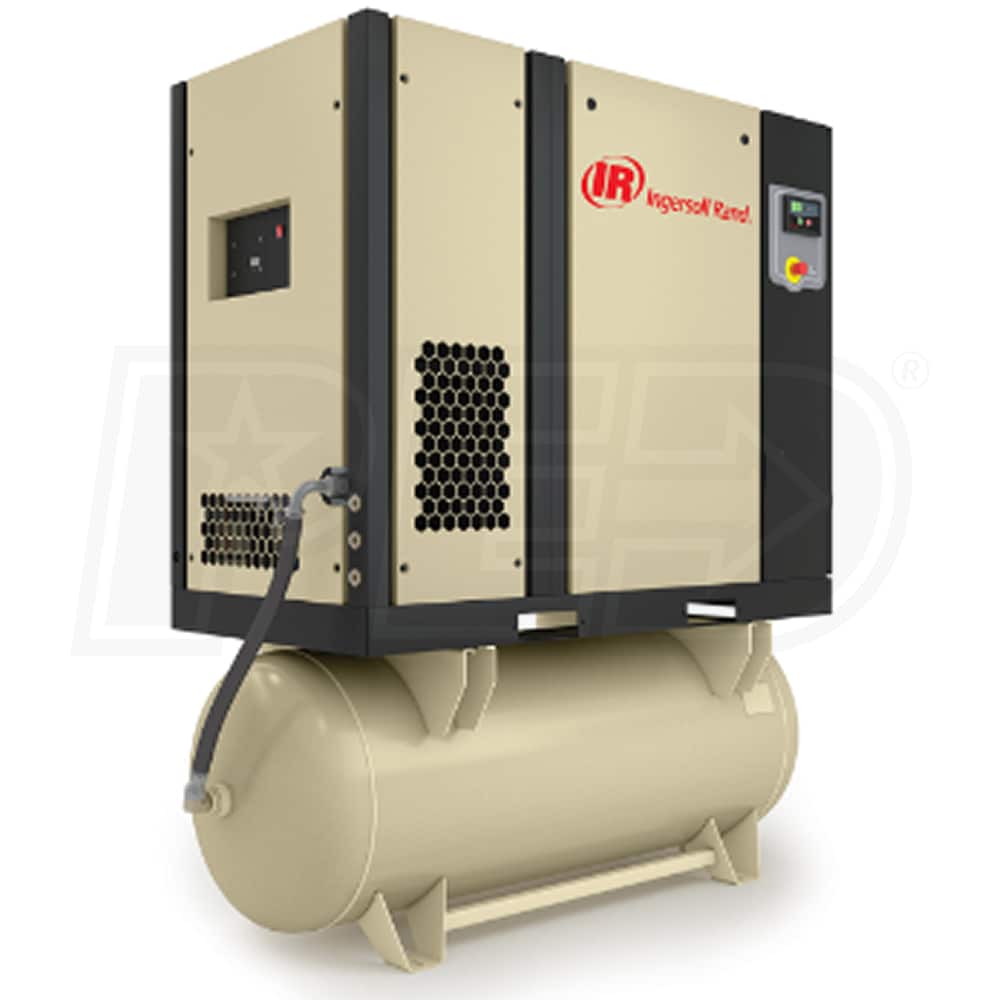

Ingersoll Rand Next Generation R-Series 20-HP 120-Gallon Rotary Compressor w/ Total Air System Dryer (460V 3-Phase 135PSI)
Model:
RS15I-A135-TAS.460V3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
88
Tank Size
120
- R-Series Next Generation Rotary Screw Air Compressor
- Easy to install, simple to operate and reliable efficiency
- New compact footprint design is 20% smaller than previous models
- Boosts productivity, lowers operating expenses and extends equipment life
- State Of The Art Airend
- Delivers up to 17.5% improved efficiency & 18% more airflow capacity
- Rotors are manufactured from AISI-1045 steel or EN 10083-2 C45+N steel
- Total Air System (TAS) Package
- 3-in-1 heat exchanger provides clean, dry air
- Includes space-saving, ready-to-run, pre-mounted dryer and filters
- Premium IE3 NEMA 4 High-Efficiency TEFC Motor
- Delivers low noise, high pressure with axial fan mounted
- Class F insulation with B rise, Star-delta reduced voltage starter, & NEMA 4/IP55 electronics provide reliable service
- Programmable Xe-Series Color Controller w/ Remote Connectivity
- Features start/stop control, auto-restart & manual load/unload
- Multiple screens of compressor information and setup data and tabbed folders for ease of navigation
- Continuous Duty & Quiet Operation
- Allows for installation closer to point-of-use
- Rotary screw produces steady air flow, day in, day out
- V-Shield Technology
- Stainless steel air piping & metal-flex hoses have leak-free connections with superior elastometric seals
- Free-Floating Cooling System Rated For 115°F (46°C) Ambient
- Optimized, energy-efficient & low-noise centrifugal blower with electronic no-loss condensate drain
- Two-Stage Filtration & Seperation Elements
- Ensures increased uptime with and easy maintenance
- Long-life Ultra Coolant with 8,000-hour life included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RS15I-A135-TAS.460V3
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Amp Draw
36
Recommended Breaker
60 Amp Breaker
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
88
CFM Rated @
118 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1802 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
87 Inches
Product Width
46 Inches
Product Height
84.5 Inches
Power Type
Electric
