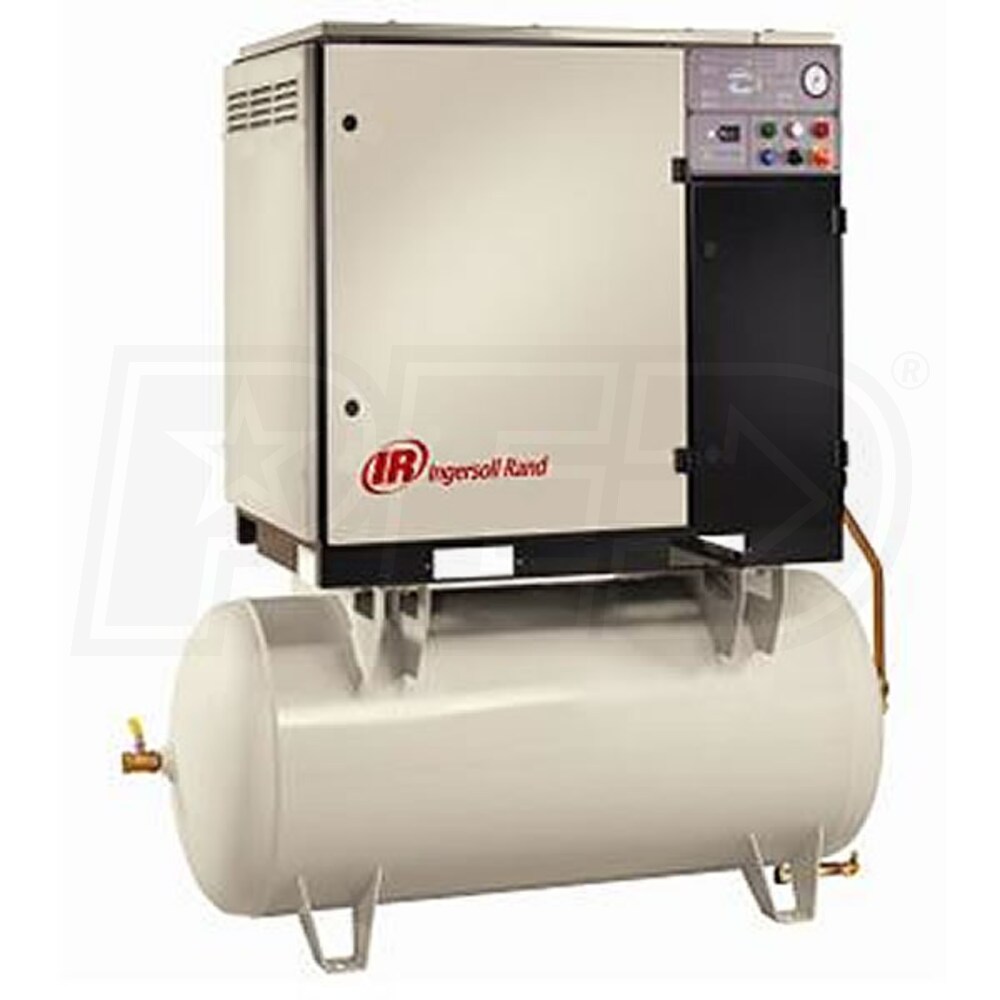

Ingersoll Rand 20-HP 120-Gallon Rotary Screw Air Compressor (460V 3-Phase 150PSI)
Model:
UP6-20-150.460-3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
75
Tank Size
120
- Energy Efficient
- More air for less horsepower reducing yearly energy cost
- Smart Energy Controls
- Eliminates running unloaded by cycling the compressor on/off
- Whisper Quiet Operation
- Allows for installation closer to point-of-use
- Sound levels as low as 68dBa
- Compact Footprint Design
- Frees up valuable floor space and reduces install costs
- Fewer Connections
- Eliminates leaks and pressures drops maximizing reliability
- Simple Diagnostics
- Displays operating status and run hours reducing downtime
- Poly-V Belt Drive
- Drive system eliminates belt stretch and increases air output
- High-Efficiency Filter
- Clean air quality to run tools and equipment long term
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UP6-20-150.460-3
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
75
CFM Rated @
150 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
1510 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
36 Inches
Product Height
71 Inches
Power Type
Electric
