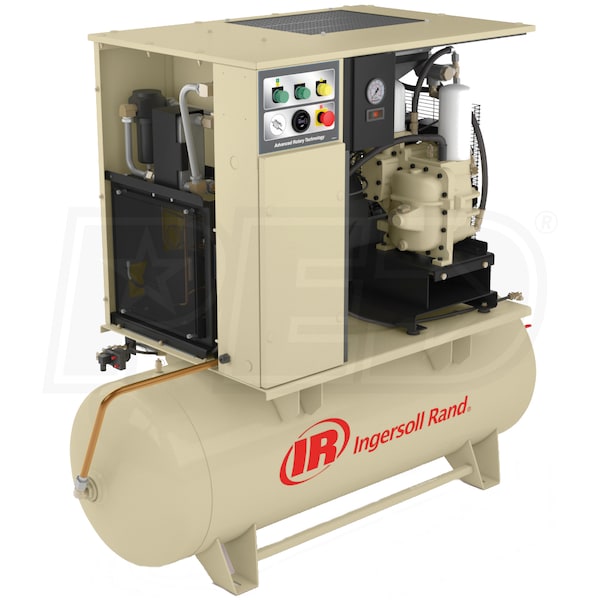

Ingersoll Rand 5-HP 80-Gallon Rotary Screw Total Air System (230V 1-Phase 150PSI)

Model:

UP6-5TAS-150.230-1

Write A Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Ingersoll Rand 5-HP 80-Gallon Rotary Screw Total Air System (230V 1-Phase 150PSI)
Ingersoll Rand 5-HP 80-Gallon Rotary Screw Total Air System (230V 1-Phase 150PSI)
Model: UP6-5TAS-150.230-1
Add to Cart for Price
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

16

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Compact And Efficient Rotary Screw Is Ideal For Industrial Use
  • Runs cooler, lasts longer in continuous duty applications
  • Total Air System (TAS) Refrigerated Dryer Is Energy Star Rated
  • Stainless steel heat exchanger
  • Easy To Operate With Smart, Energy Efficient Controls
  • Reliable and effective load/no load control with auto stop/start
  • Panel mounted dew point indicator
  • Dual Filters With Easy Access And Simple Ducting
  • Mounted and piped before and after the compressor
  • High Efficiency Moisture Separation
  • Single point condensate drain system
  • 115 volt electric drain needs to be plugged in separately
  • 70% Fewer Connections
  • Smart integration eliminates leaks & pressure drops
  • Maximizes reliability and profits with more air for your money
  • Whisper Quiet Operation Allows Installation Closer To Work Area
  • 65dBA ensures a better & safer work environment, reduces costs
  • 150 PSI Maximum Pressure; 230 Volt, Single Phase Power Required
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

UP6-5TAS-150.230-1
specs product image PID-2391
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
16
CFM Rated @
140 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1000 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
54 Inches
Product Width
29 Inches
Product Height
61 Inches
Power Type
Electric
