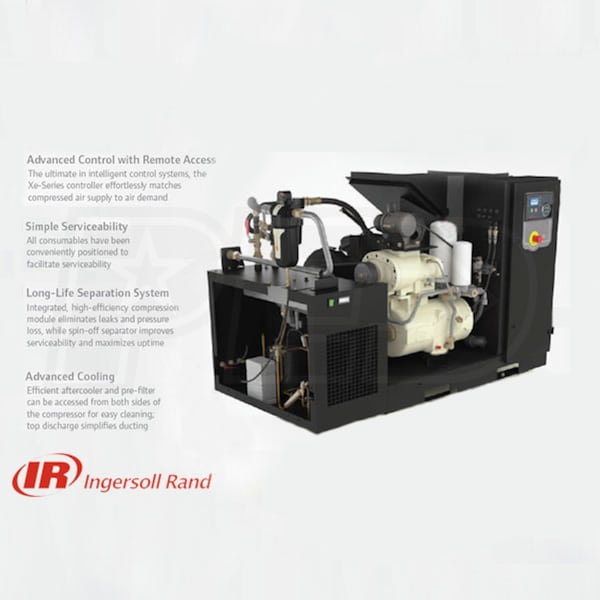

Ingersoll Rand 30-HP Tankless Total Air System Rotary Screw Compressor (208V 3-Phase 125 PSI) w/ Dryer
Model:
UP6S-30-125-TAS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
117
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Energy Efficient
- More air for less horsepower reducing yearly energy cost
- Whisper Quiet Operation
- Allows for installation closer to point-of-use
- Sound levels as low as 69dBa
- Power Outage Restart
- Automatically restores previous settings without manual intervention
- TEFC Tri-Voltage Motor
- Adapt the voltage to meet your needs
- Xe-70m Programmable Controller
- Easily monitor operation on-site or by remote access
- Built-in event logging helps maximize efficiency & motor life
- Poly-V Belt Drive
- Drive system eliminates belt stretch and increases air output
- V-Shield™ Technology
- PTFE hoses & face seal o-rings last longer & eliminate leaks
- Compact Footprint Design With NEMA 4 Enclosure
- Frees up valuable floor space & reduces install costs
- High-Efficiency Pre-Filter
- Prevents contaminants from entering the compressor package
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
UP6S-30-125-TAS
Engine
HP
30
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
117
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1536 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
67 Inches
Product Width
36 Inches
Product Height
42.5 Inches
Power Type
Electric
