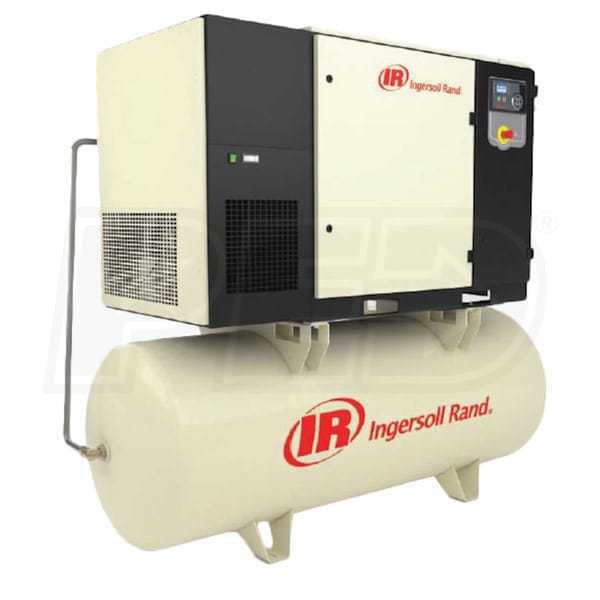

Ingersoll Rand 30-HP 240-Gallon Rotary Screw Air Compressor (208V 3-Phase 200 PSI)

Model:

UP6S-30-200-240

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ingersoll Rand 30-HP 240-Gallon Rotary Screw Air Compressor (208V 3-Phase 200 PSI)
Ingersoll Rand 30-HP 240-Gallon Rotary Screw Air Compressor (208V 3-Phase 200 PSI)
Model: UP6S-30-200-240
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

92

Tank Size

240



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Energy Efficient
  • More air for less horsepower reducing yearly energy cost
  • Whisper Quiet Operation
  • Allows for installation closer to point-of-use
  • Sound levels as low as 69dBa
  • Power Outage Restart
  • Automatically restores previous settings without manual intervention
  • TEFC Tri-Voltage Motor
  • Adapt the voltage to meet your needs
  • Xe-70m Programmable Controller
  • Easily monitor operation on-site or by remote access
  • Built-in event logging helps maximize efficiency & motor life
  • Poly-V Belt Drive
  • Drive system eliminates belt stretch and increases air output
  • V-Shield™ Technology
  • PTFE hoses & face seal o-rings last longer & eliminate leaks
  • Compact Footprint Design With NEMA 4 Enclosure
  • Frees up valuable floor space & reduces install costs
  • High-Efficiency Pre-Filter
  • Prevents contaminants from entering the compressor package
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

UP6S-30-200-240
specs product image PID-61638
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
30
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
92
CFM Rated @
200 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
240 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
1885 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
94 Inches
Product Width
36 Inches
Product Height
76.5 Inches
Power Type
Electric
