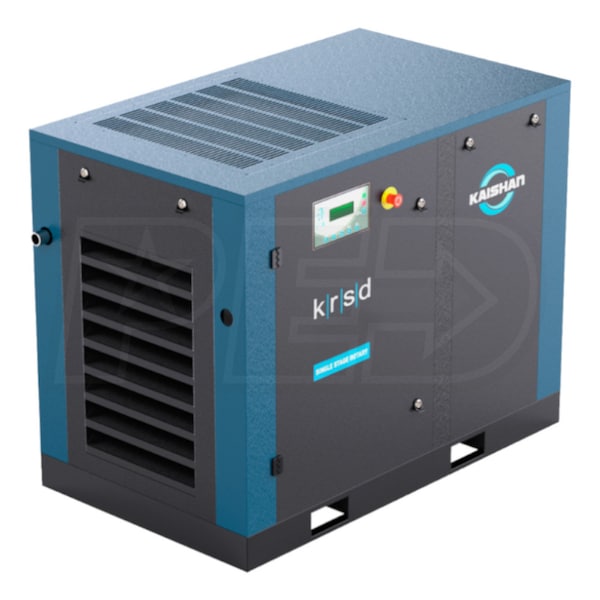

Kaishan 40-HP Tankless Direct Drive Rotary Screw Air Compressor (230V 3-Phase 125 PSI)
Model:
KRSD-040A1F2S8U
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
198
Tank Size
0
- KRSD Direct-Drive Series Fixed Speed Rotary Screw System
- Maximizes air output and reduces energy
- Power tools for manufacturing, automotive repair centers, or industrial applications
- High-Efficiency TEFC (IP54) Electric Motor w/ WYE Delta Starter
- IEC frame, class F insulation, and IE3 premium efficiency
- Long operating life, lower power use & reduced in-rush current
- Direct-Drive 1:1 Drive Ratio (No Gearbox)
- Large, slow running air end eliminates transmission energy loss
- Increases bearing life and flexible, easily removable coupling element
- MAM-200 Digital Control Panel
- Monitors and controls key compressor functions
- Protects in the event of a fault and alerts with built-in alarms
- External monitoring via RS 485 interface and programmed maintenance schedules
- Premium SKK Series Air End & Discharge Bearings
- Delivers maximum output with less energy usage
- Asymmetric 5/6 rotor profile and precision ground rotor machining
- SFK bearing absorbs radial and axial loads for longer life and quieter operation
- Heavy-Duty Low Sound Enclosure
- Ensures quiet operation and easy access for serviceability
- Industrial grade electrical UL Approved for outstanding reliability
- 316 stainless steel control tubing for lower service costs & less downtime
- Reliable System Operation
- High-efficiency air intake filters capture dust without impeding airflow
- Single-pass oil, integrated aftercoolers & axial cooling fans reduce heat
- Modulating inlet valve increases output and minimizes pressure drop
- 3-Stage Tangential Oil Separation
- Residual oil carryover limited to 3 PPM
- Lower particle contact results in lower pressure drop and energy
- Optimized mechanical pre-separation, reduced direct oil impingement on element
- Limited Manufacturer Warranty (Below 150 PSI)
- Air End - 10 Years, Main Motor / Major Components - 5 Years & Entire Package - 1 Year
Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
KRSD-040A1F2S8U
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Amp Draw
112
Recommended Breaker
Consult Certified Electrician
Engine
HP
40
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
198
CFM Rated @
115 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
2116 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
40 Inches
Product Height
52 Inches
Power Type
Electric
