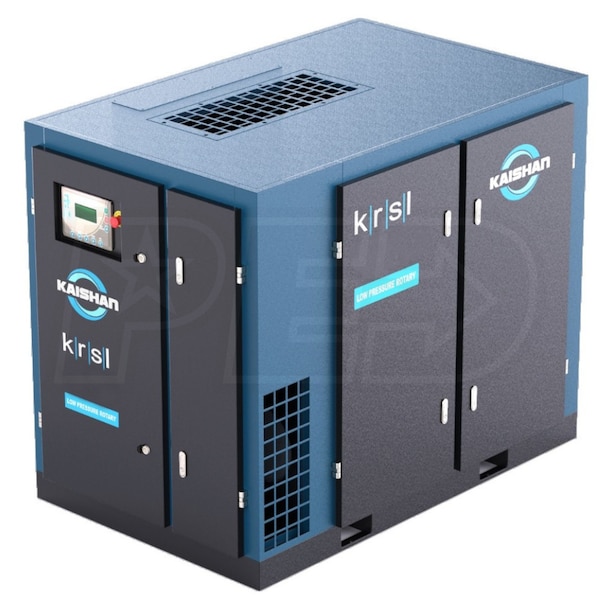

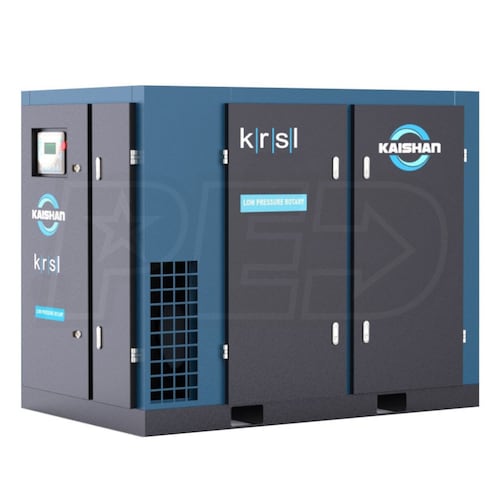

Kaishan 200-HP Tankless Low Pressure Rotary Screw Air Compressor (460V 3-Phase)

Model:

KRSL-200A9F4S8U

Write A Review
Kaishan 200-HP Tankless Low Pressure Rotary Screw Air Compressor (460V 3-Phase)
Kaishan 200-HP Tankless Low Pressure Rotary Screw Air Compressor (460V 3-Phase)
Model: KRSL-200A9F4S8U
Call 1 (866) 437-8002 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 3-5 Business Days
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

2050

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • KRSL Low-Pressure Rotary Screw System
  • Effectively handle applications ranging from 25 to 45 PSI
  • High-Efficiency TEFC (IP54) Electric Motor w/ WYE Delta Starter
  • IEC frame, class F insulation. and IE3 premium efficiency
  • Long operating life, lower power use & reduced in-rush current
  • Direct-Drive 1:1 Drive Ratio (No Gearbox)
  • Large, slow-running air end eliminates transmission energy loss
  • Increases bearing life and flexible, easily removable coupling element
  • MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and can sync up to 16 compressors
  • Premium SKYv Series Air End & Discharge Bearings
  • Handles increased load-carrying capacity
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation
  • Variable Discharge Port
  • Pressure flexibility between 24 to 45 PSI and minimizes power consumption
  • Optimizes energy efficiency by adjusting internal compression ratio to match demand
  • Heavy-Duty Sound Deadening Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime
  • Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Modulating inlet valve increases output and minimizes pressure drop
  • Integrated aftercoolers and cooling fans for high ambient temperatures
  • 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element
  • Limited Manufacturer Warranty
  • Air End Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

KRSL-200A9F4S8U
specs product image PID-153059
Engine
HP
200
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Amp Draw
293
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2050
CFM Rated @
30 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
45 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
5-Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
13051 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
157 Inches
Product Width
81 Inches
Product Height
88 Inches
Power Type
Electric
