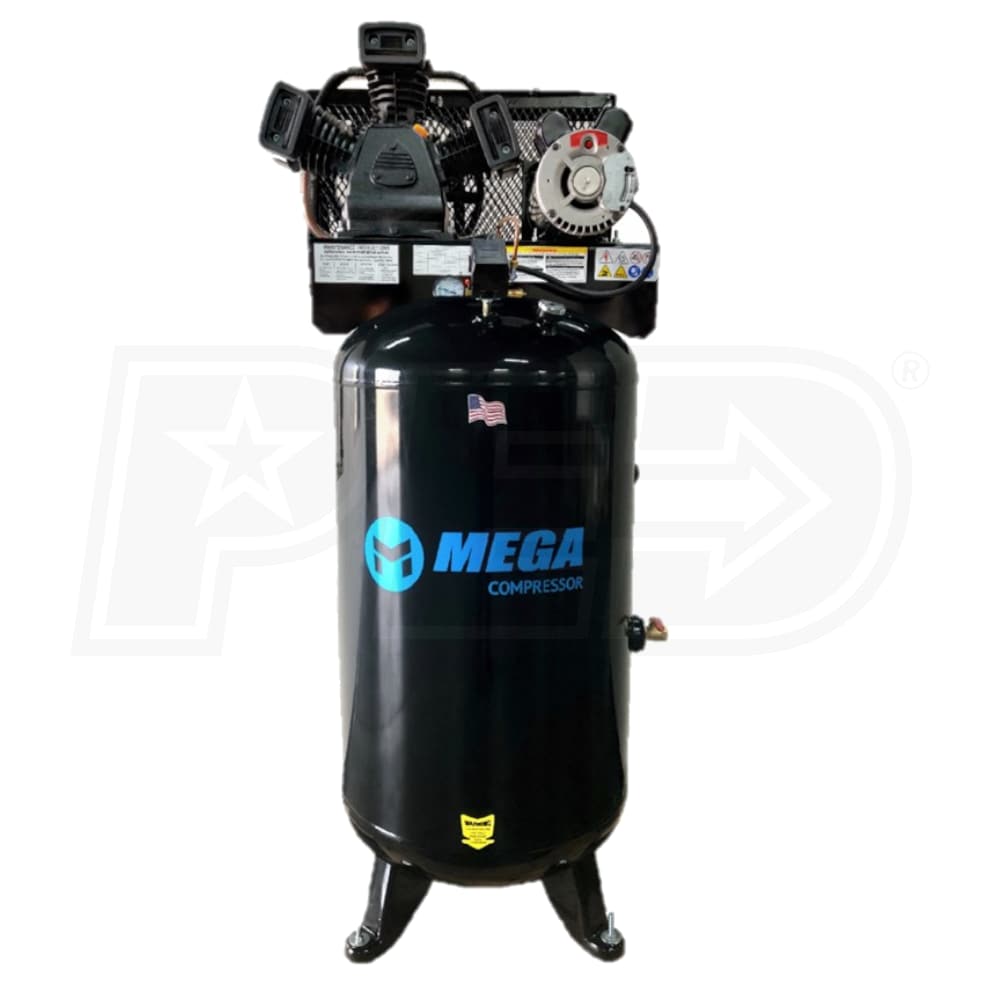

MEGA 5-HP 80-Gallon Single-Stage Air Compressor (208/230V 1-Phase - 150 PSI)
Model:
MP-6580VC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
9
Model: 21999-0177
$104.99
In-Stock
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: R-03050
$233.00
Factory-Direct
$2,449.00
Only 2 In-Stock
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: DXCM024-0400
$209.00
Factory-Direct
Model: FA40IH
$231.99
In-Stock
$235.00
Only 2 In-Stock
Model: 21999-0415
$391.50
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
18
Tank Size
80
- MEGA Single-Stage Air Compressor
- Perfect for DIY projects to the professional air compressor user
- Heavy-Duty 5-HP Induction Motor
- 208/230-volt single-phase motor
- Provides maximum performance and efficiency
- Delivers 18 CFM @ 90 PSI: Max 150 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Cast Iron V-Twin Oil Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- "W" Design
- Minimizes vibration, improves cooling, extends compressor life
- One-Piece Cast Iron Crankcase
- Durable automotive-style ball bearings
- Stainless steel reed valves for increased volumetric efficiency
- 80-Gallon Vertical Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 1-Year Limited Manufacturer Warranty
- Protect your investment
- Shipped with 100% full synthetic air compressor oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-6580VC
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
18
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
508 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
34 Inches
Product Width
32 Inches
Product Height
74 Inches
Power Type
Electric
UPC
376204971508
Reviews
(7)
MEGA Compressor MP-6580VC Reviews & Ratings
Customer Photos and Videos
Verified Buyer
Good Compressor But.
By Roger K.
Idaho
Purchased 10/17/2024 |
Review Posted 12/02/2024
Would have given a full five but it arrived damaged.
The valve on the compressor motor was damaged and the compressor would not compress air. I took the valve off my old compressor motor. It works now. They should send replacement valve.
The valve on the compressor motor was damaged and the compressor would not compress air. I took the valve off my old compressor motor. It works now. They should send replacement valve.
Roger K. Recommends This
Was this review helpful?
Rating Breakdown
4/5
2/5
3/5
4/5
Pros:
Easy To Use, Price
Verified Buyer
Compressor
By Andrew E.
Tennessee
Purchased 07/08/2024 |
Review Posted 09/25/2024
Works great, very quiet, inside shop.
Andrew E. Recommends This
Was this review helpful?
Rating Breakdown
3/5
4/5
4/5
4/5
Pros:
Easy To Use, Price, I39d Buy It Again
23cfm@90psi Best In Its Class
By Jeremy G.
South Carolina
Review Posted 07/14/2024
I called Mega and asked how many CFM@90psi because every store I looked at this model compressor, CFM was different. They informed me it makes 23cfm@90 psi. That’s the highest in its class: everything about this compressor is high quality and craftsmanship. Mega even includes a shut-off valve (which other manufacturers do not).
Motor is a very heavy duty industrial grade, and not loud at all. I bought this to run my HF upgraded blast cabinet with an upgraded gun,, and it has not run out on me yet. Best HF blast cabinet you can buy.
(Excuse my photo, when the picture was taken, I was still installing an aftercooler.)
Motor is a very heavy duty industrial grade, and not loud at all. I bought this to run my HF upgraded blast cabinet with an upgraded gun,, and it has not run out on me yet. Best HF blast cabinet you can buy.
(Excuse my photo, when the picture was taken, I was still installing an aftercooler.)
Jeremy G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, High Quality, Exceeded Expectations, Highest CFM in its class
Cons:
None
CONSTANT PRESSURE
By John
Oregon
Review Posted 06/07/2024
I use this for a blast cabinet. It keeps constant sand-blasting pressure the entire time. It fills fast and the motor is enough to provide blasting pressure just on its own without the tank even being full. I timed how long the tank would take to empty with an air tip and it took 13 minutes to completely empty at full pressure. My old tank would empty in about 4 minutes. This tank is assembled in Texas and the quality shows. It's simple to set up and I know if I maintain it properly it will last decades,
John Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Verified Buyer
Nice Compressor
By Willie M.
Kentucky
Purchased 01/06/2024 |
Review Posted 03/06/2024
Nice looking compressor, works well, easy to connect to the electrical.
Willie M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Verified Buyer
Mega Air Compressor
By Rob H.
Minnesota
Purchased 08/31/2023 |
Review Posted 09/16/2023
Received air compressor quickly. It was packaged nicely and arrived as expected. Working on getting hooked up.
Rob H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Price
Cons:
None
Verified Buyer
Never Recieved Service Kit
By Kevin B
Florida
Purchased 02/09/2023 |
Review Posted 04/15/2023
Filled out all stuff required for free service kit and never received it. Also have noticed a little bit of oil leak from compressor and noise from motor. Waiting to see what becomes of both, before submitting problem claim.
Kevin B Recommends This
Was this review helpful?
Expert Response
Thank you providing feedback about your order. We have reached out the the manufacturer and they will be contacting you about the issue.
Melissa C.
Air Compressor Expert
Rating Breakdown
2/5
3/5
3/5
4/5
Pros:
Easy To Use, Price
