Parker Finite 1" Inline Desiccant Air Dryer (30 CFM)

Model:

FDD30-08

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Parker Finite 1
Parker Finite 1" Inline Desiccant Air Dryer (30 CFM)
Model: FDD30-08
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Desiccant

Air Dryer CFM

30
  • Removes Residual Water Vapor & Aerosols
  • Simple & reliable way to keep moisture from sensitive equipment
  • Dewpoints are attainable to -40°F

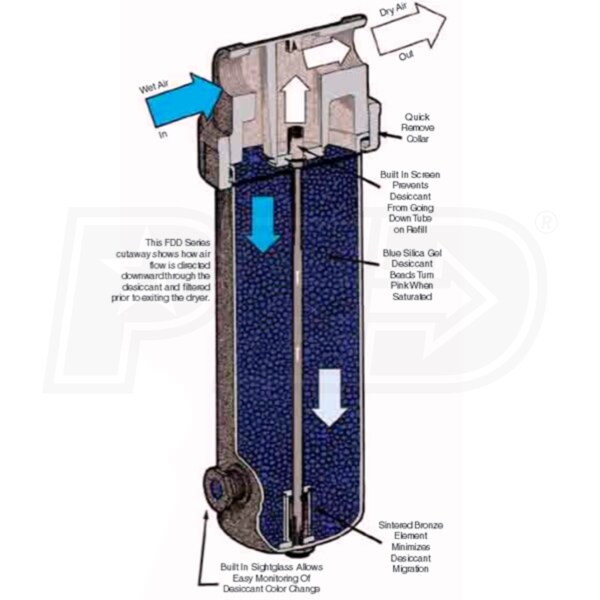

  • Silica Gel Bead Adsorptive Desiccant
  • Water molecules are trapped on the surface of the silica beads
  • Average surface area for each bead is over 200 ft²
  • Efficient Filtering
  • Beads start out blue then turn pink when saturated
  • Beads can be easily replaced or regenerated when saturated
  • Regenerate in a microwave or bake between 212° & 350°F
  • Sight Glass
  • Shows silica gel color for easy maintenance
  • Bowl holds 5 pounds of desiccant
  • Zinc Head & Steel Bowl
  • Sintered bronze elements prevent desiccant carry-over
  • Collar designed for easy desiccant changeouts
  • Wide Application Range For Intermittent Use
  • Optimum working temperature is below 100°F; 300°F maximum
  • Handles up to 30 CFM
  • Typically dries air for weeks before replacement or regeneration
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FDD30-08
specs product image PID-58015
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
30
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
180
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
100
Inlet Fittings
1"
Outlet Fittings
1"
Regenerative
Yes
Overview
Weight
3 Pounds
Product Length
4 15/16 Inches
Product Width
4 15/16 Inches
Product Height
23 1/4 Inches
