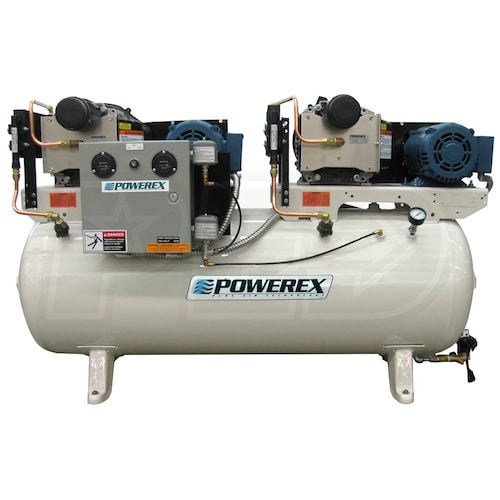

Powerex STD 10-HP 80-Gallon Duplex Oil-Less Open Scroll Air Compressor (460V 3-Phase 116 PSI)

Model:

STD050342

Write A Review
$15,973.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Powerex STD 10-HP 80-Gallon Duplex Oil-Less Open Scroll Air Compressor (460V 3-Phase 116 PSI)
Powerex STD 10-HP 80-Gallon Duplex Oil-Less Open Scroll Air Compressor (460V 3-Phase 116 PSI)
Model: STD050342
$15,973.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

30.4

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ISO 8573-1 Class Zero Oil-Free Air (Not For Medical Use)
  • Perfect for any application where completely clean, dry air is required
  • Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
  • Duplex System Mounts Two 5-HP Pumps & Motors
  • Alternating controls for balanced unit wear & performance; uses 5-HP or 10-HP to meet demand
  • Integral Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Extremely Quiet & Energy Efficient
  • 75 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
  • Low Maintenance Cost
  • The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
  • No oil contamination of your end product, powered equipment, or the environment

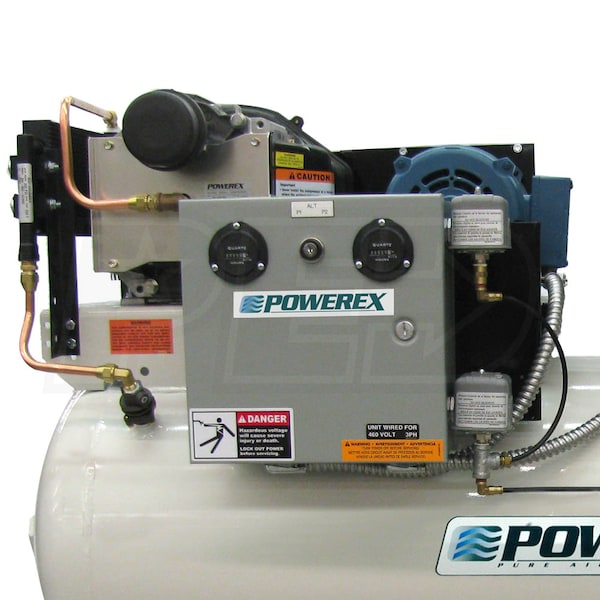

  • UL Listed Magnetic Starter
  • Safely & reliably starts the compressor; provides under-voltage and overload protection

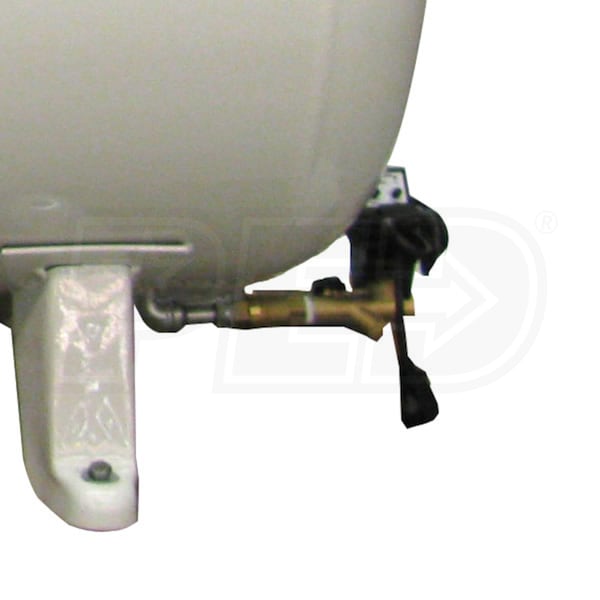

  • 80-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
  • Certified to meet ASME standards for your safety; rated up to 200 PSI (116 PSI maximum working pressure)
  • Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

STD050342
specs product image PID-77296
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
12.9
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
30.4
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
116 PSI
Pump Type
Scroll Compressor
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
610 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
26 Inches
Product Height
41 Inches
