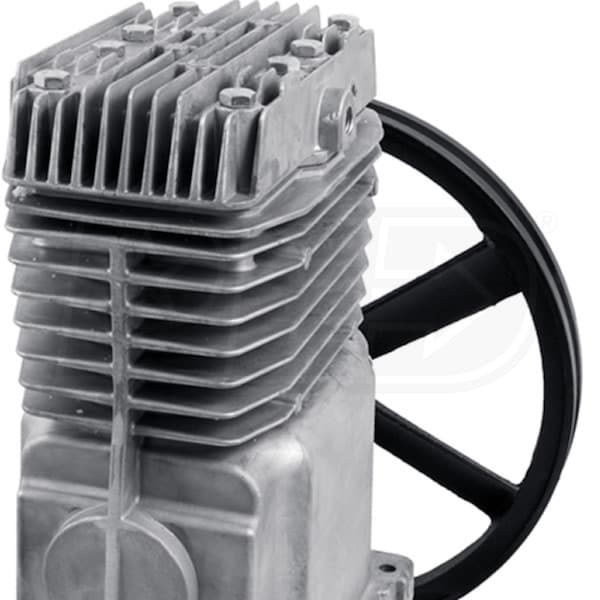

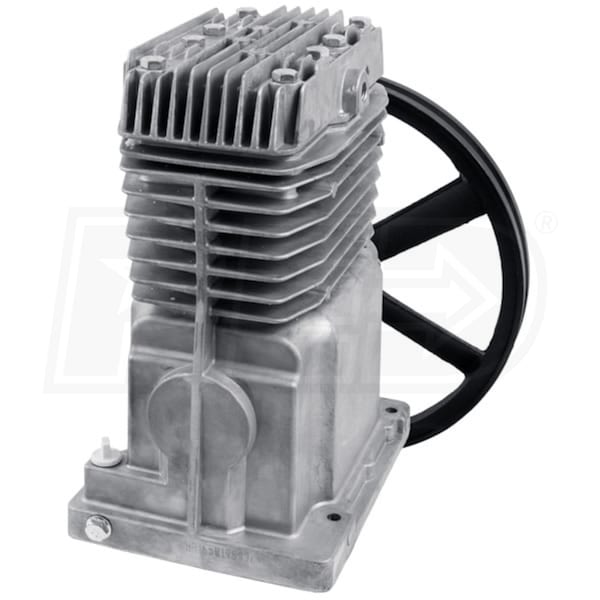

Powermate 3.1-HP Single-Stage Inline-Twin Replacement Air Compressor Pump w/ Cast Iron Cylinders (12.3 CFM @ 40 PSI)
Model:
040-0426RP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Aluminum Frame Singe Stage Inline-Twin Replacement Pump
- Designed to provide maximum performance and efficiency
- Produces 3.1 running horsepower
- Mounting pattern 5.87" W x 5.75" D (Depth)
- 4 bolting holes; 0.343 diameter per hole
- Durable 2 Cylinder Pump
- Develops 12.3 CFM at 40 PSI & 10.3 CFM @ 90 PSI
- Felt pad air filter included
- Aluminum head provides maximum pump cooling; 155 Max PSI
- 1000 Maximum RPM
- "A" (width) single v-belt
- Delivers high performance & longevity
- Rugged Cast Iron Flywheel & Crankcase
- 12" Flywheel diameter
- Balanced for best performance & durability
- Automotive-Style Ball Bearings
- Offers reliable stainless steel reed valves
- Provide optimum performance & extended pump life
- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 18 oz. capacity oil reservoir (pump oil not included)
- Compatibility
- Industrial Air and Magna Force
- Pump is not a direct replacement for any other brand
- 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040-0426RP
General Information
Product Category
Air Compressor Parts
Engine
HP
3.1
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
10.3
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
33 Pounds
Consumer Warranty
1 Year
Product Length
6.84 Inches
Product Width
11.43 Inches
Product Height
12.05 Inches
UPC
846212023631
Reviews
(54)
Powermate 040-0426RP Reviews & Ratings
Product Q&A
(4)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the minimum HP motor needed for this pump?
Bob B.
from Oregon
September 08, 2019
The specifications indicate that the maximum rpm is 1100-1200 RPM. Is this the maximum speed that the compressor should turn, or does it refer to the maximum speed of the motor used?
Fred V.
from New Mexico
July 06, 2019
What is the max operating temperature of this air compressor?
Phil
from Tennessee
July 18, 2018
What are the mounting bolt pattern dimensions?
John Moline
from Michigan
July 04, 2016
