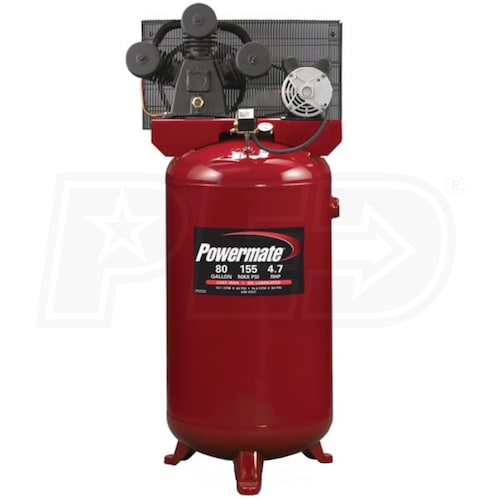

Powermate 4.7-HP 80-Gallon Single-Stage Air Compressor

Model:

PLA4708065

Write A Review
$1,529.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Powermate
Shipping to60601

Powermate 4.7-HP 80-Gallon Single-Stage Air Compressor
Powermate 4.7-HP 80-Gallon Single-Stage Air Compressor
Model: PLA4708065
$1,529.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

14

Tank Size

80

  • High Flow Single Stage Air Compressor
  • Produces 14 CFM at 90 PSI; powers a variety of air tools
  • Cast Iron, Oil Lubricated, 3 Cylinder Pump
  • Shipped with synthetic oil for optimum performance & long life
  • Oil level sight glass for easy maintenance
  • Heavy-Duty 240 Volt Induction Motor
  • 4.7 HP single phase motor pulls only 22 amps
  • Belt Drive
  • Reliable performance; produces 16.1 CFM @ 40 PSI, 14 CFM @ 90 PSI
  • 12" cast iron flywheel for reliable power transfer
  • Wire formed belt guard for more efficient cooling
  • 80 Gallon ASME Air Tank
  • Provides more air for longer tool run times
  • Large Intake Filters/Silencers
  • Better performance & quieter operation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PLA4708065
specs product image PID-9187
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
354 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212005859
