Quincy QRHT 100 3/4" High Temperature Non-Cycling Refrigerated Air Dryer (100 CFM) (115V 1-Phase)
Model:
4102001908
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
100
- High Temperature Refrigerated Non-Cycling Dryer
- Handles incoming air up to 180° F from compressors that don't have aftercoolers
- 3 In 1 Design
- Eliminates water, oil and dirt from compressed air
- Clean, Dry, Filtered Compressed Air
- Aftercooler, refrigerated dryer, moisture separator,
- Zero Loss drain, & coalescing filter work in harmony
- Reduces Operational Down Time
- Increases profitability & productivity
- Fewer Finished Product Defects
- Prevents "fisheye" paint splotches
- Eliminates air line purging; coalescing filter supplied
- Environmentally Safe Refrigerant (R404A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential
- Easy To Incorporate
- Uses 115V-1 phase power; handles 100 CFM at 100 PSI
- 3/4" NPT input; 232 maximum PSI; consumes 163KW
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4102001908
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
100
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
180
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
100
Non-Cycling
Non-Cycling

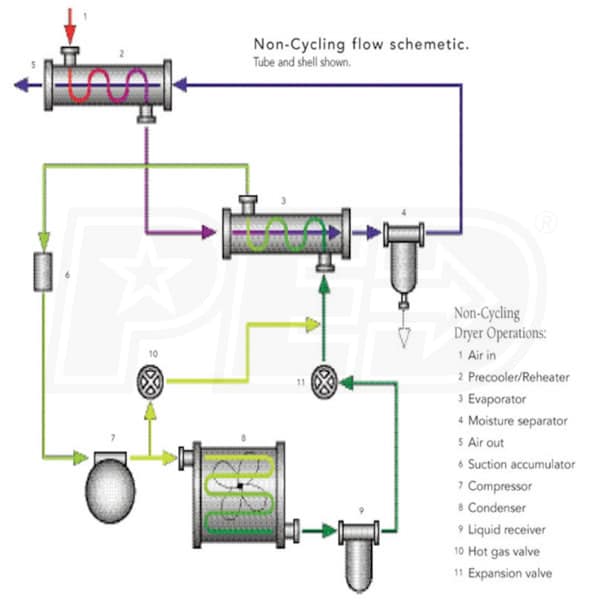

Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Product Category
Air Compressor Accessories
Weight
225 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
14 Inches
Power Type
Electric
UPC
791326012203
