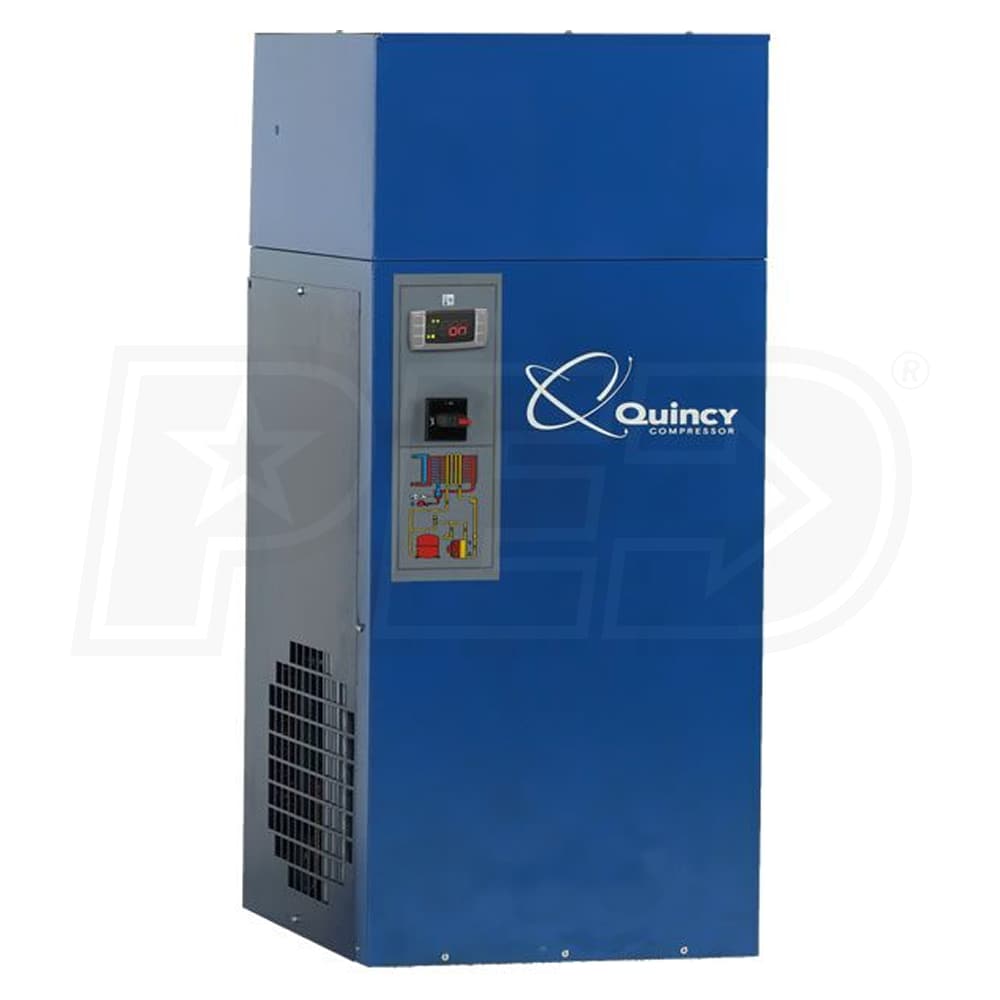

Quincy QRHT 125 3/4" High Temperature Non-Cycling Refrigerated Air Dryer (125 CFM) (115V 1-Phase)

Model:

4102001909

Write A Review
$6,749.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Quincy QRHT 125 3/4
Quincy QRHT 125 3/4" High Temperature Non-Cycling Refrigerated Air Dryer (125 CFM) (115V 1-Phase)
Model: 4102001909
$6,749.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

125
  • High Temperature Refrigerated Non-Cycling Dryer
  • Handles incoming air up to 108° F from compressors that don't have aftercoolers
  • 3 In 1 Design
  • Eliminates water, oil and dirt from compressed air
  • Clean, Dry, Filtered Compressed Air
  • Aftercooler, refrigerated dryer, moisture separator,
  • Zero Loss drain, & coalescing filter work in harmony
  • Reduces Operational Down Time
  • Increases profitability & productivity
  • Fewer Finished Product Defects
  • Prevents "fisheye" paint splotches
  • Eliminates air line purging; coalescing filter supplied
  • Environmentally Safe Refrigerant (R134a)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Easy To Incorporate
  • Uses 115V-1 phase power; handles 125 CFM at 100 PSI
  • 3/4" NPT input; 232 maximum PSI
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4102001909
specs product image PID-104220
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
125
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
180
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
100
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Alarm Lights
No
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Product Category
Air Compressor Accessories
Weight
236 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22.6 Inches
Product Width
18.1 Inches
Product Height
41 Inches
Power Type
Electric
