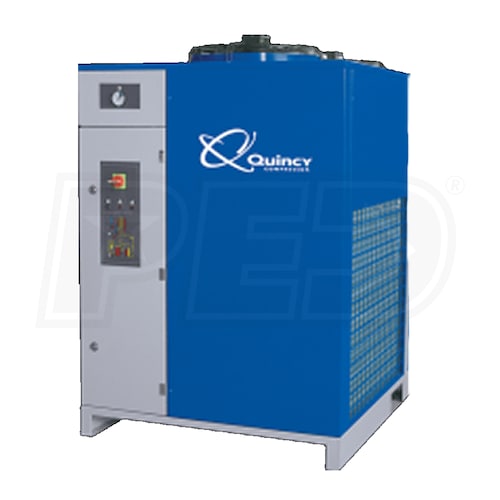

Quincy QPNC 750 3" Non-Cycling Refrigerated Air Dryer (750 CFM) (460V 3-Phase)
Model:
4102003050
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Air Dryer CFM
750
- Refrigerated Non-Cycling Dryer
- Best suited for small systems with fairly constant loads
- Purifies compressed air by chilling to condense moisture
- Condensate is drained, carrying oil & dirt away from the air
- 2-Stage Heat Exchanger
- Maintains consistent dew points
- Freeze-ups prevented & optimum performance maintained
- Automatic Zero Loss Drain
- Prevents build up of oil, dirt & moisture in compressed air
- The most energy efficient drain
- Environmentally Safe Refrigerant (R404A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential
- Simple Control Panel
- Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
- Also shows a diagram of the system flow
- Versatile
- Handles 750 CFM at 100 PSI; 188 PSI maximum
- Uses 460V-3 phase power; 3" NPT-F connector in & out
- Quincy Part #: - 4102003050 - Quincy Model #: QPNC 750
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4102003050
Air Dryer
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
750
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
120
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
110
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3"
Outlet Fittings
3"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Weight
717 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
41 Inches
Product Width
41 Inches
Product Height
61 Inches
Power Type
Electric
Reviews
Quincy 4102003050 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

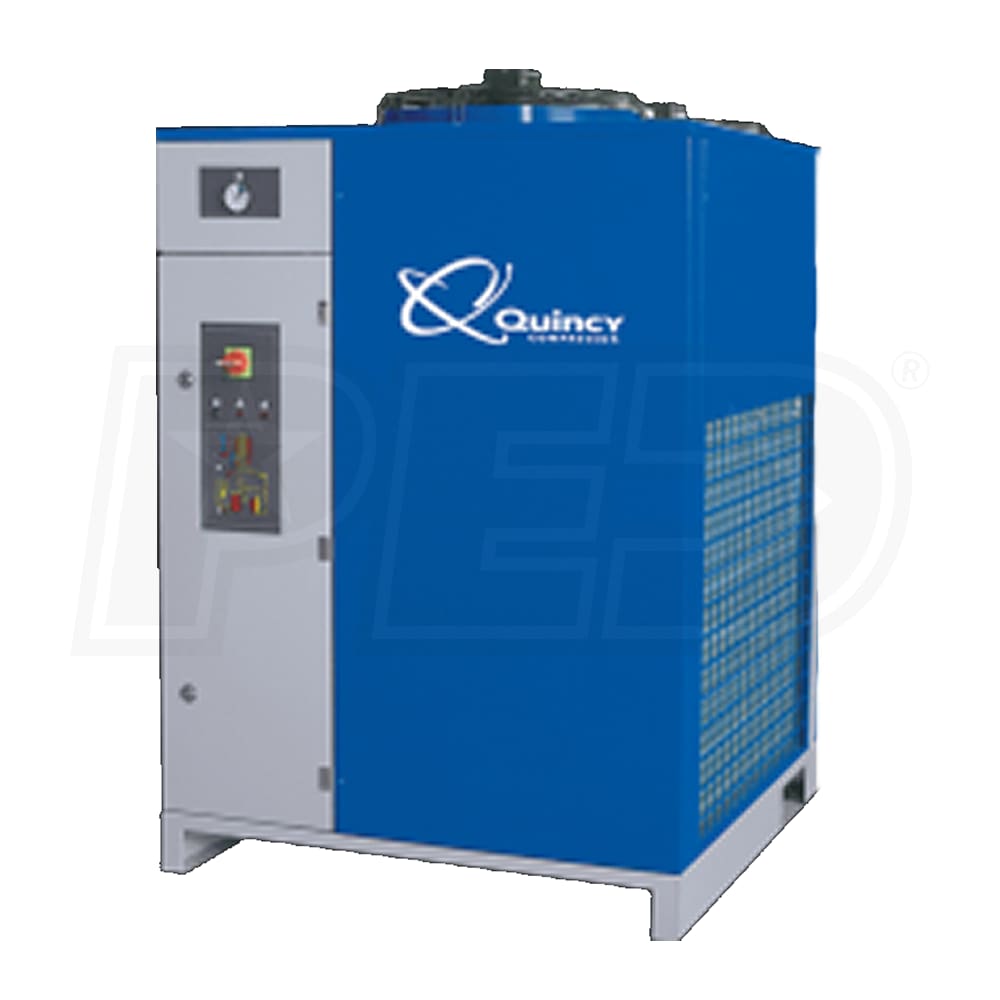

Quincy QPNC 750 3" Non-Cycling Refrigerated Air Dryer (750 CFM) (460V 3-Phase)
