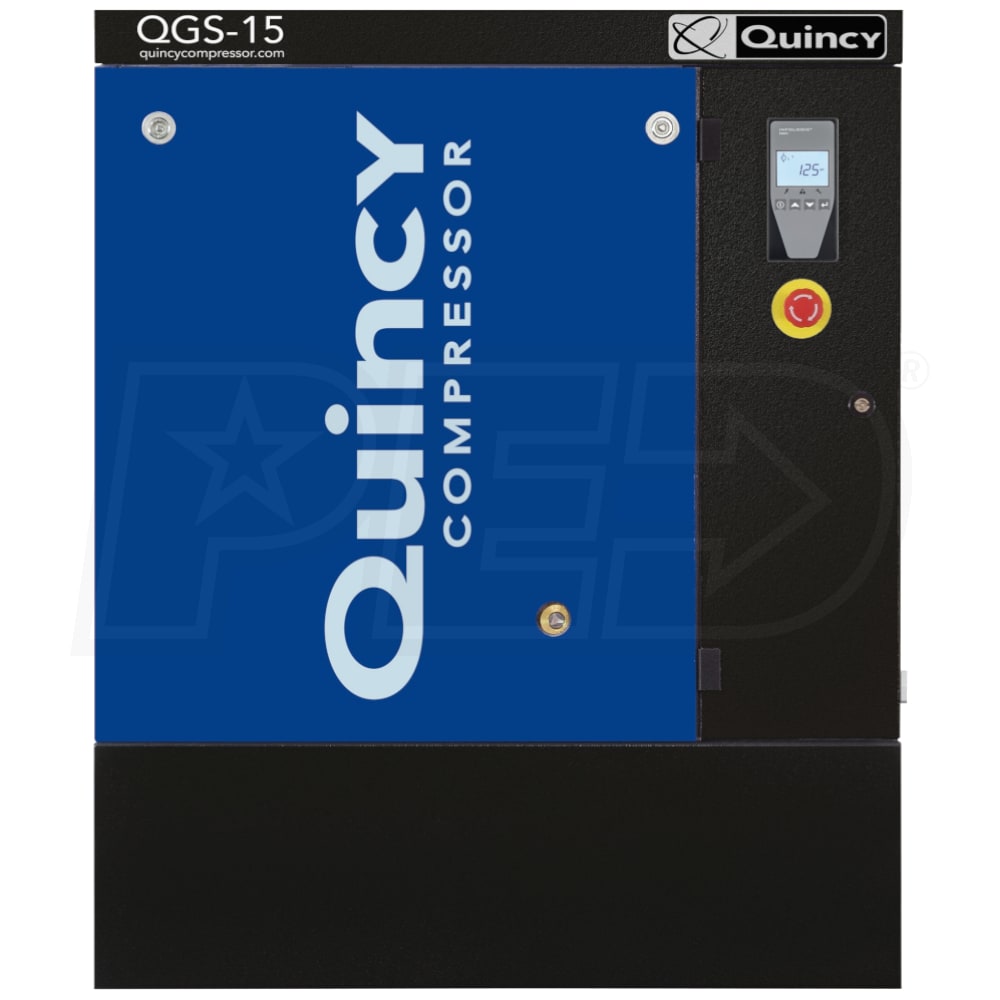

Quincy QGS 15-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)

Model:

4152021940

Write A Review
$9,699.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Quincy QGS 15-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)
Quincy QGS 15-HP Tankless Rotary Screw Air Compressor (208/230/460V 3-Phase)
Model: 4152021940
$9,699.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

54.9

Tank Size

0

  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Compact, Modern Turn-Key Design
  • Small footprint allows for installation flexibility
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 54.9 CFM at 125 PSI
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Auto-Dual Operation
  • Customize timed shut down settings for your operation
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 3-phase unit is capable of running on 208/230-460 voltage
  • (IP 55 wash down) Minimum operating temperature 36° F
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy maintenance products
  • Quincy Part #: 4152021940 - Quincy Model #: QGS 15 HPB-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152021940
specs product image PID-104160
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
54.9
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
407 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
34 Inches
Product Width
26 Inches
Product Height
39 Inches
Power Type
Electric
UPC
791326011817
