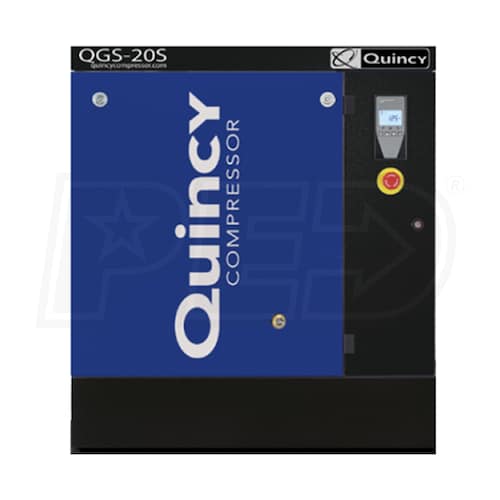

Quincy QGS 20-HP Tankless Rotary Screw Value Package Air Compressor (208/230/460V 3-Phase)

Model:

4152021944

Write A Review
$11,499.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Quincy QGS 20-HP Tankless Rotary Screw Value Package Air Compressor (208/230/460V 3-Phase)
Quincy QGS 20-HP Tankless Rotary Screw Value Package Air Compressor (208/230/460V 3-Phase)
Model: 4152021944
$11,499.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

60.8

Tank Size

0

  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power at 63 dBA
  • InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20-30 HP units
  • Convenient Display Panel
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display
  • Motor start limit; max & min temperature default settings
  • Completely Programmable Auto Restart & Remote Start/Stop
  • Wye-Delta reduced voltage start for industrial applications
  • Continuous 100% Duty Cycle
  • Runs your application quietly & efficiently 24/7
  • Ideal for most applications; 60.8 CFM at 125 PSI; 36°F min temp
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects components
  • TEFC Electric Motor (IP 55 Wash Down)
  • 3-phase unit is capable of running on 208/230-460 voltage
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy maintenance products
  • Quincy Part #: 4152021944 - Quincy Model #: QGS 20S BM-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152021944
specs product image PID-104161
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
60.8
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
893 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011824
