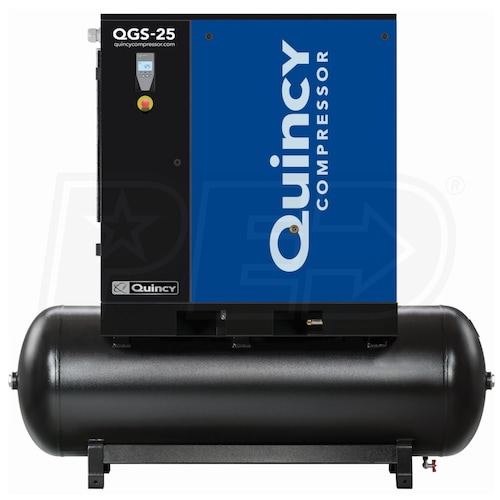

Quincy QGS 25-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)

Model:

4152026529

Write A Review
$19,599.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Quincy QGS 25-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)
Quincy QGS 25-HP 132-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)
Model: 4152026529
$19,599.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

99.4

Tank Size

132



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
  • 100% continuous duty cycle with oil-injected twin screw pump
  • Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component
  • Infologic2 Basic Microprocessor Controller
  • Network up to six QGS 20 to 30 HP units
  • Completely programmable auto-restart and remote start/stop
  • Convenient Display Panel
  • Includes auto run, general alarm and power-on LED's
  • Pressure display, temperature and dewpoint display
  • Motor start limit; max & min temperature default settings
  • Quiet Operation
  • Full sound enclosure for extra low noise levels
  • Rotary screw technology provides a quiet solution and greatly reduces vibration
  • TEFC Electric Motor (IP 55 Wash Down)
  • Protects the motor from dirt, moisture and weather
  • Wye-Delta reduced voltage start for industrial applications
  • Increased Maintenance Simplicity
  • Fast and easy out of box installation
  • Hinged doors and detachable panels for quick access
  • Constant view fluid monitoring and spin-on fluid filter simplifies maintenance
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start-Up
  • Covers airend, motor, separator reservoir and cooler/heat exchanger
  • Quincy Part #: 4152026529 - Quincy Model #: QGS 25 TM-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152026529
specs product image PID-115511
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
25
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
99.4
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1201 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
74 Inches
Product Width
30.7 Inches
Product Height
72.2 Inches
Power Type
Electric
