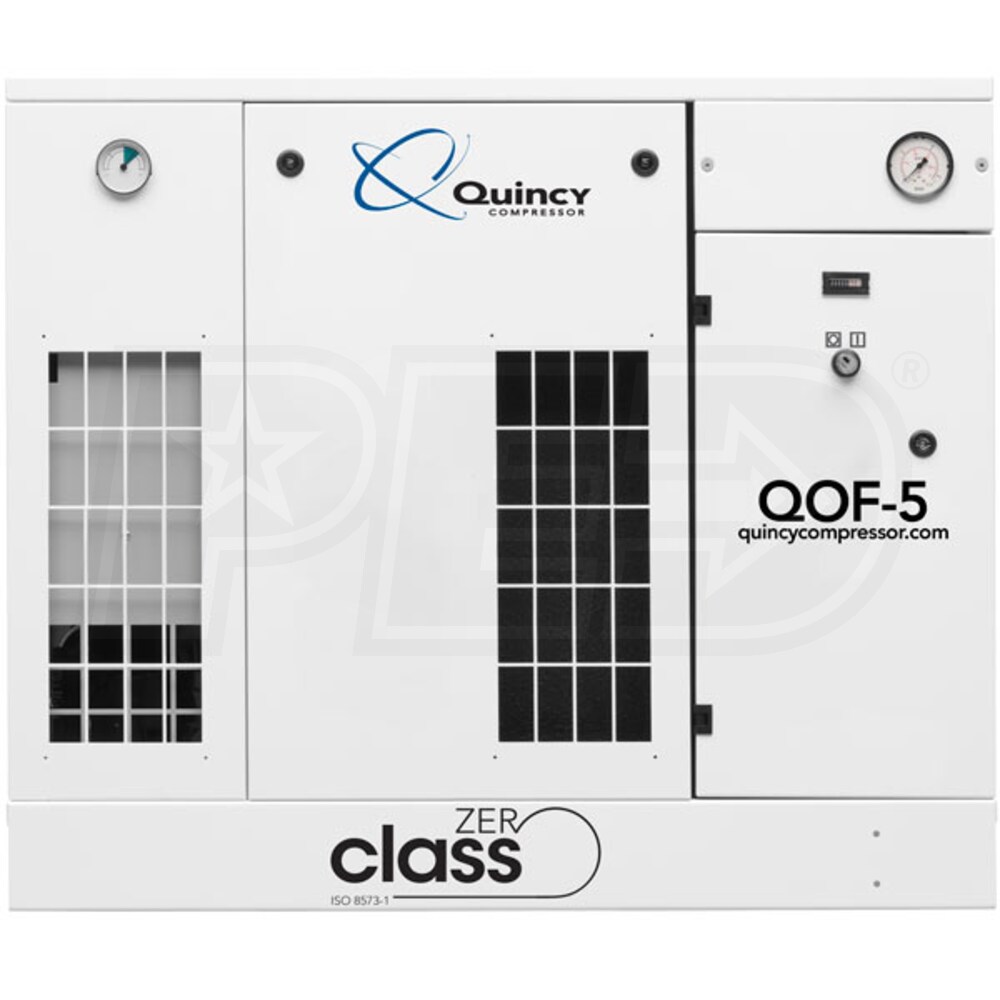

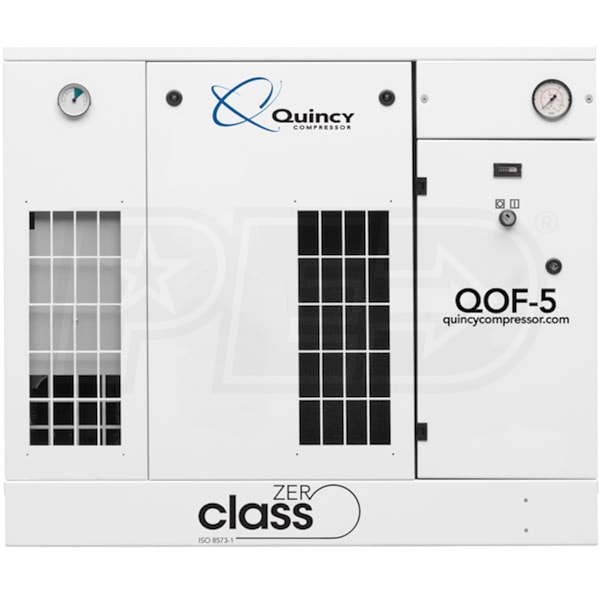

Quincy QOF 5-HP Oil-Free Tankless Scroll Air Compressor (208/230/460V 3-Phase 116 PSI)
Model:
8153613339
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
14
- Class Zero Oil-Free Scroll Compressor (Not For Medical Use)
- Produces 100% oil-free air certified to ISO 8573-1 standard
- Ideal for pharmaceutical, food, lab, textile, etc. production
- Efficient 2-Spiral Orbital Motion
- Compresses air without touching; needs no lubrication
- Delivers up to 14 CFM at 116 CFM at only 58 dBA
- High Efficiency Premium Motor
- IE3/NEMA motor is robust & easy to service
- Cool Canopy Enclosure
- Vertical design increases ventilation, lowers outlet temperatures
- Allows better performance & easy maintenance access
- Electromagnetic Control
- Increases efficiency & reliability
- Automatically starts/stops when working pressure is reached
- 5-HP Scroll Module
- Small footprint allows optimal compressor placement
- Tri-voltage, 3-phase unit can be wired for your system
- Oil-Free Reduces The Cost Of Ownership
- No oil filter refills to replace or oil filter maintenance costs
- No extra energy costs from pressure drop across oil filters
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
8153613339
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
57
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
116 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
116 PSI
Pump Type
Scroll Compressor
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Overview
Weight
293 Pounds
Product Length
30 Inches
Product Width
26 Inches
Product Height
57 Inches
