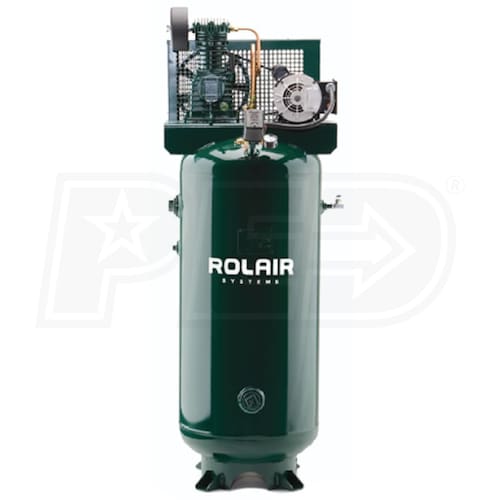

Rolair 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)

Model:

V3160K18

Write A Review
$1,945.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Rolair 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Rolair 3-HP 60-Gallon Single-Stage Air Compressor (230V 1-Phase)
Model: V3160K18
$1,945.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

11.9

Tank Size

60

  • 3 HP Air Compressor Runs On 230V Single Phase Power
  • Easy to wire into your shop or garage

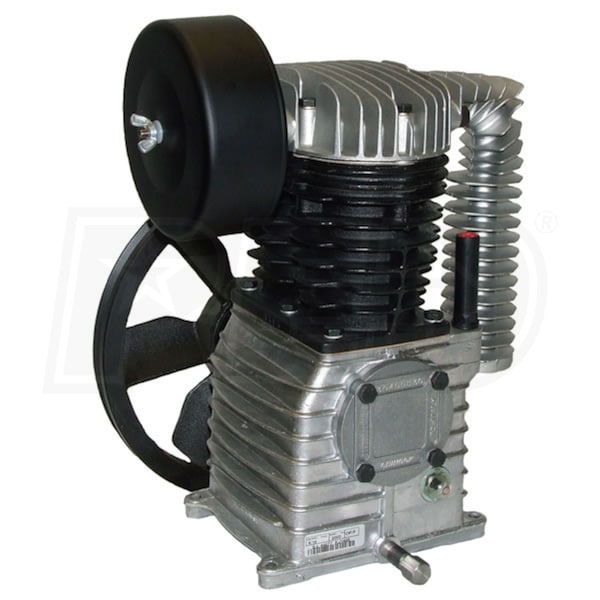

  • Single Stage, 1100 RPM Splash Lubricated Pump
  • Cast iron cylinders for durability
  • Aluminum head & crankcase for faster heat dissipation
  • Low RPMs ensure long life & trouble free performance
  • Swedish Lammelar Reed Valves
  • High quality for best performance & reliability
  • Start/Stop Operation
  • Pressure switch can be set for 110-135 PSI settings
  • Automatic Unloading Device
  • Load-less starts save wear & tear on your unit
  • Easy-To-Read Pressure Gauge
  • Marked 0-200 PSI in 5lb. graduations
  • Intake Filter/Silencer
  • Replaceable element ensures quiet operation
  • Totally Enclosed Steel Belt Guard
  • Protects the belt drive and you
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

V3160K18
specs product image PID-9126
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.9
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
265 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
24 Inches
Product Width
20 Inches
Product Height
70 Inches
Power Type
Electric
