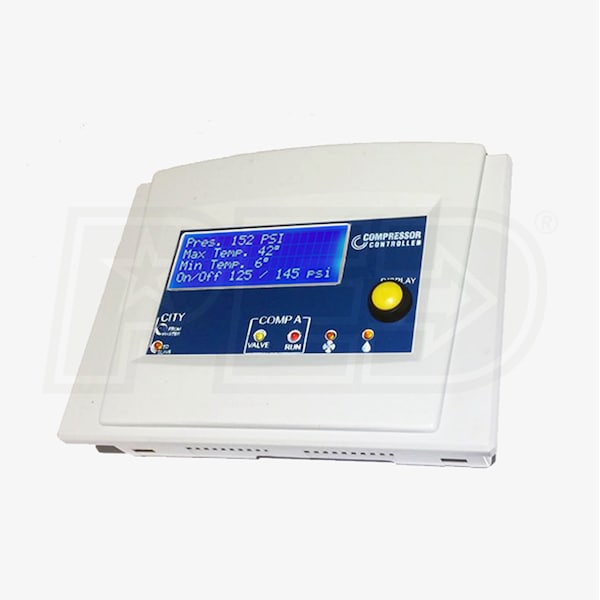

R2 CCR200 Compressor Controller For Duplex Air Compressors

Model:

CCR200

Write A Review
$967.21
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

R2 CCR200 Compressor Controller For Duplex Air Compressors
R2 CCR200 Compressor Controller For Duplex Air Compressors
Model: CCR200
$967.21
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    The Compressor Controller is a state-of-the-art machine learning control system for reciprocating air compressors that automates operation and saves thousands of dollars in lifetime operating costs while delivering better air quality. With a flexible form factor, it is easily adaptable to almost any reciprocating air compressor. It combines Real-Time environmental and operational sensing into a model that drives the control of the compressor which immediately improves operation to continuous peak performance, self-adjusting in real time to the changing environmental conditions for the ultimate in work consistency.
  • Compressor-City: Linking Multiple Compressors Together
  • Seamless interconnection of multiple reciprocating compressors of different types, sizes and brands as a single system
  • Automatically prepares and ramps up assets up or down based on air demand
  • Offers optimal energy footprint during transition without human interaction
  • Compressor Pump Smart Start
  • Reduces startup current by as much as 20%, lowering demand charges
  • Prevents high humidity air intake
  • Guards against air/oil contamination
  • Precision time, environmental and operational digital pump alternator
  • Intelligent Moisture Control
  • Calculates condensate formation in real time based on environmental conditions during pumping for awareness on when to drain
  • Drains only the condensate when present, preventing unnecessary air waste/pump cycling
  • Automatic Overheat Protection
  • Detects when pump is overworked and overheated in operation
  • Preventatively stops the pump operation to prevent failure
  • Air-Line Rupture Detection
  • Continuously monitors and alerts for air leaks
  • Detects air-line rupture
  • Stops pump and signals alert to prevent over-cycling and burnout
  • Digital Management Of Pressure Band Gap
  • Digitally maintains pressure band gap
  • Maintains pressure band gap through all environmental conditions
  • Compressed Air Usage Meter
  • Maintains lifetime pump cycle counter for number of total cycles since installation
  • Maintains lifetime hour counter for number of total hours of pump operation since installation
  • The R2 Duplex Standard Kit includes:
  • 1x: R2 Duplex Compressor Controller
  • 1x: Pressure sensor 1/4
  • 1x: Temperature / humidity sensor
  • 1x: Compressor temperature bolt-on sensor
  • 1x: Buzzer
  • 1x: Power supply 12v out / 95 - 277vac in
  • R2 CCR200 Only Compatible with Duplex Air Compressors
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

CCR200
specs product image PID-83384
General Information
Product Category
Air Compressor Maintenance Kits
Overview
Product Category
Air Compressor Maintenance Kits
Weight
1.5 Pounds
Consumer Warranty
1 Year

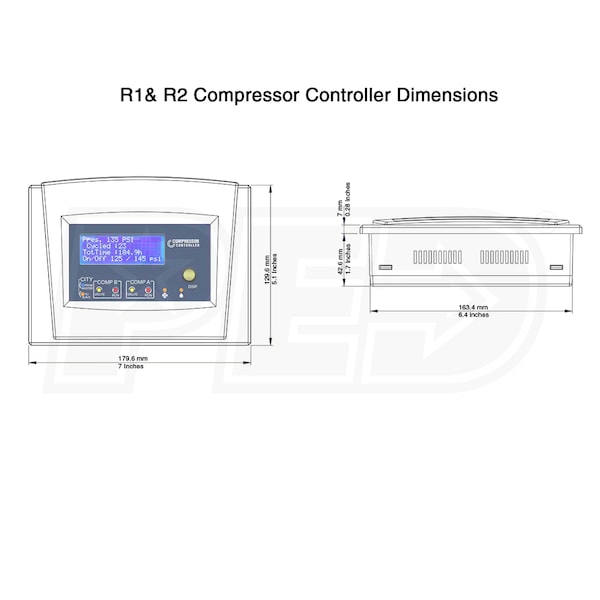

Product Length
2.3 Inches
Product Width
7.1 Inches
Product Height
5.4 Inches
Additional Model Numbers

R2DUPLEX, CCR200
