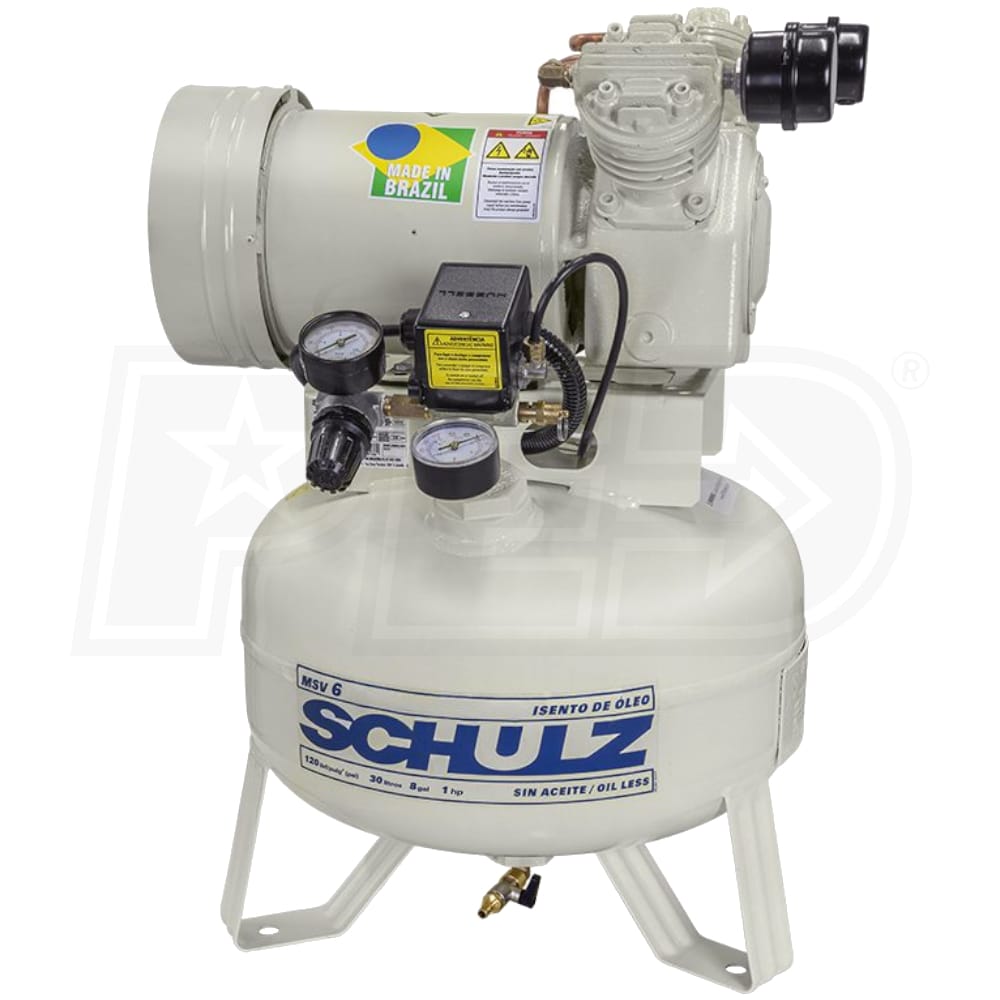

Schulz MSV 6/08 - 1-HP 8-Gallon Oil Free Pancake Air Compressor (115/230V Single-Phase)

Model:

931.1208-0

Write A Review
$994.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz MSV 6/08 - 1-HP 8-Gallon Oil Free Pancake Air Compressor (115/230V Single-Phase)
Schulz MSV 6/08 - 1-HP 8-Gallon Oil Free Pancake Air Compressor (115/230V Single-Phase)
Model: 931.1208-0
$994.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Single Stage 1-Phase

CFM

2.1

Tank Size

8

  • Schulz MSV 6/08 - 1-HP 8-Gallon Oil Free Air Compressor
  • Ideal for medical and dental applications
  • 1-HP Direct Drive Motor (115/230V)
  • Energy-efficient, fan-cooled, direct-drive design
  • Oil-Free, Cast Iron, Dual Piston Pump System
  • Low 1730 RPM operation for decreased sound levels
  • 2.1 CFM @ 120 PSI; 120 Max PSI
  • 8-Gallon Steel Air Tank
  • Internal antibacterial powder coating for added protection
  • ASME Safety valve and tank drain
  • Built-In Regulator & Pressure Switch
  • Make this compressor easy to operate
  • Dual Gauges
  • Easily check regulator and tank pressure
  • Intake Air Filter
  • Helps provide cleaner air to the compressor
  • Epoxy Coated Construction
  • Helps prevent pump and tank corrosion
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

931.1208-0
specs product image PID-149196
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115/240 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
12.4
Recommended Breaker
20 Amp Breaker
Engine
HP
1
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.1
CFM Rated @
120 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
8 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
92 Pounds
Certification
ASME, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
18 Inches
Product Width
19 Inches
Product Height
25 Inches
Power Type
Electric
UPC
7896893465780
